ASRock Intel H670 Steel Legend PCIe 5.0 ATX Motherboard
ASRock H670 Steel Legend, Intel H670, S 1700, DDR4, PCIe 5.0, SATA3, 3x M.2, Dragon 2.5GbE, USB 3.2 Gen 2, ATX
|Instalment Rate:||5.9% p.a. (fixed)|
|Cost of purchase:||£169.99|
|Total inc. interest:||£175.32|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

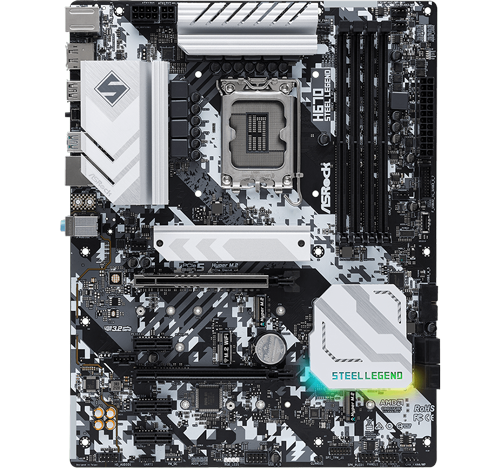

ASRock H670 Steel Legend PCIe 5.0 Intel 12th Generation ATX Motherboard
Tough as steel, true legend Introducing the new H670 series of motherboards from ASRock. The H670 Steel Legend PCIe 5.0 supports 12th Generation Intel® Core™ processors. Experience a powerful performance, DDR4 memory and optimized power phase design. The innovative design of the H670 Steel Legend has built-in RGB headers, users can customize and synchronize RGB LED devices with Polychrome RGB Sync-certified accessories. Underneath its appearance lie plentiful powerful features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers.
Please note: This motherboard is compatible with Intel® Socket LGA1700 for 12th Gen Intel® Core™ Processors.
*Supports Intel® Hybrid Technology.
**Supports Intel® Turbo Boost Max 3.0 Technology.

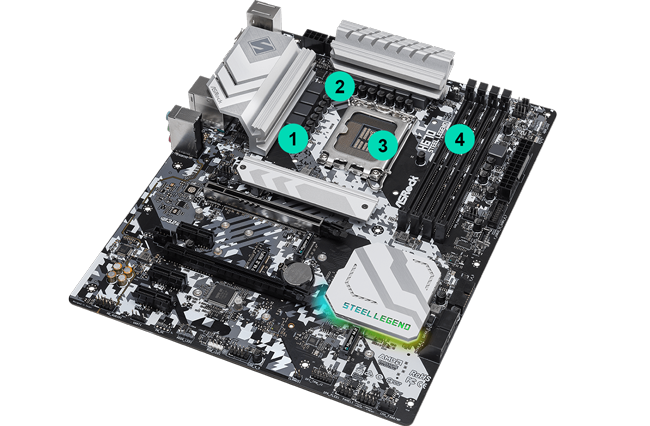

Optimized VRM Design
Supports the latest memory modules Featuring sturdy components and completely smooth power delivery to the CPU. Compared to traditional discrete MOSFETs, DR.MOS intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking!
1. SPS (Smart Power Stage)
2. 9 Power Phase Design
3. Supports 12th Gen Intel® Core™ Processors
4. Supports DDR4 5000MHz (OC)

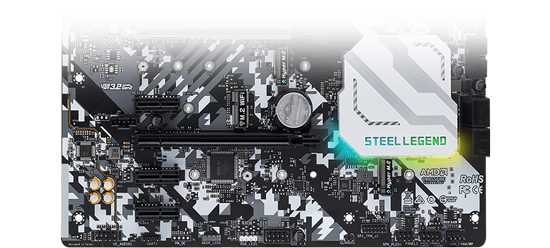

How Sound is Meant to be Heard
Incredible Nahimic Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.CLICK HERE TO FIND OUT MORE >
Superb Connectivity and Lightning Gaming Ports
USB Ports in total: (8 Rear, 4 Front) This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. Aimed for die hard gamers and enthusiasts!
Polychrome RGB Illumination
Light up your rig
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

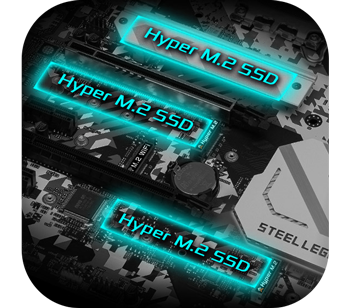

High Speed M.2 Solution
PCIe 4.0 for SSD This motherboard is capable of accommodating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

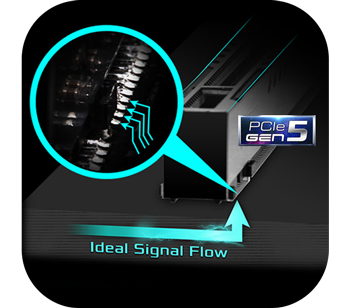

PCIe 5.0 and Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Ultra-Fast Transfer Rate

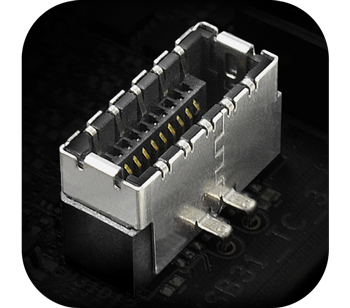

Front USB 3.2 Gen2x2 Type-C The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
|Edition||H670 Steel Legend|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB|
|Audio||Realtek ALC897 7.1 HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16)|
|NVIDIA SLI Support||N/A|
|AMD CrossFire Support||N/A|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||
|RAID Support via|
|Storage Mode Support||
|Network Interface Type||Wired 2.5 Gigabit LAN (10/100/1000/2500)|
|Network Chip/Modules||1 x Dragon RTL8125BG (2.5GbE LAN)|

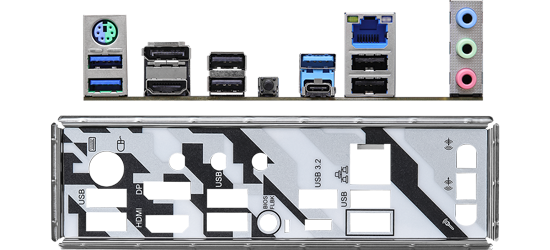

|Rear I/O Connectors||
|Board Dimensions||305 x 244 mm|
