Scan code: LN138002 Manufacturer code: 90-MXBJJ0-A0UAYZ

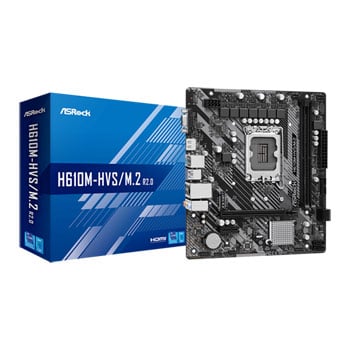

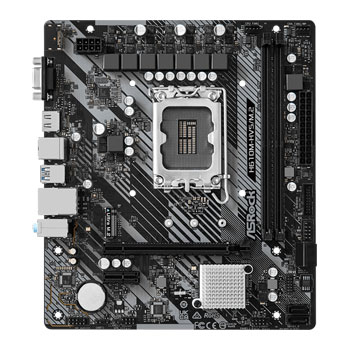

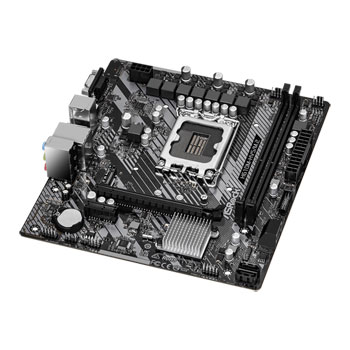

ASRock Intel H610M-HVS/M.2 R2.0 Micro-ATX Motherboard

ASRock H610M-HVS/M.2 R2.0, Intel H610, S 1700, DDR4, SATA3, PCIe 4.0, 1x M.2, GbE, USB 3.2 Gen1, Micro-ATX

Thumbnail 1 : ASRock Intel H610M-HVS/M.2 R2.0 Micro-ATX Motherboard Thumbnail 2 : ASRock Intel H610M-HVS/M.2 R2.0 Micro-ATX Motherboard Thumbnail 3 : ASRock Intel H610M-HVS/M.2 R2.0 Micro-ATX Motherboard Thumbnail 4 : ASRock Intel H610M-HVS/M.2 R2.0 Micro-ATX Motherboard
Scan code: LN138002 Manufacturer code: 90-MXBJJ0-A0UAYZ
Order now and get it tomorrow, Wed 29th May
£69.98
Get it Tomorrow, 29 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 29th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.


Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.


Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.


HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.


Premium Power Choke

Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.


Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.


Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Features

• Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700).
• 7 Phase Power Design.
• Supports DDR4 3200MHz.
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1.
• Graphics Output Options: HDMI, D-Sub.
• Realtek ALC897 7.1 CH HD Audio Codec.
• 4 SATA3.
• 1 Ultra M.2 (PCIe Gen3 x4).
• 4 USB 3.2 Gen1 (2 Rear, 2 Front).
• 6 USB 2.0 (4 Rear, 2 Front).
• Realtek Gigabit LAN.

Specifications
Core Specifications
Edition H610M-HVS/M.2 R2.0
Form Factor MicroATX
CPU Socket 1700
Chipset Intel H610
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 3200
Max. Memory Capacity 64GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support NVMe Boot (via M.2 PCIe Slot)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Audio Header
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)

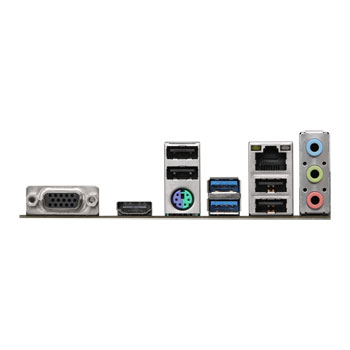

Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x Front Speaker Out
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 220 x 193 mm
Note
Additional Information
Scan Code LN138002
Model Number 90-MXBJJ0-A0UAYZ
GTIN 4710483939914
