ASRock H610M-HVS PCIe 4.0 mATX Motherboard

ASRock H610M-HVS, Intel H610, S 1700, DDR4, SATA3, PCIe 4.0, Realtek GbE, USB 3.2 Gen1 A, Micro-ATX

Thumbnail 1 : ASRock H610M-HVS PCIe 4.0 mATX Motherboard Thumbnail 2 : ASRock H610M-HVS PCIe 4.0 mATX Motherboard Thumbnail 3 : ASRock H610M-HVS PCIe 4.0 mATX Motherboard Thumbnail 4 : ASRock H610M-HVS PCIe 4.0 mATX Motherboard
Scan code: LN122922 Manufacturer code: 90-MXBHT0-A0UAYZ
£72.98Item currently awaiting an ETA
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

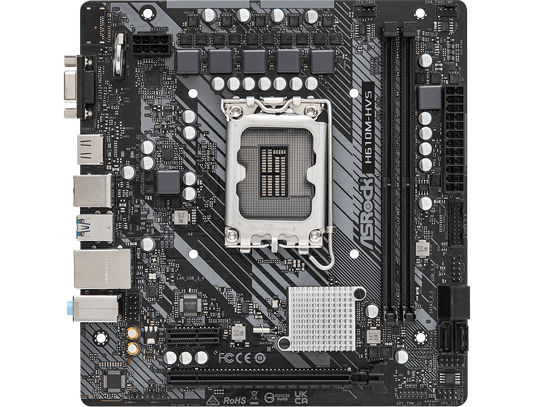

ASRock H610M-HVS Intel 12th Generation Micro-ATX Motherboard

ASRock H610M-HVS Micro-ATX Motherboard

rock-solid quality Introducing the new H610 series of motherboards from ASRock. The H610M-HVS supports 12th Generation Intel® Core™ processors. Experience a powerful performance, DDR4 memory, PCIe 4.0 and optimized power phase design. The innovative design of the H610M-HVS has built-in Intel® Gigabit LAN. Underneath its appearance lie plentiful powerful features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers.

Please note: This motherboard is compatible with Intel® Socket LGA1700 for 12th Gen Intel® Core™ Processors.
*Supports Intel® Hybrid Technology.
**Supports Intel® Turbo Boost Max 3.0 Technology.

Intel H610Chipset

LGA 1700CPU Socket

Intel 12th GenerationCompatible Processors

Micro-ATXForm Factor

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.


Optimized Powerful Design


Supports the latest memory modules Featuring sturdy components and completely smooth power delivery to the CPU. Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved voltage to the motherboard.

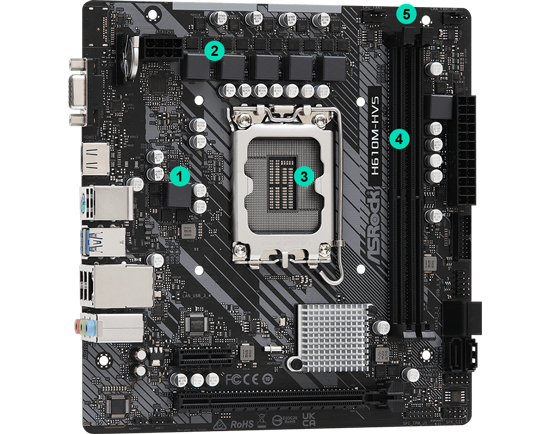

1. Premium Alloy Chokes
2. 5 Power Phase Design
3. Supports 12th Gen Intel® Core™ Processors
4. Supports DDR4 3200MHz Memory
5. High Density Glass Fabric PCB

Superb Connectivity, Convenient USB Ports


with Intel® LAN This motherboard has 6 USB 2.0 (4 Rear, 2 Front), 4 USB 3.2 Gen1 (2 Rear, 2 Front). Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users. Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.

Core Specifications
Edition H610M-HVS
Form Factor MicroATX
CPU Socket 1700
Chipset Intel H610
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 3200
Max. Memory Capacity 64GB
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Chassis Water Pump/Fan Connector
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 4 x SATA III - 6Gb/s
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)

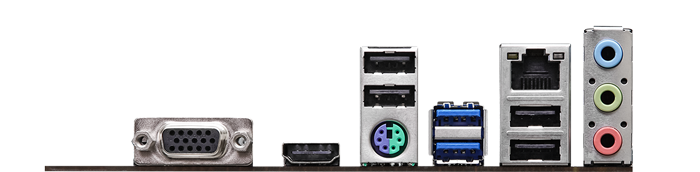

Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 197 x 188 mm
Additional Information
Scan Code LN122922
Model Number 90-MXBHT0-A0UAYZ
GTIN 4710483936678

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
24 months
