Scan code: LN114133 Manufacturer code: 90-MXBFR0-A0UAYZ

ASRock Intel H570M PRO4 mATX Motherboard

ASRock H570M PRO4, Intel H570, S 1200, DDR4, PCIe 4.0, SATA3, 2x M.2, GbE, USB 3.2 Gen2, Micro-ATX

Thumbnail 1 : ASRock Intel H570M PRO4 mATX Motherboard Thumbnail 2 : ASRock Intel H570M PRO4 mATX Motherboard Thumbnail 3 : ASRock Intel H570M PRO4 mATX Motherboard Thumbnail 4 : ASRock Intel H570M PRO4 mATX Motherboard
Scan code: LN114133 Manufacturer code: 90-MXBFR0-A0UAYZ
£104.99Item currently awaiting an ETA
Pre order
From £9.43 / month (APR 14.9%)
Monthly Payment: £9.43
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £104.99
Total inc. interest: £113.10
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

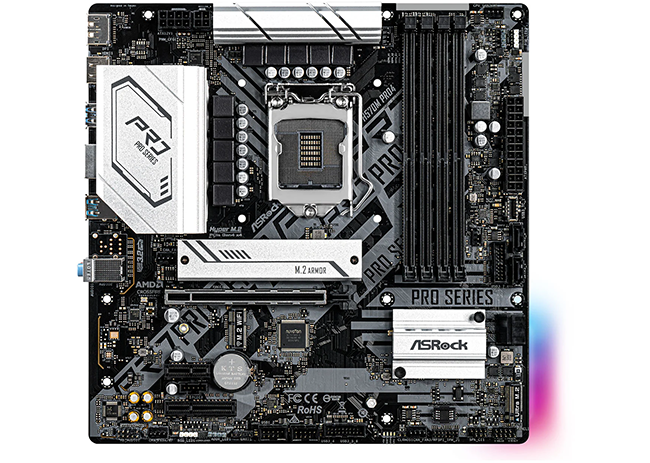

ASRock H570M PRO4 Intel Micro-ATX Motherboard

ASRock Z590

LEGENDARY PERFORMANCE, EXTREME DURABILITY The ASRock H570M PRO4 delivers unbeatable durability and stunning aesthetics. Built with the most demanding specs and features, the Steel Legend aims at both daily users and seasoned PC enthusiasts. Utilise a strong array of materials and components to ensure stable and reliable performance. Built for Intel Core processors, the H570 also supports DDR4 4800MHz (OC) memory. Enjoy your custom light show with ASRock Polychrome RGB and get connected and synced to various LED RGB devices. The durability and protection systems the H570 offers include a full Coverage M.2 heatsink which improves heat dissipation, also for durability there are Solid Steel PCIe Slots which provide support for PCIe components and prevent shearing. Get super fast and reliable connections with the new Dual USB 3.2 Gen2 ports to support your next generation devices.

Intel® H570Chipset

Intel® Core™ 11th GenCompatible CPU

Micro-ATXForm Factor

Built for Power

back

8 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Loading Times are a thing of the Past

4K Recording

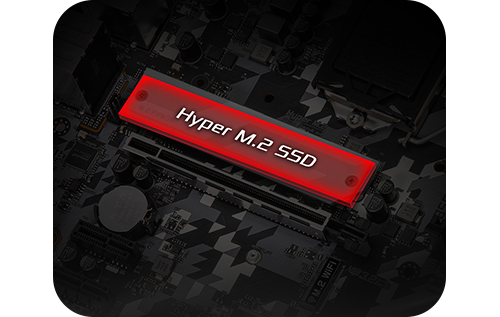

PCIe 4.0 High Speed M.2 SolutionThis motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Blazing Fast Connectivity

back

USB 3.2 Gen2x2 Type-CThe latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

The Finest Connectivity Performance

back

M.2 (KEY E) For WiFiBesides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Rule Lighting your Way

4K Recording

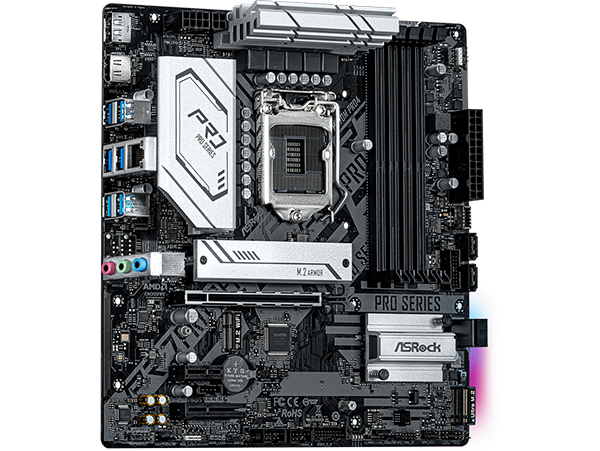

POLYCHROME RGBASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.

*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Surround yourself in Stunning Sound

4K Recording

Nahimic AudioWhether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Additional Features of your ASRock Motherboard

down

Full Spike ProtectionSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

down

Live Update & APP ShopASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Specifications
Core Specifications
Edition H570M Pro4
Form Factor MicroATX
CPU Socket 1200
Chipset Intel H570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 4600+(OC)
  • DDR4 - 4800(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.0
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-80, PCIe Gen3/SATA
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x4
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Audio Header
  • 2 x RGB Header
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45 with LED
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN114133
Model Number 90-MXBFR0-A0UAYZ
GTIN 4710483933905
