Scan code: LN118256 Manufacturer code: 90-MXBGL0-A0UAYZ

Asrock H510 Pro BTC+ Mining Motherboard

Asrock H510 Pro BTC+, Intel H510, S 1200, DDR4, 6x PCIe 3.0 x16, SATA3, M.2, GbE, USB 3.2 Gen1 , HDMI

Thumbnail 1 : Asrock H510 Pro BTC+ Mining Motherboard Thumbnail 2 : Asrock H510 Pro BTC+ Mining Motherboard Thumbnail 3 : Asrock H510 Pro BTC+ Mining Motherboard Thumbnail 4 : Asrock H510 Pro BTC+ Mining Motherboard
Scan code: LN118256 Manufacturer code: 90-MXBGL0-A0UAYZ
£189.98
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
From £17.06 / month (APR 14.9%)
Monthly Payment: £17.06
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £189.98
Total inc. interest: £204.66
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

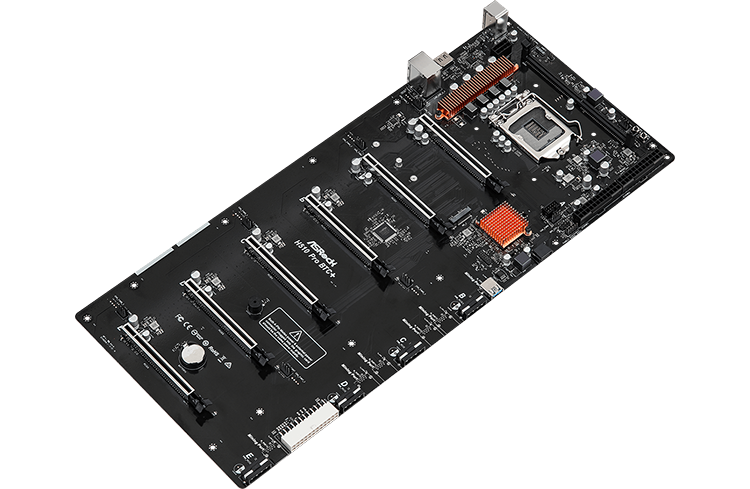

ASRock H510 Pro BTC+ Intel ATX Mining Motherboard

ASRock Zh510

LEGENDARY PERFORMANCE, EXTREME DURABILITY This motherboard is specifically designed for mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The abundant onboard PCIe slots guarantee fast Crypto mining, while the additional power connectors provide advanced system stability while mining. This motherboard comes fully equipped with six PCI Express 3.0 x16 slots and a USB mining port for you to install up to Seven graphics cards. There is also an extra 24-pin ATX connector for easy multiple power supply setups. You also get a fully independant power rail which is ideal for more flexible power management to PCIe slots. Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Intel® H510Chipset

Intel® Core™ 10th&11th GenCompatible CPU

6 x PCI Express 3.0 x16Slots

Built for Power

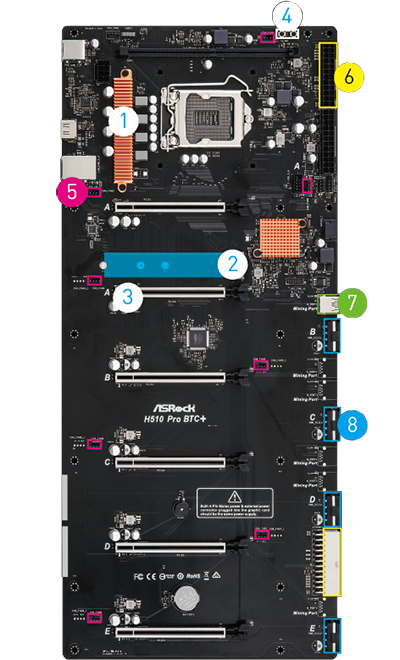

back

1. 4 Power Phase Design

2. Supports SATA Type M.2 SSD

3. Riser Kit Free & Steel Slot Design

4. Onboard PWR On/Reset Button

5. 8 Fan Headers for System Fans

6. 2 Extra 24-pin ATX Power Connector for Easy Multiple Power Supply Setup

7. Onboard USB Type PCIe x1 Minit Port for Even More Graphics Cards Setup

8. Fully Independant Power Rail

Smart PCIe State Detection

4K Recording

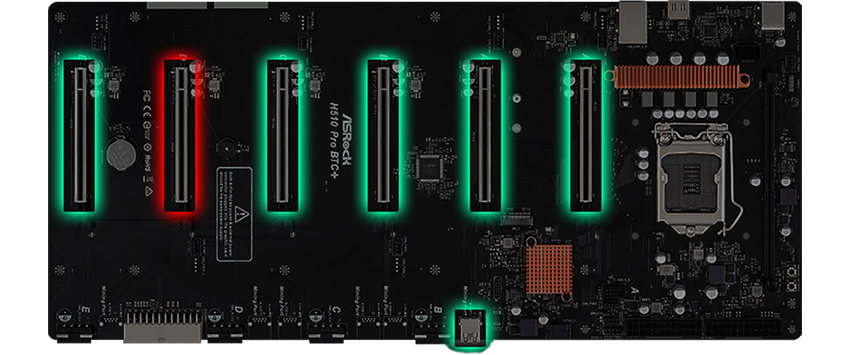

USB Type PCIe x1 Mining PortsThis motherboard has included a smart way to show the status of every graphics card. While the system is booting, the Power-On, Self-Test (POST) screen will show the status of the graphics cards that were installed on the motherboard. There is also an onboard USB Type PCIe x1 mining ports for setting up even more graphics cards.

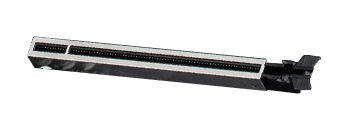

Durable PCI-e Steel Slots

back

Riser Kit FreeThe advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely. Install graphics cards directly on the motherboard without using riser kits to ensure ultimate stability.

Additional Features of your ASRock Motherboard

down

Full Spike ProtectionSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

down

Live Update & APP ShopASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Specifications
Core Specifications
Edition H510 Pro BTC+
Form Factor
CPU Socket 1200
Chipset Intel H510
RAM Memory Support
Memory Type DDR4
Memory Channel Single (1)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200
Max. Memory Capacity 32GB (1x32GB)
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots 1 x M.2, 22-80/110, SATA
SATA Support SATA3
RAID Support via
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
Internal I/O
  • 3 x 24-pin (Power)
  • 8 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 4 x 4-pin PCIe (Power)
  • 1 x 8-pin (Power)
  • 1 x Power button
  • 1 x Power LED / Speaker Header
  • 1 x Reset Button
  • 1 x System panel connector
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x HDMI
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 501 x 224 mm
Note
Additional Information
Scan Code LN118256
Model Number 90-MXBGL0-A0UAYZ
GTIN 4710483935220
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
