ASRock Intel H470 Pro4 Micro-ATX Motherboard

ASRock H470M Pro4 Motherboard, Intel H470, S 1200, DDR4, SATA3, Dual M.2, CrossFire, GbE, USB 3.2 Gen2 A+C, Micro-ATX

Thumbnail 1 : ASRock Intel H470 Pro4 Micro-ATX Motherboard Thumbnail 2 : ASRock Intel H470 Pro4 Micro-ATX Motherboard Thumbnail 3 : ASRock Intel H470 Pro4 Micro-ATX Motherboard Thumbnail 4 : ASRock Intel H470 Pro4 Micro-ATX Motherboard
Scan code: LN108061 Manufacturer code: 90-MXBCF0-A0UAYZ
£107.48
Order now and get it tomorrow, Wed 30th Sep
From £8.96 / month (APR 0%)
Monthly Payment: £8.96
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £107.48
Total inc. interest: £107.48
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 30th Sep to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

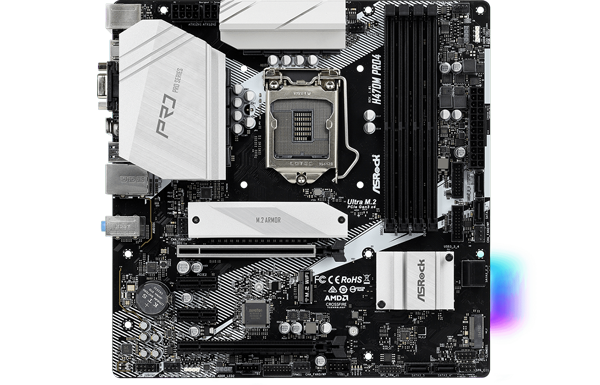

ASRock H470M Pro4 Intel 10th Gen Micro ATX Motherboard

ASRock H470M Pro4 Intel 10th Gen Micro ATX Motherboard

It’s time for H470 Motherboards Introducing the ASRock Intel H470M Pro4 Micro ATX motherboard, which supports 10th Gen and future generation Intel® Core™ Processors and AMD Quad CrossFireX™ and CrossFireX™. The H470M Pro4 boasts rapid transfer speed with Dual Ultra M.2 sockets which supports PCIe M.2 SSDs while the M.2 armor ensures the SSDs are protected. Improve your networking capabilities with Intel Gigabit LAN and users can choose wireless connections by an M.2 (Key E) slot. Includes a wealth of connectivity and USB ports to connect to your devices. Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately. Plus, you can enjoy stunning customization with Polychrome RGB Sync lighting.


Please note: H470 Motherboards are compatible with 10th Gen Intel Core™/ Pentium® CPUs for LGA 1200 socket. These Intel H470 Motherboards do not share the same socket as Intel's 300 Series Motherboards, they are electrically incompatible & will not work with 9th Gen Intel CPUs.

Intel H470Chipset

1200CPU Socket

10th Gen IntelCompatible CPUs

Micro ATXForm Factor

Rule your own Lighting Way

Design of ASRock H470M Pro4

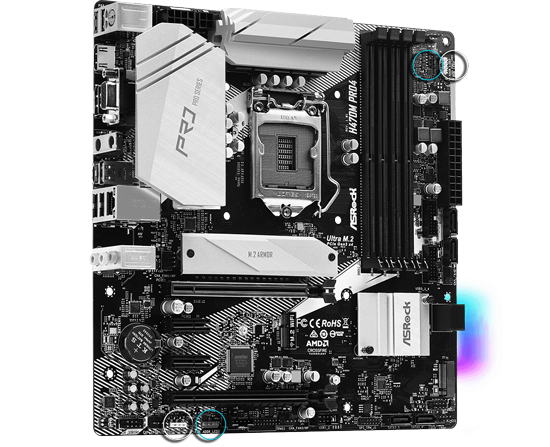

POLYCHROME RGB SYNC ASRock H470 Pro4 provides an outstanding performance and superior aesthetics that let you rule your own way, utilizing the comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Includes two Addressable RGB LED Headers and two RGB LED Headers. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.


*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Boosted for Maximum Networking Performance

networking connectivity

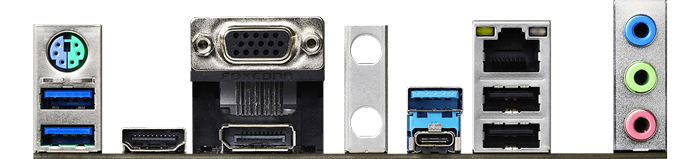

Intel LAN   |   DUAL USB 3.2 Gen2 (Type A & C)   |   6 USB 3.2 Gen1 (4 Front, 2 Rear) The ultimate network experience for users is delivered with Intel® LAN that provides the best throughput performance, lower CPU utilization, and enhanced stability. This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear I/O for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

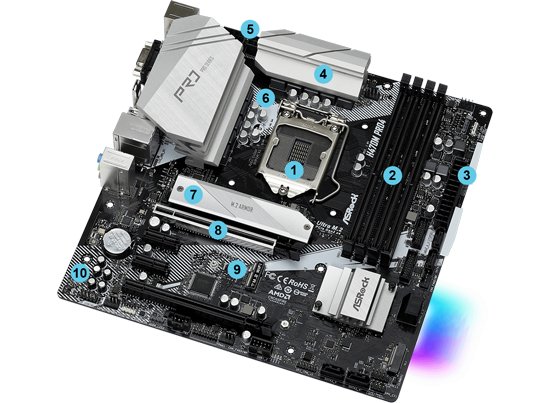

H470M Pro4 Component Breakdown

Design of ASRock

1. Supports 10th Gen and future generation Intel® Core™ Processors   |   2. Dual Channel DDR4 Memory Technology
3. 24Pin ATX Connector   |   4. XXL Alloy Heatsink   |   5. 8+4 Pin Connectors
6. Digi Power VRM / Premium 50A Power Choke / 9 Power Phase Design
7. M.2 Armor / 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen3 x2 & SATA3)
8. PCIe Steel Slot / 2 PCIe 3.0 x16, 2 PCIe 3.0 x1   |   9. M.2 (Key E) Slot for Wi-Fi (*Module is not included)
10. Premium Audio Package / Realtek ALC 1200 Codec / PCB Audio Shielding / Nahimic Audio

Equipped to Deliver an Extreme Audio Performance

ASRock audio

NAHIMIC AUDIO OFFERS true IMMERSION Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

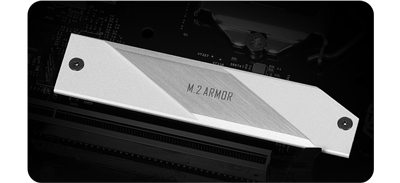

A Solid M.2 Solution and SSD Armor Protection

M.2 Heatsink Armor

Intel Optane Memory Ready Includes M.2 SSD protection and Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s. Compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

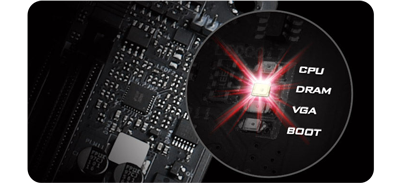

Post Status Checker

Post Checker

Efficient easy troubleshooting An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an easy way to identify the source of the problem.

ASRock Super Motherboard Alloy

power choke

PREMIUM 50A POWER CHOKEASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

sapphire black PCB

SAPPHIRE BLACK PCBPure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

fabric PCB

HIGH DENSITY GLASS FABRIC PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Support Software for your ASRock Motherboard

software

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

software

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

Specifications
Core Specifications
Edition H470M PRO4
Form Factor MicroATX
CPU Socket 1200
Chipset Intel H470
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.4
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-80, PCIe Gen3
  • 1 x M.2, 22-80, PCIe Gen3/SATA
  • 2 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Rapid Storage Technology 17
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x Wi-Fi antenna connector holes
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN108061
Model Number 90-MXBCF0-A0UAYZ
GTIN 4710483931208
