ASRock Intel H470 STEEL LEGEND ATX Motherboard

ASRock H470 STEEL LEGEND, Intel H470, S 1200, DDR4, SATA3, 3x M.2, 2-Way CrossFire, 2.5GbE LAN, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : ASRock Intel H470 STEEL LEGEND ATX Motherboard Thumbnail 2 : ASRock Intel H470 STEEL LEGEND ATX Motherboard Thumbnail 3 : ASRock Intel H470 STEEL LEGEND ATX Motherboard Thumbnail 4 : ASRock Intel H470 STEEL LEGEND ATX Motherboard
Scan code: LN108060 Manufacturer code: 90-MXBCK0-A0UAYZ
£142.99
Order now and get it tomorrow, Mon 28th Sep
From £11.92 / month (APR 0%)
Monthly Payment: £11.92
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £142.99
Total inc. interest: £142.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 28th Sep to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

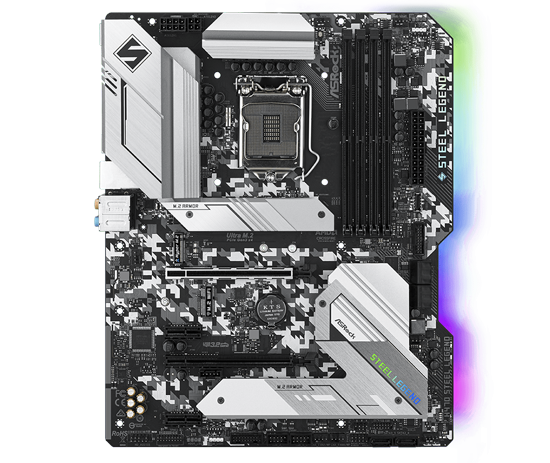

ASRock H470 Steel Legend Intel 10th Gen ATX Motherboard

ASRock H470 Steel Legend Intel 10th Gen ATX Motherboard

TOUGH AS STEEL, A TRUE LEGEND. Introducing the ASRock Intel H470 Steel Legend ATX motherboard, which supports 10th Gen and future generation Intel® Core™ Processors. The H470 Steel Legend boasts rapid transfer speed with Dual Ultra M.2 sockets which supports PCIe M.2 SSDs while the M.2 armors ensures the SSDs are working at their best. Improve your networking capabilities with Dragon LAN up to 2.5X the bandwidth and besides the onboard LAN port, users can choose wireless connections by an M.2 (Key E) slot. Includes a wealth of connectivity and USB ports to connect to your devices. Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately. Plus, you can enjoy stunning customization with Polychrome RGB Sync lighting.


Please note: H470 Motherboards are compatible with 10th Gen Intel Core™/ Pentium® CPUs for LGA 1200 socket. These Intel H470 Motherboards do not share the same socket as Intel's 300 Series Motherboards, they are electrically incompatible & will not work with 9th Gen Intel CPUs.

Intel H470Chipset

1200CPU Socket

10th Gen IntelCompatible CPUs

ATXForm Factor

Get Endless Performance Possibilities with Steel Style

Design of ASRock Steel Legend

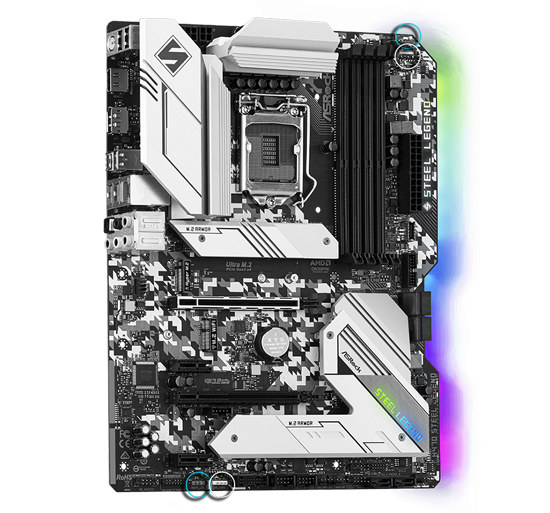

RULE YOUR OWN LIGHTING WAY WITH POLYCHROME RGB SYNC ASRock H470 Steel Legend provides an outstanding performance and superior aesthetics that let you rule your own way, utilizing the comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Includes two Addressable RGB LED Headers and two RGB LED Headers. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.


*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Boosted for Maximum Networking Performance

networking connectivity

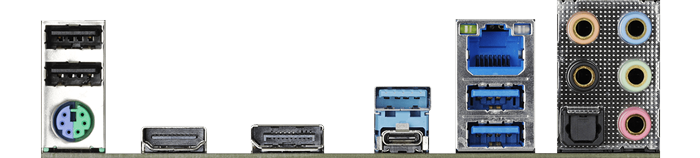

DRAGON 2.5G LAN   |   DUAL USB 3.2 Gen2 (Type A & C)   |   Front USB 3.2 Gen1 Type-C Get the performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media with Dragon 2.5 Gb/s LAN up to 2.5X than standard gigabit Ethernet. This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear I/O for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. Additionally, a Front USB 3.2 Gen1 Type-C header delivers up to 5Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

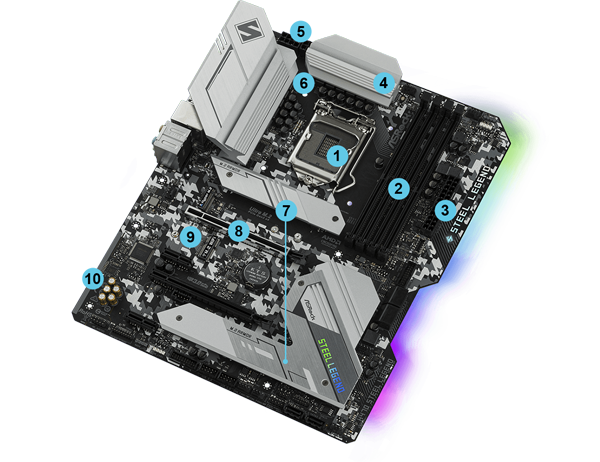

H470 Steel Legend Component Breakdown

Design of ASRock

1. Supports 10th Gen and future generation Intel® Core™ Processors   |   2. Dual Channel DDR4 Memory Technology
3. 24Pin ATX Hi-Density Connector   |   4. XXL Alloy Heatsink   |   5. 8+4 Pin Hi-Density Connector
6. Digi Power with Dr.MOS / Premium 60A Power Choke / 11 Power Phase Design
7. M.2 Armors / Dual Ultra M.2 Sockets / PCIe Gen3 x4 & SATA3
8. PCIe Steel Slot / 2 PCIe 3.0 x16, 2 PCIe 3.0 x1   |   9. M.2 (Key E) Slot for Wi-Fi (*Module is not included)
10. Premium Audio Package / Realtek ALC 1200 Codec / PCB Audio Shielding / Nahimic Audio

Equipped to Deliver an Extreme Audio Performance

ASRock audio

NAHIMIC AUDIO   |   GOLD AUDIO CAPS   |   Realtek Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. This series of motherboard offers completely immersive audio and with gold audio jacks this provides stable sound transmission.

Built with a Huge Boost featuring PCI Express 4.0

Hardware Ready and Reinforced! Welcome to the PCI Express 4.0 new era and be a smart buyer with ASRock motherboards! H470 enthusiast level motherboards equipped with luxury components that allows geeks to be hardware ready for PCI Express 4.0 standard

PCIe Gen4

PCIE 4.0 CLOCK GENERATORAn additional external base clock generator that delivers PCI Express 4.0 standard.

Steel Slot

PCIE 4.0 STEEL SLOTEquipped with reinforced steel slot which is based on PCI Express 4.0 hardware requirement.

M.2 Socket

PCIE 4.0 M.2 SOCKETHyper M.2 Key M socket, wth PCI Express 4.0 hardware for x4 high speed SSDs.

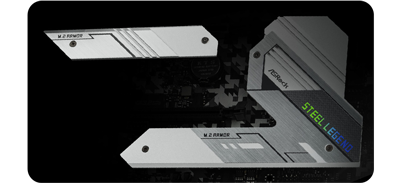

A Solid M.2 Solution and SSD Armor Protection

M.2 Heatsink Armor

Intel Optane Memory Ready Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s. ASRock provides an M.2 armor solution that makes SSDs run in a certain low temperature.

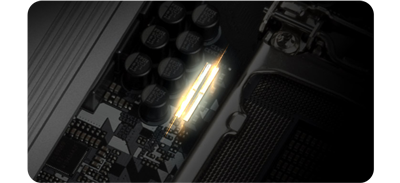

Heat Dissipating PCB Technology

PCB Layer

Efficient PCB Design Luxurious features extend to the onboard heat dissipating PCB points. Heat Dissipating PCB gives the motherboard a more mysterious touch and this design effectively takes the heat away from PCB and lower down the temperature up to 4.1 degrees.

Support Software for your ASRock Motherboard

software

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

software

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

Specifications
Core Specifications
Edition H470 Steel Legend
Form Factor ATX
CPU Socket 1200
Chipset Intel H470
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 22-60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-60/80/110, PCIe Gen3x4/SATA3
  • 2 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 5 x Chassis Water Pump/Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel USB Type-C Header
  • 1 x Power LED / Speaker Header
  • 2 x RGB LED connector
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Dragon RTL8125BG (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45 with LED
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
