New
Scan code: LN114471 Manufacturer code: 90-MXBFL0-A0UAYZ

ASRock Intel H410M-HVS R2.0 MicroATX Motherboard

ASRock H410M-HVS R2.0, Intel H410, S 1200, DDR4, SATA3, Intel® I219V LAN, 2x USB 3.2 Gen 1 A, 4x USB 2.0, MicroATX

Thumbnail 1 : ASRock Intel H410M-HVS R2.0 MicroATX Motherboard Thumbnail 2 : ASRock Intel H410M-HVS R2.0 MicroATX Motherboard Thumbnail 3 : ASRock Intel H410M-HVS R2.0 MicroATX Motherboard Thumbnail 4 : ASRock Intel H410M-HVS R2.0 MicroATX Motherboard
Scan code: LN114471 Manufacturer code: 90-MXBFL0-A0UAYZ
£56.99Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

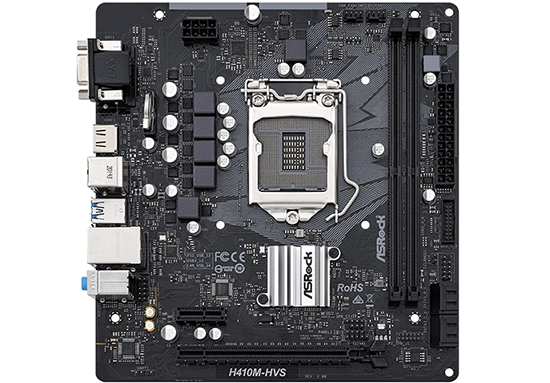

ASRock H410M-HVS R2.0 Micro ATX Intel Motherboard

ASRock Z590

LEGENDARY PERFORMANCE, EXTREME DURABILITY The ASRock H410M-HVS R2.0 delivers unbeatable durability and stunning aesthetics. Built with the most demanding specs and features, the H410M-HDV R2.0 aims at both daily users and seasoned PC enthusiasts. Utilise a strong array of materials and components to en sure stable and reliable performance. Built for Intel Core processors, the H410M-HVS R2.0 also supports DDR4 2933MHz memory. Get super fast and reliable connections with the new USB 3.2 Gen2 ports to support your next generation devices.

Intel® H410Chipset

Intel® Core™ 10th GenCompatible CPU

Micro-ATXForm Factor

Built for Power

back

5 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Blazing Fast Connectivity

back

USB 3.2 Gen2x2 Type-CThe latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

The Finest Connectivity Performance

back

Intel® LANIntel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Features of your Super Alloy Motherboard

down

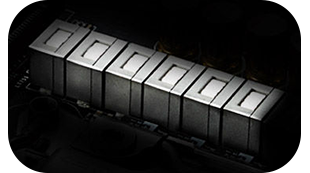

Premium 50A Power ChokeCompared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

down

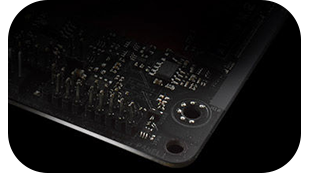

Matte Black PCBA new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

down

High Density Glass Fabric PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Additional Features of your ASRock Motherboard

down

Water Pump HeaderThis is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

down

Full Spike ProtectionSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

down

Live Update & APP ShopASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Specifications
Core Specifications
Edition H410M-HVS R2.0
Form Factor MicroATX
CPU Socket 1200
Chipset Intel H410
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Audio Header
  • 4 x SATA III - 6Gb/s
  • 1 x System Fan header
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 19.7 x 18.8 mm
Note
Additional Information
Scan Code LN114471
Model Number 90-MXBFL0-A0UAYZ
GTIN 4710483933455
