New
Scan code: LN122914 Manufacturer code: 90-MXBHV0-A0UAYZ

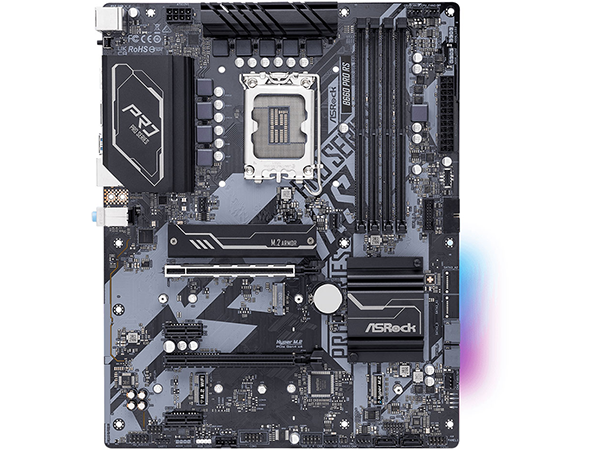

ASRock B660 Pro RS PCIe 4.0 ATX Motherboard

ASRock B660 Pro RS, Intel B660, S 1700, DDR4, SATA3, PCIe 4.0, 3x M.2/1x Key-E, GbE, USB 3.2 Gen1 A, ATX

Thumbnail 1 : ASRock B660 Pro RS PCIe 4.0 ATX Motherboard Thumbnail 2 : ASRock B660 Pro RS PCIe 4.0 ATX Motherboard Thumbnail 3 : ASRock B660 Pro RS PCIe 4.0 ATX Motherboard Thumbnail 4 : ASRock B660 Pro RS PCIe 4.0 ATX Motherboard
Scan code: LN122914 Manufacturer code: 90-MXBHV0-A0UAYZ
£129.98Item due on 31 January 2022
Due 31st Jan
From £10.84 / month (APR 0%) or 0% for 4 months
Monthly Payment: £10.84
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £129.98
Total inc. interest: £129.98
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

B660 Pro RS PCIe 4.0 ATX Motherboard from ASRock

B660 Pro RS

DISCOVER THE NEXT GENERATION OF GAMING Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade. RaceSport edition, your all-rounder motherboard that fulfils every task and light-loading gaming – with style and speed!

Intel B660Chipset

1700CPU Socket

DDR4Memory Type

ATXForm Factor

Power Like no Other

4K Recording

8 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Nahimic Audio

4K Recording

be immersed in soundWhether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Add your Own Style

4K Recording

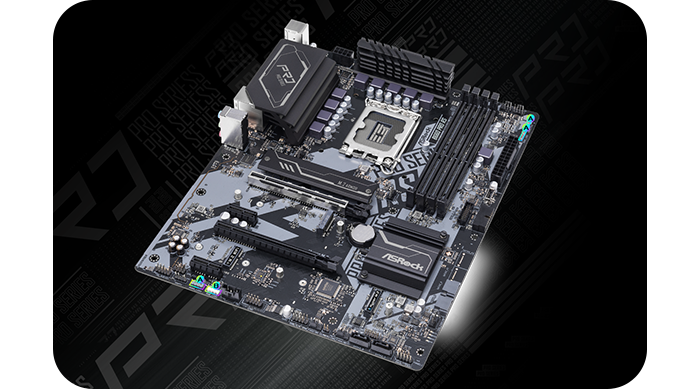

POLYCHROME RGBIn addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Built to Last

4K Recording

Reinforced Steel Slot [PCIe 4.0 Version]The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include: extra anchor points, a stronger latch, ensured signal stability and the ability to install heavy graphics cards.

Speeds that can't be Beat

4K Recording

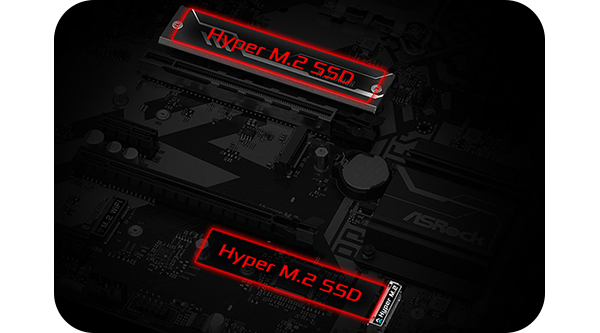

High Speed M.2 SolutionThis motherboard is capable of accomadating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Making Sure you Stay Connected

4K Recording

Intel® Gigabit LANIntel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users. Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Specifications
Core Specifications
Edition B660 Pro RS
Form Factor ATX
CPU Socket 1700
Chipset Intel B660
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 3200
  • DDR4 - 4800(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support Supported
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 22-60/80, PCIe Gen3/SATA
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80/110 PCIe Gen 4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 5 x Chassis Water Pump/Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219 (Gigabit LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN122914
Model Number 90-MXBHV0-A0UAYZ
GTIN 4710483936616
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
ASRock B660 Pro RS PCIe 4.0 ATX Motherboard
ASRock B660 Pro RS PCIe 4.0 ATX Motherboard
