Scan code: LN114141 Manufacturer code: 90-MXBEZ0-A0UAYZ

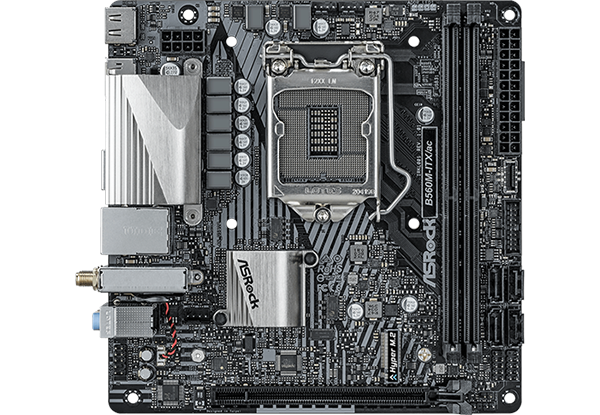

ASRock Intel B560M-ITX/AC mITX Motherboard

ASRock B560M-ITX/AC, Intel B560, S 1200, DDR4, PCIe 4.0, SATA3, M.2, GbE, ac/BT4.2, USB 3.2 Gen1, Mini-ITX

Thumbnail 1 : ASRock Intel B560M-ITX/AC mITX Motherboard Thumbnail 2 : ASRock Intel B560M-ITX/AC mITX Motherboard Thumbnail 3 : ASRock Intel B560M-ITX/AC mITX Motherboard Thumbnail 4 : ASRock Intel B560M-ITX/AC mITX Motherboard
Scan code: LN114141 Manufacturer code: 90-MXBEZ0-A0UAYZ
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Suggested alternatives

ASRock B560M-ITX/ac Mini-ITX Intel Motherboard

ASRock Z590

LEGENDARY PERFORMANCE, EXTREME DURABILITY The ASRock B560M delivers unbeatable durability and stunning aesthetics. Built with the most demanding specs and features, the B560M aims at both daily users and seasoned PC enthusiasts. Utilise a strong array of materials and components to ensure stable and reliable performance. Built for Intel Core processors, the B560M also supports DDR4 4600MHz (OC) memory. Enjoy your custom light show with ASRock Polychrome RGB and get connected and synced to various LED RGB devices. The durability and protection systems the B560M offers include a full Coverage M.2 heatsink which improves heat dissipation. Get super fast and reliable connections with the new Dual USB 3.2 Gen2 ports to support your next generation devices.

Intel® B560Chipset

Intel® Core™ 10th/11th GenCompatible CPU

Mini-ITXForm Factor

Built for Power

back

6 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Loading Times are a thing of the Past

4K Recording

Hyper M.2 (PCIe Gen4 x4)Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Blazing Fast Connectivity

back

USB 3.2 Gen2x2 Type-CThe latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

The Finest Connectivity Performance

back

Intel® LANIntel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Rule Lighting your Way

4K Recording

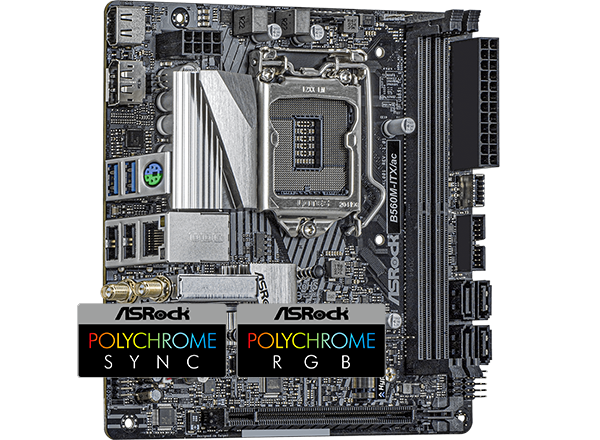

POLYCHROME RGBASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.

*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Surround yourself in Stunning Sound

4K Recording

Nahimic AudioWhether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Enjoy Stunning Display Quality

back

HDMI 4k @60HzSupports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Features of your Super Alloy Motherboard

down

Premium 60A Power ChokeCompared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

down

Matte Black PCBA new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

down

High Density Glass Fabric PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Additional Features of your ASRock Motherboard

down

Water Pump HeaderThis is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

down

Full Spike ProtectionSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

down

Live Update & APP ShopASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
