Scan code: LN108373 Manufacturer code: 90-MXBD40-A0UAYZ

ASRock B550 Phantom Gaming ITX/ax Mini-ITX Motherboard

ASRock B550 Phantom Gaming ITX/ax, AMD B550, S AM4, DDR4, SATA3, PCIe 4.0, Dual M.2, 2.5GbE, ax WiFi/BT 5.1, Mini-ITX

Thumbnail 1 : ASRock B550 Phantom Gaming ITX/ax Mini-ITX Motherboard Thumbnail 2 : ASRock B550 Phantom Gaming ITX/ax Mini-ITX Motherboard Thumbnail 3 : ASRock B550 Phantom Gaming ITX/ax Mini-ITX Motherboard Thumbnail 4 : ASRock B550 Phantom Gaming ITX/ax Mini-ITX Motherboard
Scan code: LN108373 Manufacturer code: 90-MXBD40-A0UAYZ
£214.99
Order now and receive it between 2nd Nov and 3rd Nov
From £10.32 / month (APR 14.9%)
Monthly Payment: £19.30
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £214.99
Total inc. interest: £231.60
Monthly Payment: £10.32
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £214.99
Total inc. interest: £247.64
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 2nd Nov To 3rd Nov to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

3rd Gen AMD Ryzen B550 Phantom Gaming ITX/ax Motherboard

ASRock B550 Phantom Gaming ITX/ax Ryzen Mini ATX Motherboard

Underneath its relentless appearance lie gaming oriented features The AMD B550 chipset makes PCI-e 4.0 available for enthusiasts who desire high performance, bandwidth and speed.The B550 Phantom Gaming ITX/ax is a Mini-ITX motherboard from ASRock. Supporting 3rd Generation AMD Ryzen™ processors and beyond, this motherboard offers rapid USB connections, graphics outputs and the ultimate networking performance with the industry’s leading Intel LAN and WiFi 6 welcome to the new WiFi standard! Light up your system Polychrome RGB Sync, where you can choose from a spectrum of stunning colours.


Please note: B550 Motherboards are ready for 3rd Gen AMD AM4 Ryzen™ Processors and Future AMD Ryzen™ Processors.
Not Compatible with AMD Ryzen™ 5 3400G & AMD Ryzen™ 3 3200G.

AMD B550Chipset

AM4CPU Socket

3rd Gen AMD Ryzen™and Future Compatible CPUs

Mini ITXForm Factor

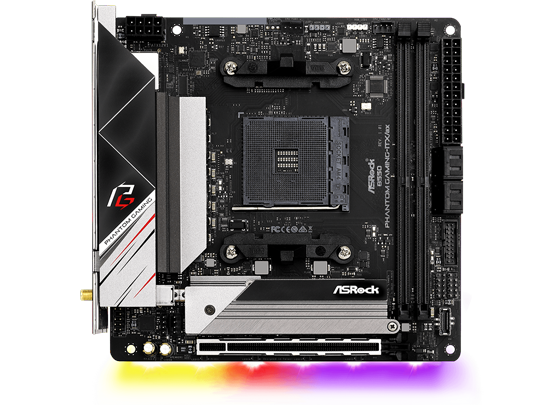

Component Breakdown of the Phantom Gaming ITX/ax

Design of ASRock B550 AMD Ryzen Motherboard

1. Supports 3rd Gen / future AM4 AMD Ryzen™ Processors   |   2. Dual Channel DDR4 Memory Technology
3. 24Pin ATX Hi-Density Connector   |   4. 8Pin 12V Hi-Density Power Connectors
5. Flexible Integrated I/O Shield   |   6. Premium 90A Power Choke / 8 Power Phase Design / Digi Power with Dr.MOS
7. Premium Audio / Realtek ALC 1220 Codec / Nahimic Audio / PCB Layer Shielding
8. Hyper M.2 Socket, PCIe Gen4x4 / 1 Ultra M.2, PCIe Gen3 x4 & SATA3
9. PCIe Steel Slot, 1 PCIe 4.0 x16   |   10. Front USB 3.2 Gen2 Type-C

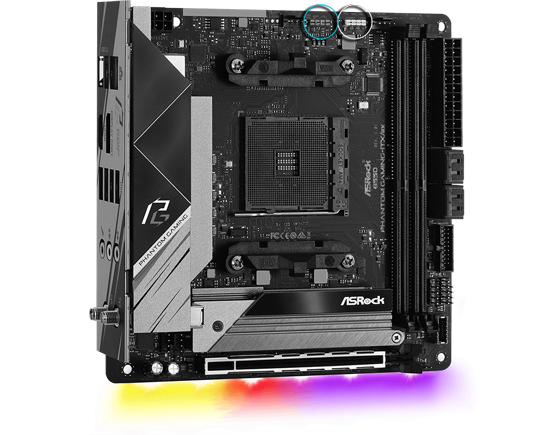

Light it up with Polychrome RGB Illumination

Polychrome RGB Sync

Synchronize across the RGB Sync-certified accessories This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.


*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

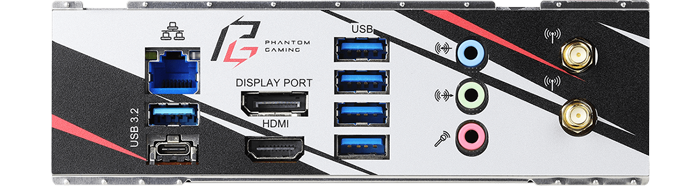

Boosted for Maximum Networking Performance

networking connectivity

Intel® 2.5G LAN   |   Wi-Fi 6 802.11ax   |   Dual USB 3.2 Gen2 Type A+C   |   Front USB 3.2 Gen2 Type-C ASRock’s motherboard equipped with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well. While Intel® LAN always provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users.
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear I/O for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

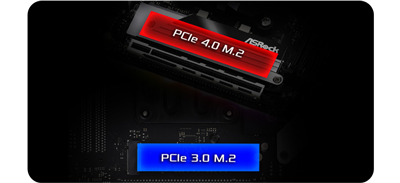

Unbeatable Hyper M.2 Supports the Next Generation

M.2 Heatsink Armor

PCI Express 4.0 M.2 SSDs Engineered to support the next generation PCI Express 4.0 M.2 SSDs, while the Ultra M.2 socket runs PCIe Gen3 x4 and SATA3 mode and long stability with M.2 armor solution.

Reinforced Steel Slot

PCI-e 4.0

Strong Protection The strengthened steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include extra anchor points, stronger latch, ensures signal stability, and makes sure heavy graphics cards to be well-installed.

Equipped to Deliver an Extreme Audio Performance

ASRock audio

AUDIO THAT MATTERS Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

ASRock Super Motherboard Alloy

alloy

XXL ALUMINIUM ALLOY HEATSINKExtra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

power choke

PREMIUM 90A POWER CHOKEASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Dr.MOS

DR. MOSOptimized for synchronous buck-set down voltage applications, intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

matte black PCB

MATTE BLACK PCBA new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

fabric PCB

HIGH DENSITY GLASS FABRIC PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

2oz copper PCB

2OZ COPPER PCBUsing only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Support Software for your ASRock Motherboard

ASRock Software

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

ASRock Software

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

AMD Ryzen Processors
Specifications
Core Specifications
Edition B550 Phantom Gaming ITX/ax
Form Factor Mini-ITX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4466(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4666+(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 4933(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5100+(OC)
  • DDR4 - 5200(OC)
  • DDR4 - 5300(OC)
  • DDR4 - 5400+(OC)
Max. Memory Capacity 64GB
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E Vertical (Supports WiFi Modules)
  • 1 x M.2, 22-80, PCIe Gen3/SATA
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Front Panel Audio Header
  • 1 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel 802.11ax WiFi + BT5 Module
Rear I/O Connectors
  • 2 x Antenna Ports
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x RJ-45 with LED
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN108373
Model Number 90-MXBD40-A0UAYZ
GTIN 4710483931611
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
