Scan code: LN120068 Manufacturer code: 90-MXBGH0-A0UAYZ

ASRock AMD B550 PG Riptide ATX Motherboard

ASRock B550 PG Riptide, AMD B550, S AM4, DDR4, SATA3, PCIe 4.0, 2x M.2, 2.5GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : ASRock AMD B550 PG Riptide ATX Motherboard Thumbnail 2 : ASRock AMD B550 PG Riptide ATX Motherboard Thumbnail 3 : ASRock AMD B550 PG Riptide ATX Motherboard Thumbnail 4 : ASRock AMD B550 PG Riptide ATX Motherboard
Scan code: LN120068 Manufacturer code: 90-MXBGH0-A0UAYZ
£131.99
Order now and get it tomorrow, Fri 29th Oct
From £11.85 / month (APR 14.9%)
Monthly Payment: £11.85
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £131.99
Total inc. interest: £142.20
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 29th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

ASRock B550 PG Riptide AMD Ryzen ATX Motherboard

ASRock B550 ATX Motherboard

Fast, Mysterious, Unbeatable The stunning B550 PG Riptide from ASrock takes its name from riptide water currents, showing a double-side to the ocean, calm, collected but capable of unlimited strength. Built around powerful gaming features, the Riptide has given users an impeccable sense of stability and unbreakable performance. Boasting an impressive 10 phase digi power design, PCIe 4.0 technology, support for 4933+ (OC) DDR4 memory, Type-C connectivity, Killer 2.5G LAN and ASRock exclusive lightning gaming ports. Push the boundaries of modern high-core performance with the incredible B550 PG Riptide from ASRock.

AMD B550Chipset

AM4CPU Socket

3rd Gen AMD Ryzen™and Future Compatible CPUs

ATXForm Factor

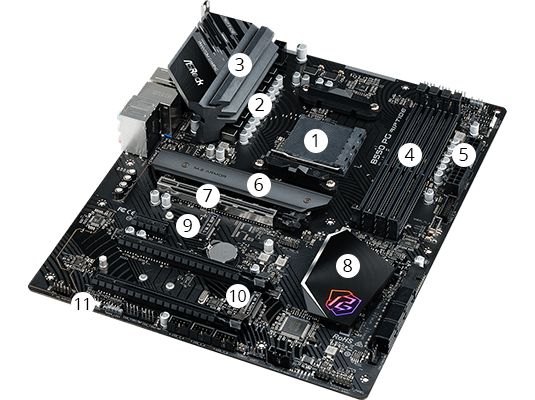

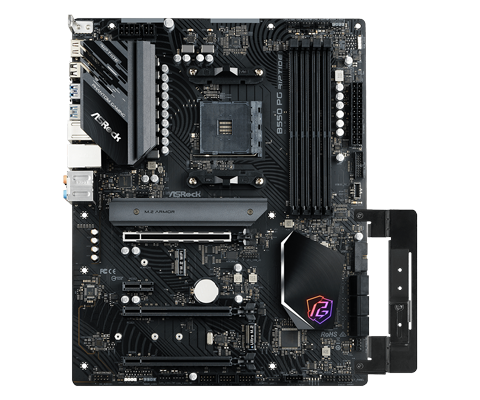

Component Breakdown of the B550M Steel Legend

Design of ASRock B550M AMD Ryzen Motherboard

1. Supports 3rd Gen / future AM4 AMD Ryzen™ Processors   |   2. 10 Power Phase design
3. XXL Aluminium Heatsink   |   4. Dual Channel DDR4 Memory   |   5. 24Pin ATX Power Connector
6. Hyper M.2 PCIe Gen4x4 / Unbeatable Heatsink Armor
7. PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode; PCIE4: Gen3 x1 mode
8. Unbeatable Heatsink Armour with Polychrome Support
9. M.2 (Key E) Slot for Wi-Fi (*Module is not included)
10. Ultra M.2 Socket PCIe3x4/SATA3
11. 2x Addressable RGB LED Header

Access The Latest Generation Storage

4K Recording

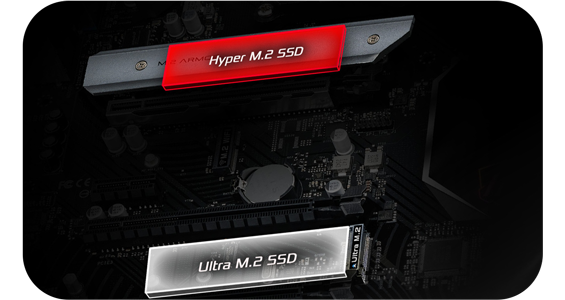

Dual M.2 CapabilityThis motherboard is capable of accommodating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Reinforced Steel Slot

PCI-e 4.0

Strong Protection The strengthened steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include extra anchor points, stronger latch, ensures signal stability, and makes sure heavy graphics cards to be well-installed.

Equipped to Deliver an Extreme Audio Performance

ASRock audio

AUDIO THAT MATTERS Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Connections At Your Fingertips

4K Recording

ASRock Super Motherboard Alloy

alloy

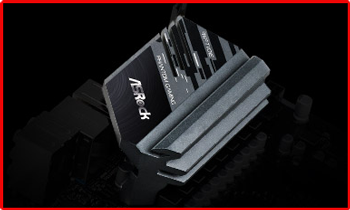

XXL ALUMINIUM ALLOY HEATSINKExtra large aluminium alloy heat sinks that effectively take away heat from the MOSFET and chipset, increasing overall system stability.

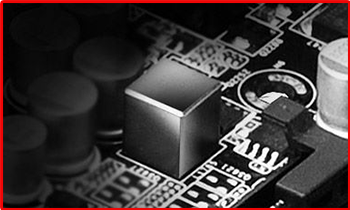

power choke

PREMIUM 60A POWER CHOKEASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

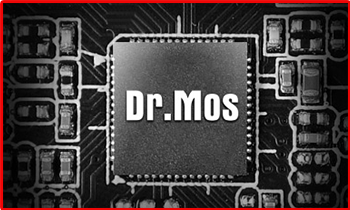

Dr.MOS

DR. MOSOptimized for synchronous buck-set down voltage applications, intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

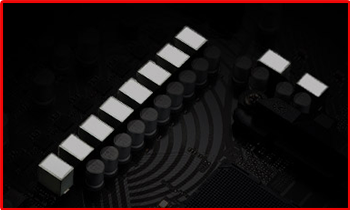

power choke

Premium Memory ChokesSpecifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

I/O Armor

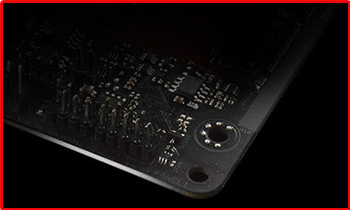

Matte Black PCBA new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

matte black PCB

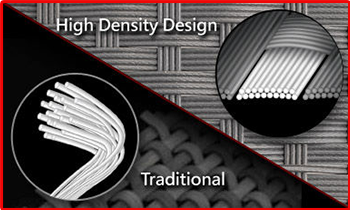

HIGH DENSITY GLASS FABRIC PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

fabric PCB

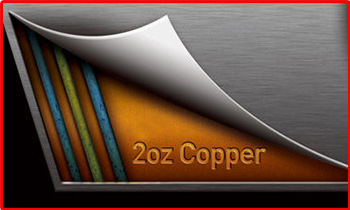

2OZ Copper PCBUsing only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperatures and higher energy efficiency for overclocking.

Support Software for your ASRock Motherboard

ASRock Software

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

ASRock Software

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

AMD Ryzen Processors
Specifications
Core Specifications
Edition B550 PG Riptide
Form Factor ATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4466(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4666(OC)
  • DDR4 - 4733(OC)
  • DDR4 - 4933(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support 4-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80/110, PCIe Gen3x4/SATA3
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x1 Bandwidth)
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 5 x Chassis Water Pump/Fan Connector
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Power LED Header
  • 2 x RGB LED connector
  • 1 x speaker header
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 3 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Killer E3100G (2.5GbE LAN)

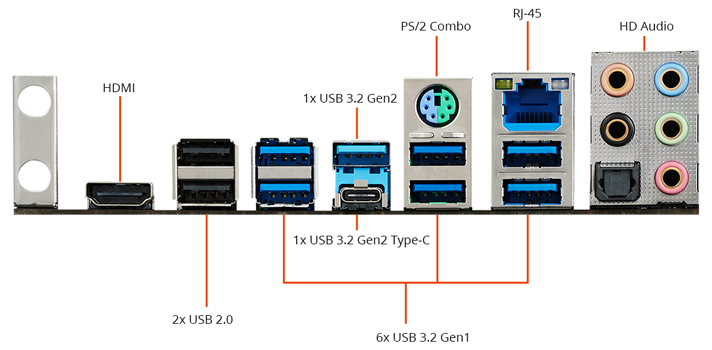

Rear I/O Connectors
  • 1 x Bass Speaker Out
  • 1 x Central Speaker Out
  • 1 x Front Speaker Out
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45 with LED
  • 1 x S/PDIF (Optical)
  • 2 x USB 2.0
  • 6 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN120068
Model Number 90-MXBGH0-A0UAYZ
GTIN 4710483935190
