Scan code: LN108229 Manufacturer code: 90-MXBDQ0-A0UAYZ

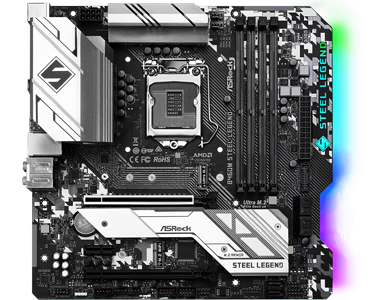

ASRock Intel B460M STEEL LEGEND Micro ATX Motherboard

ASRock B460M STEEL LEGEND, Intel B460, S 1200, DDR4, SATA3, 3x M.2, 2.5 Gigabit LAN, USB 3.2 Gen1, mATX

Thumbnail 1 : ASRock Intel B460M STEEL LEGEND Micro ATX Motherboard Thumbnail 2 : ASRock Intel B460M STEEL LEGEND Micro ATX Motherboard Thumbnail 3 : ASRock Intel B460M STEEL LEGEND Micro ATX Motherboard Thumbnail 4 : ASRock Intel B460M STEEL LEGEND Micro ATX Motherboard
Scan code: LN108229 Manufacturer code: 90-MXBDQ0-A0UAYZ
£104.99Item currently awaiting an ETA
Pre order
From £9.43 / month (APR 14.9%)
Monthly Payment: £9.43
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £104.99
Total inc. interest: £113.10
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

ASRock B460M Steel Legend Intel 10th Gen Series M-ATX Motherboard

ASRock B460M Steel Legend Intel 10th Gen ATX Motherboard

Strong Performance in a small Form Factor Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Boasting support for 10th Generation intel CPUS you can rest assured that this steel legend motherboard will give you stable and reliable performance. Featuring support for dual M.2 SSDs with Armor solution, AMD CrossFireX, Type-C connectivity,dragon 2.5GB LAN, Polychrome SYNC RGB and Nahimic 3D audio has been optimised to satisfy gamers, or anyone who is looking for an outstanding sound experience in high definition. The ASrock B460m Steel Legend has been designed and built to meet the latest specifications and features and is perfect for both daily users and mainstream enthusiasts. If you're looking for top tier performance you're in the right place.

Intel B460Chipset

1200CPU Socket

10th Gen IntelCompatible CPUs

M-ATXForm Factor

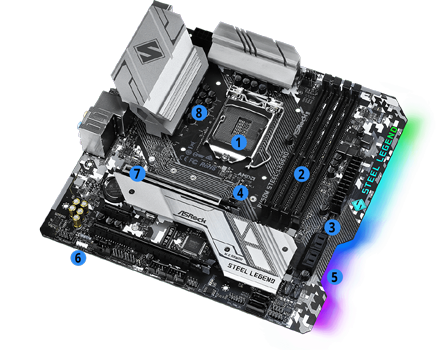

B460M Steel Legend Features

1. Supports 10th Gen and future generation Intel® Core™ Processors   |   2. Dual Channel DDR4 Memory Technology
3. USB 3.2 Gen1 Header   |   4. Dual Ultra M.2 Sockets
5. Polychrome Sync   |   6. 2x Addressable RGB LED Header & 1x RGB LED Header
7. Steel PCIe Slot   |   8. Nichicon 12K Black Capacitors

Equipped to Deliver an Extreme Audio Performance

ASRock audio

AUDIO THAT MATTERS Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The PRO Series Delivers an Unmatched Performance

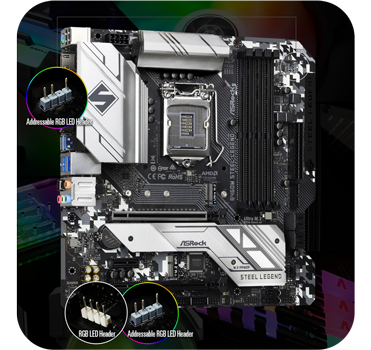

RULE YOUR OWN LIGHTING WAY WITH POLYCHROME RGB SYNC ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.


*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

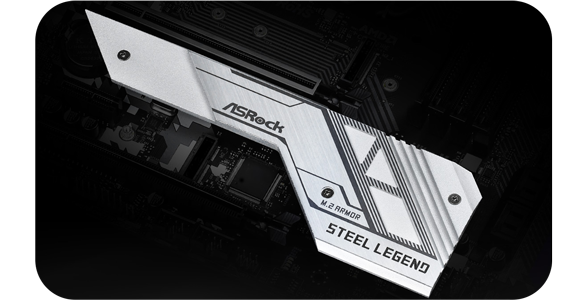

A Solid M.2 Solution

M.2 Heatsink Armor

Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that enables SSDs to run at lower temperatures

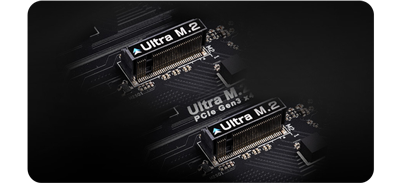

Dual M.2 for SSD

M.2 SSD

Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

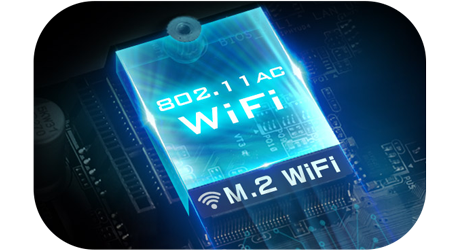

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

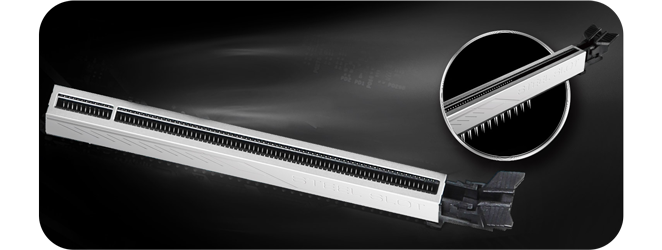

Steel Legend, Steel Protection

PCI-E STEEL SLOT The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.

Support Software for your ASRock Motherboard

up

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

Specifications
Core Specifications
Edition B460M
Form Factor MicroATX
CPU Socket 1200
Chipset Intel B460
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface None
NVIDIA SLI Support N/A
AMD CrossFire Support Supported
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 1.4
  • Thunderbolt 3
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-60/80, PCIe Gen3x4/SATA3
  • 1 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Audio Header
  • 1 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x Wake-on-LAN (WoL) header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Dragon RTL8125BG (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Bass Speaker Out
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45 with LED
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN108229
Model Number 90-MXBDQ0-A0UAYZ
GTIN 4710483931291
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
