ASRock Intel B460 Pro4 mATX Motherboard

ASRock B460M Pro4, Intel B460, S 1200, DDR4, SATA3, PCIe 3.0, 3x M.2, USB 3.2 Gen 1 A+C, MicroATX

Thumbnail 1 : ASRock Intel B460 Pro4 mATX Motherboard Thumbnail 2 : ASRock Intel B460 Pro4 mATX Motherboard Thumbnail 3 : ASRock Intel B460 Pro4 mATX Motherboard Thumbnail 4 : ASRock Intel B460 Pro4 mATX Motherboard
Scan code: LN107746 Manufacturer code: 90-MXBCV0-A0UAYZ
£94.99
Order now and get it tomorrow, Wed 8th Jul
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 8th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

ASRock B460M PRO4 Intel 10th Gen Series Micro ATX Motherboard

ASRock B460M PRO4 Intel 10th Gen M-ATX Motherboard

IT’S TIME FOR B460 TO SHINE Supporting 10th Generation and future Intel® Core™ Processors, plus AMD Quad CrossFireX™ and CrossFireX™ – the B460M PRO4 Micro ATX motherboard from ASRock delivers a superb performance. Boasting rapid transfer speed with Dual Ultra M.2 sockets which supports PCIe M.2 SSDs and Intel® Optane™ memory. Improve your networking capabilities with Intel® LAN, users can choose wireless connections by an M.2 (Key E) slot. Offering various connectivity ports for super speedy transfer rates. Enjoy stunning customization with Polychrome RGB Sync lighting, plus incredible Nahimic 3D audio has been optimized to satisfy gamers, or anyone who is looking for an outstanding sound experience in high definition. ASRock Boost Frequency Boost Technology, allows users to install their non K series CPUs to ASRock’s 400 series motherboards (even non Z models) and enjoy the base frequency boost with the hidden power of processors immediately.


Please note: B460 Motherboards are compatible with 10th Gen Intel Core™/ Pentium® CPUs for LGA 1200 socket. These Intel B460 Motherboards do not share the same socket as Intel's 300 Series Motherboards, they are electrically incompatible & will not work with 9th Gen Intel CPUs.

Intel B460Chipset

1200CPU Socket

10th Gen IntelCompatible CPUs

Micro ATXForm Factor

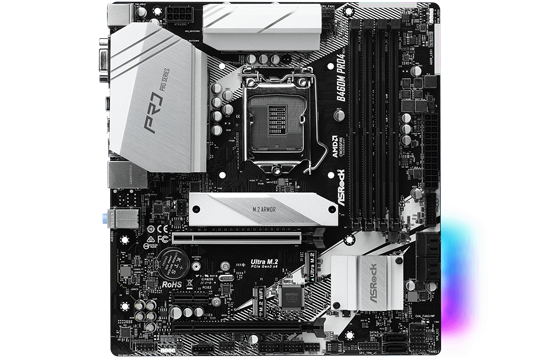

The PRO Series Delivers an Unmatched Performance

Design of ASRock B460M PRO4

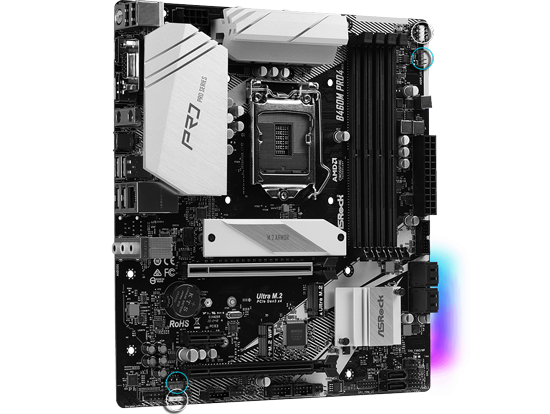

RULE YOUR OWN LIGHTING WAY WITH POLYCHROME RGB SYNC ASRock Intel B460M PRO4 provides an outstanding performance and superior aesthetics that let you rule your own way, utilizing the comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Includes two Addressable RGB LED Headers and two RGB LED Headers. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.


*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Boosted for Maximum Networking Performance

networking connectivity

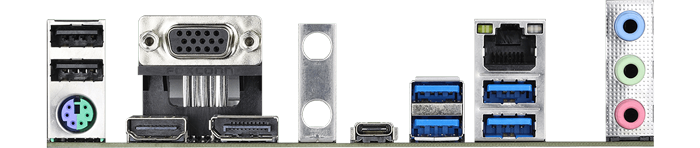

Graphics Output: HDMI, D-Sub, DP   |   INTEL® LAN   |  Intel® Optane™ memory ready ASRock B460M PRO4 features Gigabit Intel® LAN which provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users. Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness. This motherboard in total has seven USB Ports, four USB Type-A Ports, one USB Type-C Port (2 on the Front, 4 at the Rear, and 1 Rear Type-C).

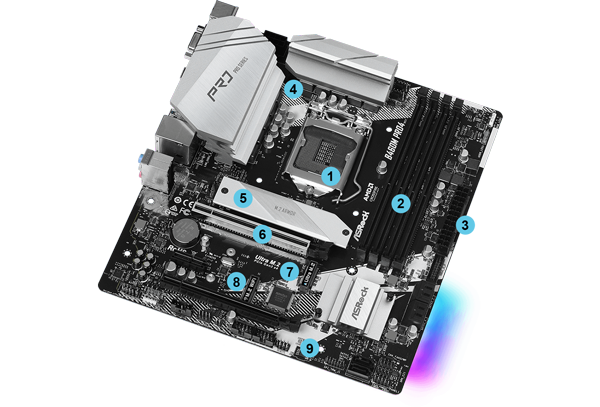

B460M PRO4 Component Breakdown

Design of ASRock B460M

1. Supports 10th Gen and future generation Intel® Core™ Processors   |   2. Dual Channel DDR4 Memory Technology
3. 24Pin ATX Hi-Density Connector   |   4. Premium 50A Power Choke / 9 Power Phase Design / Digi Power Design
5. M.2 Armor Thermal Solution   |   6. Advanced PCI-E Steel Slot / Two PCIe 3.0 x16, One PCIe 3.0 x1
7. Ultra M.2 (PCIe Gen3 x4 & SATA3)   |   8. M.2 (Key E) Slot for Wi-Fi (*Module is not included)   |   9. POST Status Checker

Equipped to Deliver an Extreme Audio Performance

ASRock audio

AUDIO THAT MATTERS Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

A Solid M.2 Solution

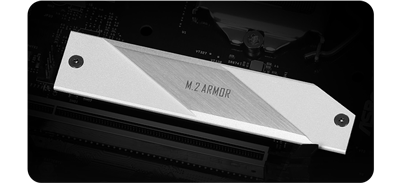

M.2 Heatsink Armor

Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

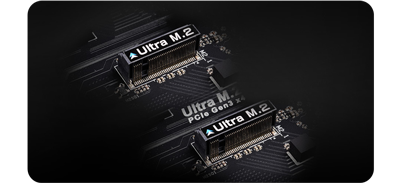

Dual M.2 for SSD

M.2 SSD

Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

Support Software for your ASRock Motherboard

up

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

Specifications
Core Specifications
Edition B460M Pro4
Form Factor MicroATX
CPU Socket 1200
Chipset Intel B460
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-60/80, PCIe Gen3/SATA
  • 1 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA
RAID Support via
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Rapid Storage Technology 17
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 2 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 3 x System Fan header
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x DisplayPort 1.4
  • 1 x HDMI
  • 1 x Headphone-Out
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 1 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 229 mm
Note
Additional Information
Scan Code LN107746
Model Number 90-MXBCV0-A0UAYZ
GTIN 4710483931161
