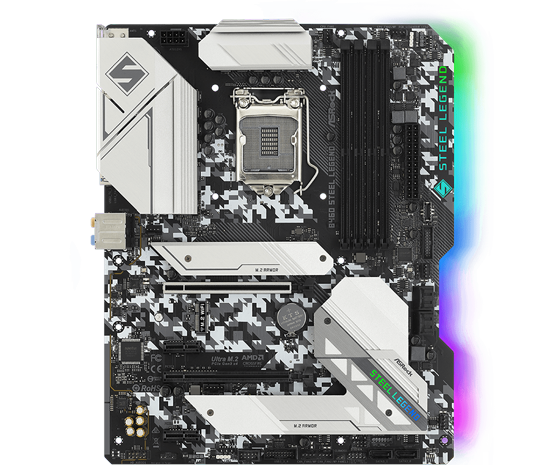

ASRock B460 Steel Legend Intel 10th Gen ATX Motherboard
TOUGH AS STEEL. STEEL FOREVER. Announcing the ASRock Intel B460 Steel Legend ATX motherboard, which supports 10th Gen and future generation Intel® Core™ Processors. Boasting speedy transfer rates with Dual Ultra M.2 sockets which supports PCIe M.2 SSDs while the M.2 armors ensures the SSDs are working at their best. Improve your networking capabilities with Dragon LAN up to 2.5X the bandwidth and besides the onboard LAN port, users can choose wireless connections by an M.2 (Key E) slot. Plus, you can enjoy stunning customization with Polychrome RGB Sync lighting. Includes a multitude of connectivity and USB ports to connect to your devices. Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
Please note: B460 Motherboards are compatible with 10th Gen Intel Core™/ Pentium® CPUs for LGA 1200 socket. These Intel B460 Motherboards do not share the same socket as Intel's 300 Series Motherboards, they are electrically incompatible & will not work with 9th Gen Intel CPUs.
Get Endless Performance Possibilities with Steel Style

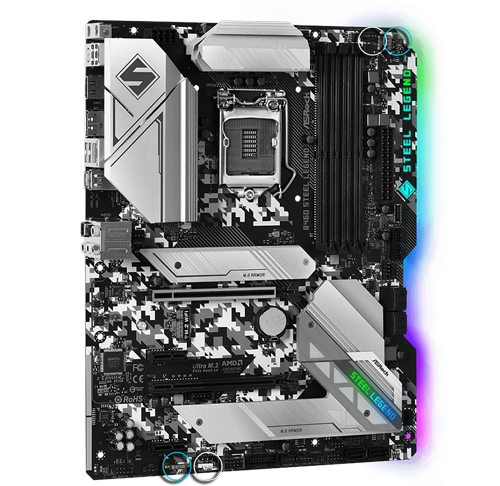

RULE YOUR OWN LIGHTING WAY WITH POLYCHROME RGB SYNC ASRock B460 Steel Legend provides an outstanding performance and superior aesthetics that let you rule your own way, utilizing the comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Includes two Addressable RGB LED Headers and two RGB LED Headers. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Boosted for Maximum Networking Performance

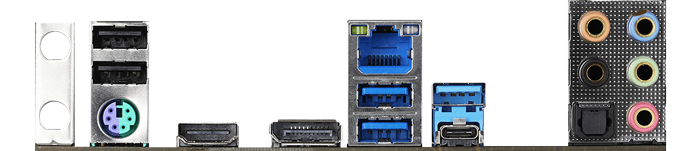

DRAGON 2.5G LAN | 7 x USB 3.2 Gen1 (1 Rear Type-C, 3 Rear Type-A, 2 Front) | 1 x Front Type-C Get the performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media with Dragon 2.5 Gb/s LAN up to 2.5X than standard gigabit Ethernet. Additionally, a Front USB 3.2 Gen1 Type-C header delivers up to 5Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

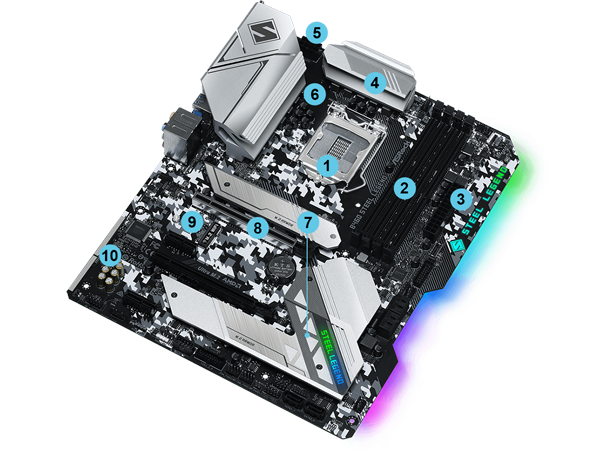

B460 Steel Legend Component Breakdown
1. Supports 10th Gen and future generation Intel® Core™ Processors | 2. Dual Channel DDR4 Memory Technology
3. 24Pin ATX Hi-Density Connector | 4. XXL Alloy Heatsink | 5. 8Pin Hi-Density Connector
6. Digi Power with Dr.MOS / Premium 60A Power Choke / 9 Power Phase Design
7. M.2 Armors / Dual Ultra M.2 Sockets / PCIe Gen3 x4 & SATA3
8. PCIe Steel Slot / 2 PCIe 3.0 x16, 2 PCIe 3.0 x1 | 9. M.2 (Key E) Slot for Wi-Fi (*Module is not included)
10. Premium Audio Package / Realtek ALC 1200 Codec / PCB Audio Shielding / Nahimic Audio
Equipped to Deliver an Extreme Audio Performance
NAHIMIC AUDIO | GOLD AUDIO CAPS | Realtek Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. This series of motherboard offers completely immersive audio and with gold audio jacks this provides stable sound transmission.

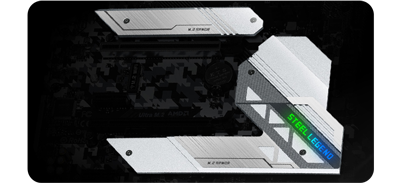

A Solid M.2 Solution and SSD Armor Protection
Intel Optane Memory Ready Includes Two Ultra M.2 sockets that supports both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s. ASRock provides an M.2 armor solution that makes SSDs run in a certain low temperature.

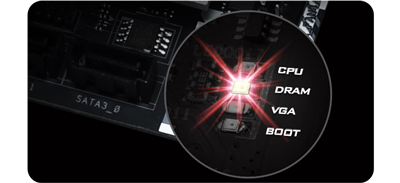

Post Status Checker
Efficient easy troubleshooting An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an easy way to identify the source of the problem.
Support Software for your ASRock Motherboard
FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop
|Edition||B460 Steel Legend|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||ECC/Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||Realtek ALC1200 7.1 HD Audio|
|Primary GPU Interface||PCIe 3.0 (x16)|
|NVIDIA SLI Support||N/A|
|AMD CrossFire Support||2-Way CrossFire|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||None|
|RAID Support via||SATA|
|Storage Mode Support||
|Network Interface Type||Wired 2.5 Gigabit LAN (10/100/1000/2500)|
|Network Chip/Modules||1 x Dragon RTL8125BG (2.5GbE LAN)|
|Rear I/O Connectors||
|Board Dimensions||30.5 x 24.4 mm|
