ASRock Intel B460 PHANTOM GAMING 4 ATX Motherboard

ASRock B460 PHANTOM GAMING 4, Intel B460, S 1200, DDR4, SATA3, 2x M.2, 4x USB 3.2 Gen1 Type-A, ATX

Thumbnail 1 : ASRock Intel B460 PHANTOM GAMING 4 ATX Motherboard Thumbnail 2 : ASRock Intel B460 PHANTOM GAMING 4 ATX Motherboard Thumbnail 3 : ASRock Intel B460 PHANTOM GAMING 4 ATX Motherboard Thumbnail 4 : ASRock Intel B460 PHANTOM GAMING 4 ATX Motherboard
Scan code: LN107745 Manufacturer code: 90-MXBCP0-A0UAYZ
£94.99
Order now and receive it by Thursday, 6th August
Delivery Options
  • By DPD On 6th Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

ASRock B460 Phantom Gaming 4 Intel 10th Gen ATX Motherboard

ASRock B460 Phantom Gaming 4 Intel 10th Gen ATX Motherboard

IT’S TIME FOR B460 TO TAKE CHARGE Supporting 10th Generation and future Intel® Core™ Processors, plus AMD Quad CrossFireX™ – the B460 Phantom Gaming 4 ATX motherboard from ASRock delivers a superb performance. Boasting rapid transfer speed with Dual Ultra M.2 sockets which supports PCIe M.2 SSDs and Intel® Optane™ memory. Improve your networking capabilities with Intel® LAN, users can choose wireless connections by an M.2 (Key E) slot. Offering various connectivity ports for super speedy transfer rates. Enjoy incredible Nahimic 3D audio has been optimized to satisfy gamers, or anyone who is looking for an outstanding sound experience in high definition. ASRock Boost Frequency Boost Technology, allows users to install their non K series CPUs to ASRock’s 400 series motherboards (even non Z models) and enjoy the base frequency boost with the hidden power of processors immediately.


Please note: B460 Motherboards are compatible with 10th Gen Intel Core™/ Pentium® CPUs for LGA 1200 socket. These Intel B460 Motherboards do not share the same socket as Intel's 300 Series Motherboards, they are electrically incompatible & will not work with 9th Gen Intel CPUs.

Intel B460Chipset

1200CPU Socket

10th Gen IntelCompatible CPUs

ATXForm Factor

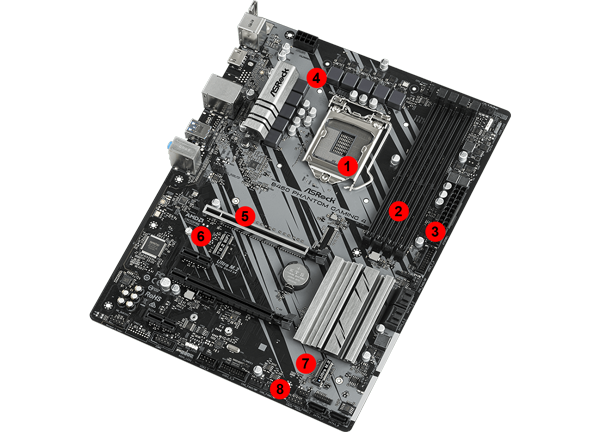

Component Breakdown of the B460 Phantom Gaming 4

Design of ASRock B460 PG 4 Motherboard

1. Supports 10th Gen and future generation Intel® Core™ Processors   |   2. Dual Channel DDR4 Memory Technology
3. 24Pin ATX Hi-Density Connector   |   4. Premium 50A Power Choke / 9 Power Phase Design / Digi Power Design
5. Advanced PCI-E Steel Slot / Two PCIe 3.0 x16, Two PCIe 3.0 x1   |   6. M.2 (Key E) Slot for Wi-Fi (*Module is not included)
7. Ultra M.2 (PCIe Gen3 x4 & SATA3)   |   8. POST Status Checker

Boosted for Maximum Networking Performance

networking connectivity

Graphics Output: HDMI   |   INTEL® LAN   |  Intel® Optane™ memory ready ASRock B460 Phantom Gaming 4 features Gigabit Intel® LAN which provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users. Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness. This motherboard in total has eight USB Ports, four USB 3.2 Gen1 Ports on the Front and four on the Rear.

Equipped to Deliver an Extreme Audio Performance

ASRock audio

AUDIO THAT MATTERS Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

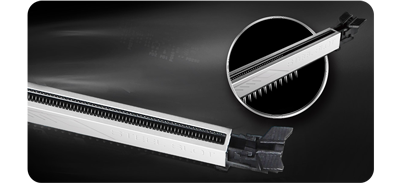

Durable PCI-E Steel Slot

PCIe Steel Slot

The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.

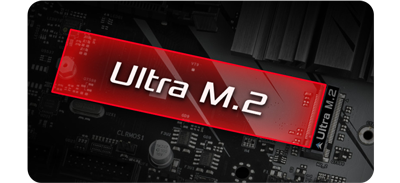

Ultra M.2 Interface for Super Fast SSDs

Ultra M.2 SSD

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

Support Software for your ASRock Motherboard

up

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

Specifications
Core Specifications
Edition Phantom Gaming 4
Form Factor ATX
CPU Socket 1200
Chipset Intel B460
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 22-80/110, PCIe Gen3/SATA
  • 2 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA
RAID Support via
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Rapid Storage Technology 17
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 2 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 5 x System Fan header
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)

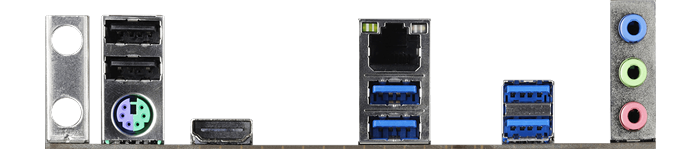

Rear I/O Connectors
  • 1 x HDMI
  • 1 x Headphone-Out
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 224 mm
Note
Additional Information
Scan Code LN107745
Model Number 90-MXBCP0-A0UAYZ
GTIN 4710483931086
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
