Scan code: LN91359 Manufacturer code: 90-MXB830-A0UAYZ

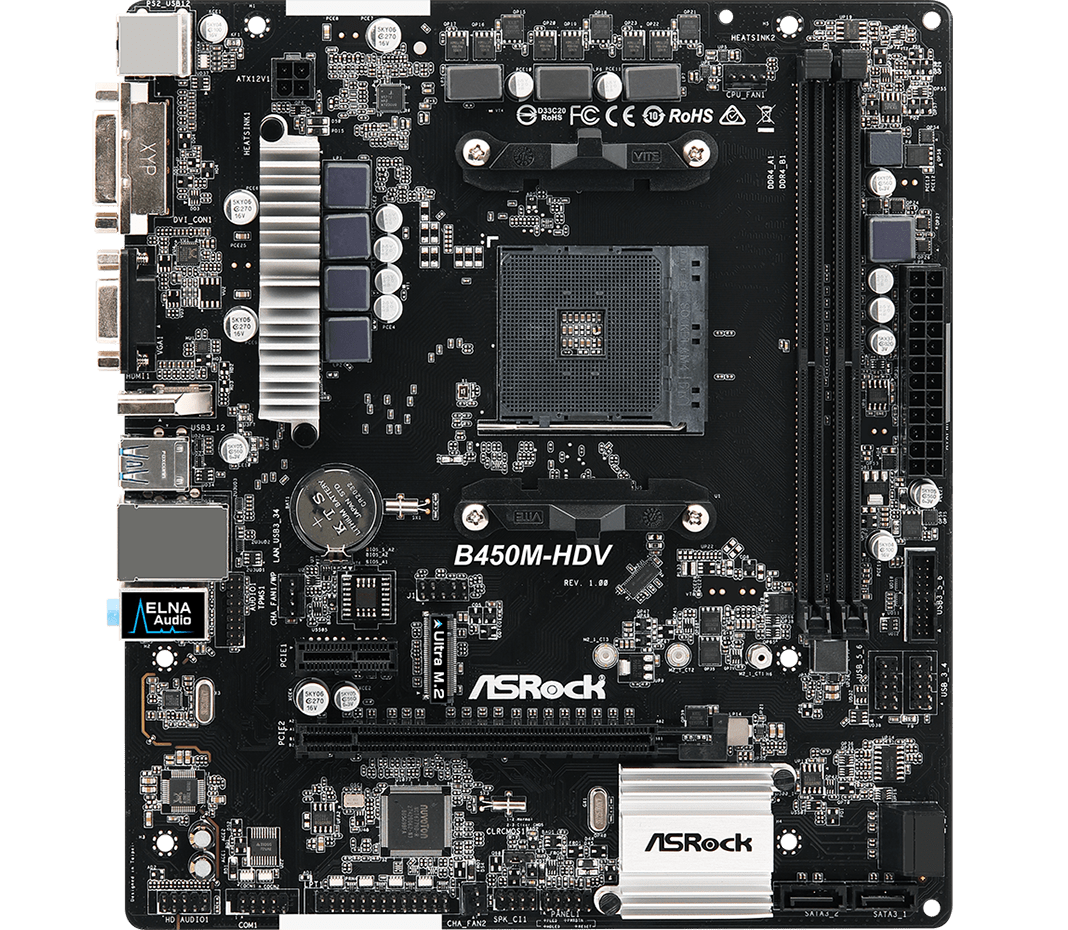

ASRock AMD B450M-HDV Ryzen micro-ATX Motherboard

ASRock B450M-HDV, AMD B450, AM4, DDR4, M.2, Realtek GbE, USB 3.1 Gen1, MicroATX

Thumbnail 1 : ASRock AMD B450M-HDV Ryzen micro-ATX Motherboard Thumbnail 2 : ASRock AMD B450M-HDV Ryzen micro-ATX Motherboard Thumbnail 3 : ASRock AMD B450M-HDV Ryzen micro-ATX Motherboard Thumbnail 4 : ASRock AMD B450M-HDV Ryzen micro-ATX Motherboard
Scan code: LN91359 Manufacturer code: 90-MXB830-A0UAYZ
£62.99Item currently awaiting an ETA
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

B450M-HDV Micro-ATX ASROCK Performance Motherboard

b450

ASROCK PREMIUM QUALITY MICRO ATX MOTHERBOARD Build your system with the ASRock B450M-HDV micro-ATX motherboard. Discover high quality audio with Realtek and ELNA Audio Caps the key to reduce noise level. Primed with M.2 slot that supports both SATA3 6Gb/s x4 PCIe Gen3, the quality interface that excels data transfer speeds up to 32Gb/s. Featuring High Density Glass Fibre PCB design, assuring the utmost protection against electrical shorts. Includes six USB 3.1 Gen1 (two Front, four Rear) for your convenience. With AMD Ryzen powered series CPUS, you can confidently achieve the dream PC setup.

AMD B450Chipset

AM4CPU Socket

Micro ATXForm Factor

Ultra-fast Data Transfer Speeds with On-board M.2

usb

supports both PCIe Gen3 x4 & SATA3 ASRock B450M-HDV features the PCIe Gen3 x4 Ultra M.2 interface, which propels data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

AMD StoreMI Technology

storemi

The powerful pc tool AMD StoreMI technology automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.

Superior Motherboard Alloy

pcb

SAPPHIRE BLACK PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

fabric density

HIGH DENSITY GLASS FABRIC PCB ASRock features the High Density Glass Fabric PCB design, which reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Support Software and Premium Components

down

TRIPLE MONITOR Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

up

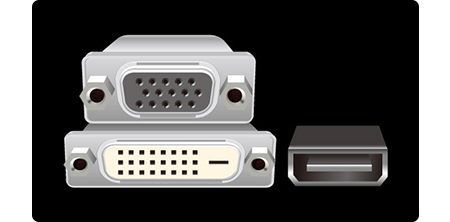

3 GRAPHICS OUTPUTSComplete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

down

DIGI POWERUnlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

down

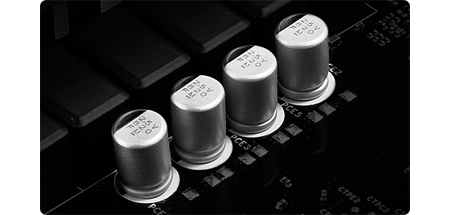

Solid capacitor designASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

up

FULL SPIKE PROTECTIONSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

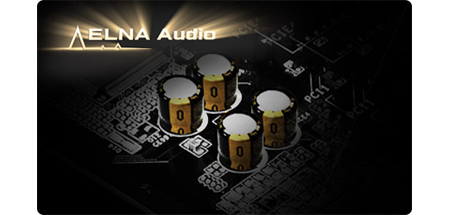

ELNA audio capsASRock applied ELNA audio capacitors on mainstream and entry-level motherboards. Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

down

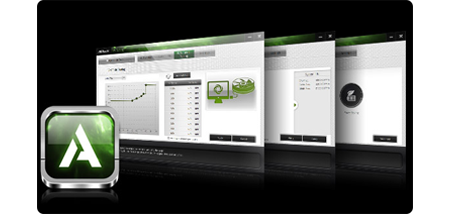

A-tuning softwareA-Tuning is ASRock's multi-purpose software suite with a new interface, more new features and improved utilities.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with the:
ASRock Live Update & APP Shop.

Specifications
Core Specifications
Edition B450M-HDV
Form Factor MicroATX
CPU Socket AM4
Chipset AMD B450
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 2933(OC)
  • DDR4 - 3200+(OC)
Max. Memory Capacity 32GB
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0
  • 1 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 3-pin System Fan Connector
  • 1 x 4-pin (Power)
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Chassis Water Pump/Fan Connector
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 231 x 206 mm
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

Reviews
Questions & Answers

Hi, Will this board support AMD RYZEN 5 2400g straight out the box?

Support without bios update? LN87182 AMD Ryzen™ 5 2400G w/ RADEON™ RX VEGA 11 Graphics, S AM4, Zen, Quad Core, 8 Thread, 3.6GHz, 3.9GHz Turbo, 4MB, 65W, CPU
Asked by: bapsta
Hello, This board lists support for the 2400g from the first BIOS. Regards,
Answered by: JackB
Date published: 2018-10-02
