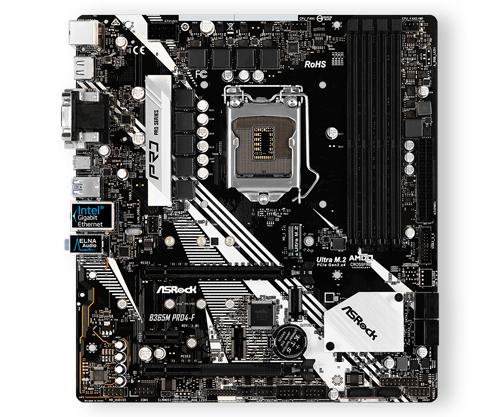

ASRock Intel Core-X B365M Pro4-F MicroATX Motherboard

ASRock B365M Pro4-F, Intel B365, S 1151, DDR4, SATA3, Single M.2, Intel GbE, USB 3.2 A+C, MicroATX

Thumbnail 1 : ASRock Intel Core-X B365M Pro4-F MicroATX Motherboard Thumbnail 2 : ASRock Intel Core-X B365M Pro4-F MicroATX Motherboard Thumbnail 3 : ASRock Intel Core-X B365M Pro4-F MicroATX Motherboard Thumbnail 4 : ASRock Intel Core-X B365M Pro4-F MicroATX Motherboard
Scan code: LN104731 Manufacturer code: 90-MXBB30-A0UAYZ
£68.48Item overdue since 05 September 2020
Pre order
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

ASRock B365M Pro4-F - Intel 9th Gen Micro-ATX Motherboard

ASRock B365M Pro4-F -

Build a Strong FoundationIntroducing the B365M Pro-F Micro-ATX Motherboard a revolutionary B365 motherboard in a small form factor thats ready to transform your PC with design that delivers. The B365M Pro-F houses a LGA 1151 socket which will support Intel 8th & 9th generation CPUs and also features slots for 4x DDR4 DIMM ready to support DDR4 RAM at speeds of up to 2666 MHz with a maximum capacity for 64GB of internal system memory, ASRock have also added support for Intel Optane, LAN and AMD CrossFire allowing you to get more stable performance throughout your system. It doesn’t stop there, ASRock B365m also contains all the connectors you could need including 6X Sata 3, 1x Ultra M.2 for all of your storage needs.

Intel B365Chipset

1151CPU Socket

8th & 9th Gen IntelCompatible CPUs

Micro-ATXForm Factor

Ultra-Fast Transfer Speeds with M.2

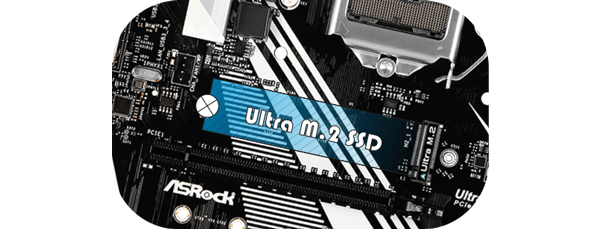

Ultra M.2 Slot

Ultra M.2 PCIe Gen3 X4 The B365M Pro-F features an PCIe Gen3 x4 Ultra M.2 Interface capable of transfer speeds of up to 32GB/s, and is compatible with ASrock's U.2 kit for installing some of the worlds fastest U.2 PCIe Gen3 X4 SSDs.

Get Blazing-Fast Internet Speeds Whilst Gaming

Intel Gigabit LAN

Intel Gigabit LAN Intel LAN provides the best throughput performance, much lower CPU utilisation, enhanced stability and is able to deliver the ultimate online users.

Step-Up your PC Performance

Optane Memory Supported

Intel Optane Memory ReadyIntel Optane Memory speeds up your system, delivering superfast speed and responsiveness without compromising system storage capacity, the Intel Optane module works best when paired with a mechanical HDD to give you the best of both worlds extremely high capacity's at a low cost per gigabyte, by caching important processes and freeing up space on your HHD allowing it to priortise other tasks and thus improving your systems overall performance.

Super Alloy Motherboard

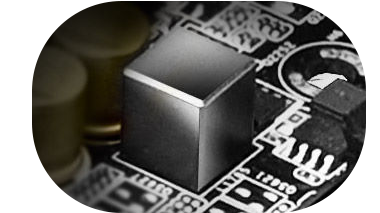

Premium Grade Chokes

Premium 50A Power ChokeWhen compared to traditional chokes, ASrock's premium 50A power chokes make saturation current up to 3x three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Blacked out PCB

Sapphire Black PCBASRock have blacked out their new sapphire PCB to represent the rock solid quality of the components they use and to give the motherboards a more mysterious look.

High Density PCB

High Density PCBThe B365m Pro4-f uses a high density glass fibre PCB design that reduces the gaps in the layers of the PCB to protect the motherboard from shorts caused by high humidity.

No Limit to The Longevity of your Motherboard

back

Hybrid Digi PowerUsing a next generation Hybrid Digi Power design, the B365 Pro4 brings precise control and smooth power. It delivers efficient and clean power to the CPU, and ensures the stability and lifespan of the motherboard is greatly enhanced.

Surround yourself with Gaming Immersion

4K Recording

Triple Monitor CompatibilityModern day setups have the tendency to include multi-monitor setups, well with the B365M Pro4-F you can connect up to three monitors to separate display interfaces located on the rear I/O panel, get the setup you deserve.

Comprehensive I/O Panel

4K Recording

All the connections you could wantWith the B365M Pro4-F, ASRock have included a full comprehensive I/O panel containing the three most used display connections D-SUB, DVI-D and HDMI but that isn't all they have also incorporated a lightning fast USB 3.2 Type-C port, 4x USB 3.2 Type-A Ports and 2x USB 2.0 ports giving you a full choice of ports to plus in your external peripherals.

High-Quality Audio to Satisfy your Ears

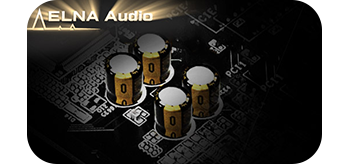

elna capacitors

ELNA AUDIO CAPS Who says high quality audio is only available on high-end motherboards? ASRock has installed ELNA audio capacitors on mainstream and entry-level motherboards. Compared with traditional solid caps, the leakage current of ELNA audio is merely 3uA. This is the key to reduce noise level significantly.

Optimise the Performance of your Motherboard

live update app shop

LIVE UPDATE & APP SHOP ASRock Live Update & APP Shop have been designed to make using your motherboard as convenient as possible. They offer a plethora of apps and support software that you can download. You can also easily optimize your system and keep your motherboard up to date.

Safeguard your Board from Damaging Surges

Full spike protection

FULL SPIKE PROTECTION Your motherboard has some sensitive digital components that can be vulnerable to power surges. The excessive current can cause your system to malfunction, so ASRock's Full Spike Protection features a range of technologies to prevent your motherboard's components from being damaged by unexpected voltage spikes.

Specifications
Core Specifications
Edition B365M Pro4-F
Form Factor MicroATX
CPU Socket 1151
Chipset Intel B365
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 64GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support 4-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Rapid Storage Technology 17
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion/Speaker Header
  • 3 x Chassis Water Pump/Fan Connector
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x DVI-D
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x RJ-45 with LED
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 244 x 229 mm
Note
Additional Information
Scan Code LN104731
Model Number 90-MXBB30-A0UAYZ
GTIN 4717677339079
