Scan code: LN98068 Manufacturer code: 90-MXB9W0-A0UAYZ

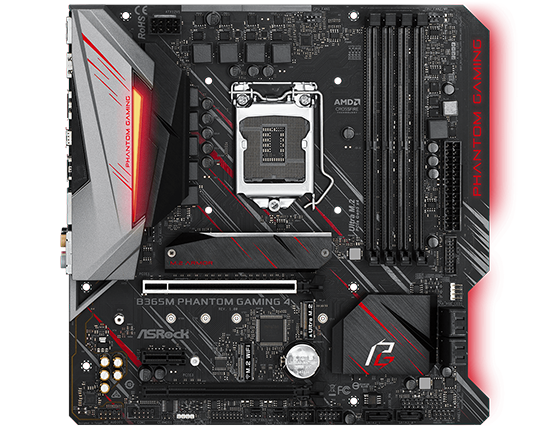

ASRock Intel Coffee Lake B365M Phantom Gaming 4 Micro ATX Motherboard

ASRock B365M Phantom Gaming 4, Intel B365, S 1151, DDR4, SATA3, Dual M.2, 2-Way CrossFire, GbE, USB 3.1 G1 A+C, MicroATX

Thumbnail 1 : ASRock Intel Coffee Lake B365M Phantom Gaming 4 Micro ATX Motherboard Thumbnail 2 : ASRock Intel Coffee Lake B365M Phantom Gaming 4 Micro ATX Motherboard Thumbnail 3 : ASRock Intel Coffee Lake B365M Phantom Gaming 4 Micro ATX Motherboard Thumbnail 4 : ASRock Intel Coffee Lake B365M Phantom Gaming 4 Micro ATX Motherboard ASRock Intel Coffee Lake B365M Phantom Gaming 4 Micro ATX Motherboard : video thumbnail 1
Scan code: LN98068 Manufacturer code: 90-MXB9W0-A0UAYZ
£81.98Item currently awaiting an ETA
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Revolutionary B365 Motherboards: Your PC Transformed with Style for a More Reliable Design That Delivers

ASRock VR Ready: Armour Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.

A Solid M.2-Solution Performer

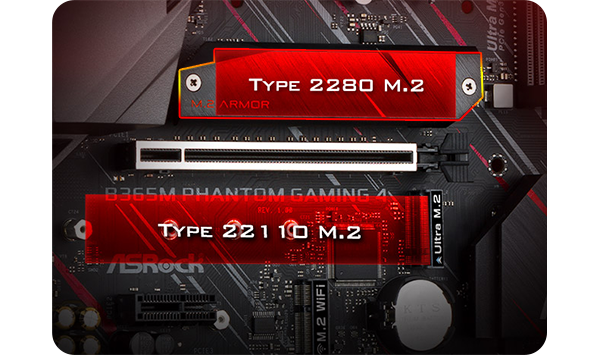

Dual M.2 for SSD, Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfil the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

M.2 Armour
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armour solution that makes SSDs to run in a certain low temperature.

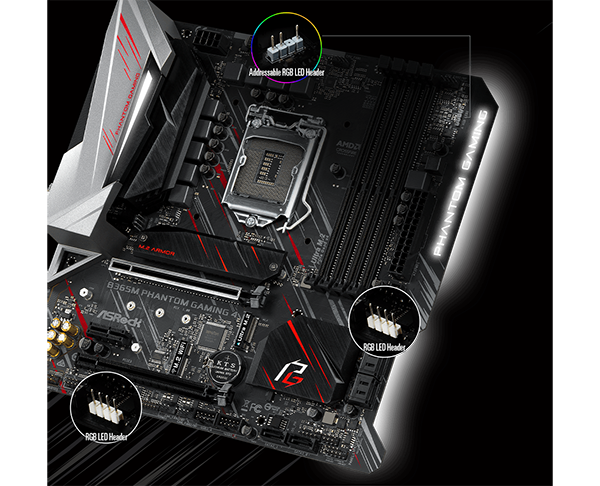

Rule Your Own Lighting Way: Polychrome RGB
In addition to the built-in RGB illumination, it also features on-board RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is a fast and easy way to identify the source of the problem.

Intel Ethernet: Stable & Reliable
Intel® LAN provides the best throughput performance, lower CPU utilization and enhanced stability and is able to deliver ultimate network experience to users!

Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

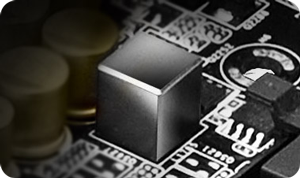

Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

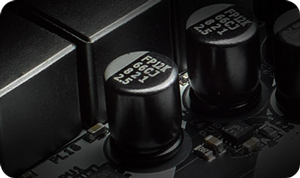

Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

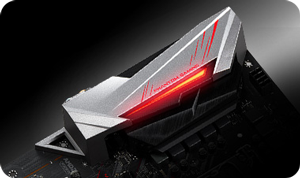

I/O Armour
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

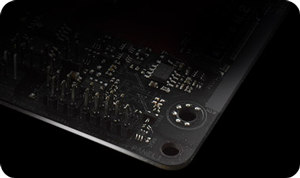

Matte Black PCB
A new mysterious matte black and copper colour scheme to match the prestigious components on ASRock's high-end motherboards.

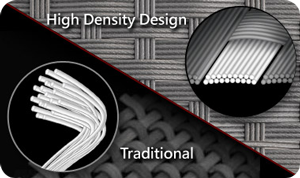

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

M.2 (KEY E) for WiFi
Besides the on-board LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. Features • Supports 9th & 8th Gen Intel® Core™ processors (Socket 1151).
• Supports DDR4 2666 MHz.
• 2x PCIe 3.0 x16, 1x PCIe 3.0 x1, 1x M.2 Key E for WiFi.
• AMD Quad CrossFireX™.
• Graphics Output Options: HDMI, Display Port.
• 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Supports DTS Connect.
• 6x SATA3, 1x Ultra M.2 (PCIe Gen3 x4), 1x Ultra M.2 (PCIe Gen3 x4 & SATA3).
• 7x USB 3.1 Gen1 (2x Front, 4x Rear, 1x Type-C).
• Intel® Gigabit LAN.
• ASRock Polychrome SYNC.
Specifications
Core Specifications
Edition B365M Phantom Gaming 4
Form Factor MicroATX
CPU Socket 1151
Chipset Intel B365
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2230 (Occupied by WiFi Card)
  • 1 x M.2, 2242/2260/2280, PCIe 3.0
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0/SATA
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology 17
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Audio Header
  • 1 x Post Status Checker (PSC)
  • 2 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x Front Speaker Out
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen1 Type-C
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 244 x 242 mm
Note
Additional Information
Scan Code LN98068
Model Number 90-MXB9W0-A0UAYZ
GTIN 4717677338041
