ASRock Intel Coffee Lake B365 Phantom Gaming 4 ATX Motherboard

ASRock B365 Phantom Gaming 4, Intel B365, S 1151, DDR4, SATA3, Dual M.2, 2-Way CrossFire, Intel GbE, USB 3.1 G2 A+C, ATX

Thumbnail 1 : ASRock Intel Coffee Lake B365 Phantom Gaming 4 ATX Motherboard Thumbnail 2 : ASRock Intel Coffee Lake B365 Phantom Gaming 4 ATX Motherboard Thumbnail 3 : ASRock Intel Coffee Lake B365 Phantom Gaming 4 ATX Motherboard Thumbnail 4 : ASRock Intel Coffee Lake B365 Phantom Gaming 4 ATX Motherboard ASRock Intel Coffee Lake B365 Phantom Gaming 4 ATX Motherboard : video thumbnail 1
Scan code: LN98065 Manufacturer code: 90-MXB9U0-A0UAYZ
Was: £103.49
£99.98
From £8.98 / month (APR 14.9%)
Monthly Payment: £17.35
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £104.09
Monthly Payment: £8.98
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £107.69
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Oct 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

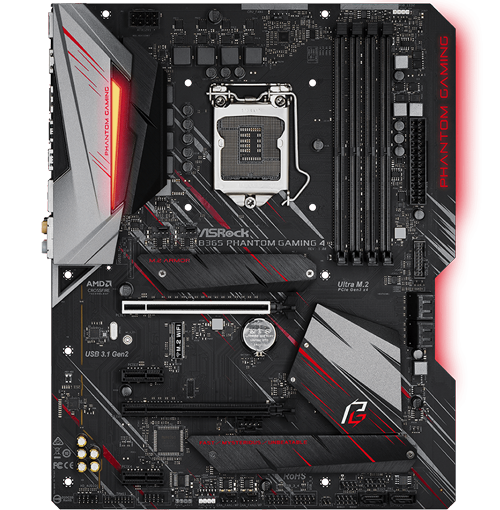

ASRock B365 Phantom Gaming 4 Intel ATX Motherboard

asrock motherboard

Support for 8th and 9th Gen Intel Core ProcessorsASRock have built the B365 Phantom Gaming 4S for high end gaming and content creation as it support the latest 9th Gen Intel Processors. It support DDR4 2666MHz for a fast and responsive system as well as having a slots for super quick M.2 Storage. The ASRock Phantom Gaming Board features onboard RGB headers that allow you to connect multiple LED devices to your motherboard allowing you to create your style of lights and effects in your system.

Please note: Z390 Motherboards are compatible with Intel 8th Gen 'Coffee Lake' and 9th Gen CPUs. Although these Intel Z390 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen Intel CPUs.

Intel B365Chipset

1151CPU Socket

8th & 9th Gen IntelCompatible CPUs

ATXForm Factor

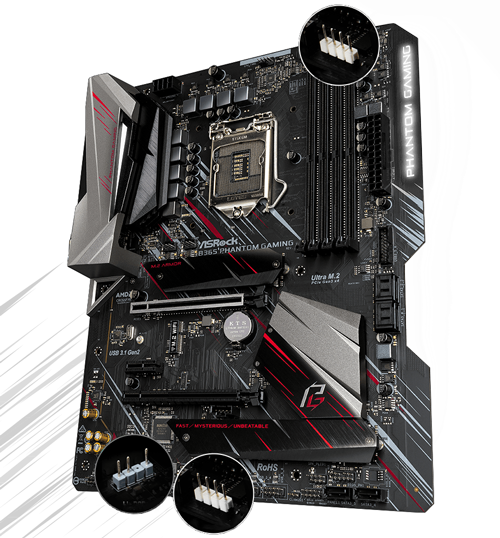

Includes PolyChrome RGB for Various Lighting and Effects

asrock motherboard

Style your Rig the way you want This motherboard features onboard RGB headers and an addressable RGB header that allow your motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis etc. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

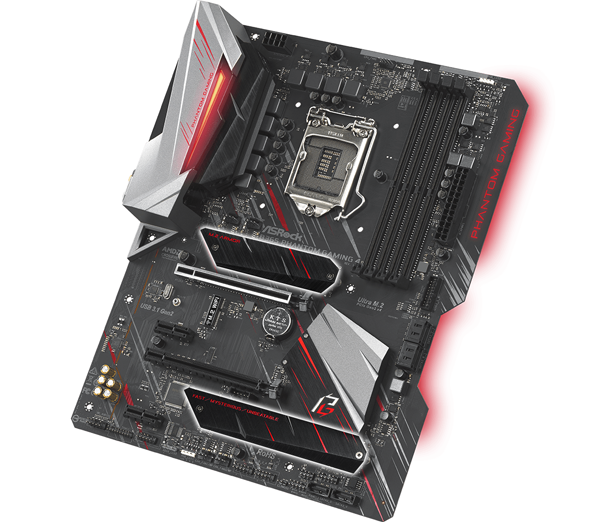

Support for PCIe Gen3 x4 Interface and SATA3 M.2

m.2 storage

Get ultra fast transfer speeds of 32Gb/s Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

The Core Features of the ASRock Z390 Phantom Board

up

Intel LANIntel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users

up

Intel Optane memory ReadySupports Intel Optane memory technology and Intel Optane storage technology that redefines a new standard of high performance and responsiveness.

A Motherboard Built for Stability and Durability

aluminium alloy

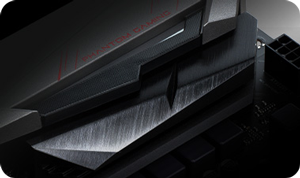

XXL Aluminium Alloy HeatsinkExtra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

powerchoke

Premium 50A Power ChokeCompared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better.

12k caps

Nichicon 12K Black CapsSupreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other motherboards that merely have lifespans of around 10,000 hours.

armour

I/O ArmourA new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

pcb

Matte Black PCBA new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

glass

High Density Glass Fabric PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Specifications
Core Specifications
Edition B365 Phantom Gaming 4
Form Factor ATX
CPU Socket 1151
Chipset Intel B365
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 22-30/42/60/80, PCIe Gen3/SATA
  • 1 x M.2, 22-30/42/60/80/110, PCIe Gen3
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology 17
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Audio Header
  • 1 x Post Status Checker (PSC)
  • 2 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x Front Speaker Out
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN98065
Model Number 90-MXB9U0-A0UAYZ
GTIN 4717677338034
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
