Scan code: LN130674 Manufacturer code: 90-MXBL00-A0UAYZ

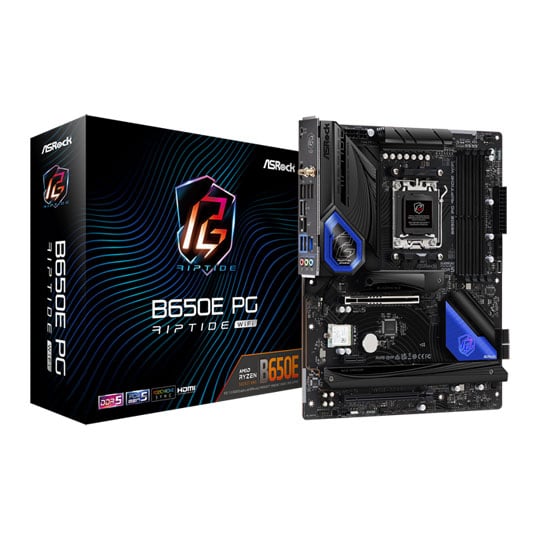

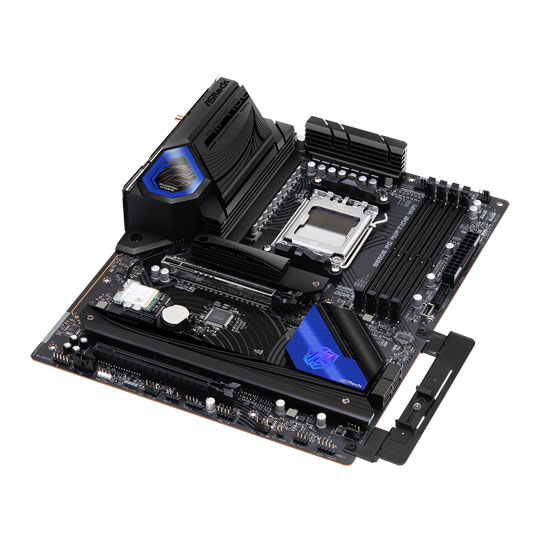

ASRock AMD ATX Motherboard

ASRock AMD B650E PG RIPTIDE WIFI, AMD B650, S AM5, DDR5, PCIe 5.0, 3x M.2, ax WiFi/2.5GbE, AMD EXPO™, ATX

Thumbnail 1 : ASRock AMD  ATX Motherboard Thumbnail 2 : ASRock AMD  ATX Motherboard Thumbnail 3 : ASRock AMD  ATX Motherboard Thumbnail 4 : ASRock AMD  ATX Motherboard
Scan code: LN130674 Manufacturer code: 90-MXBL00-A0UAYZ
£209.99Item due on 25 April 2024
Due 25th Apr
From £10.26 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £19.03
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £228.30
Monthly Payment: £10.26
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £246.05
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

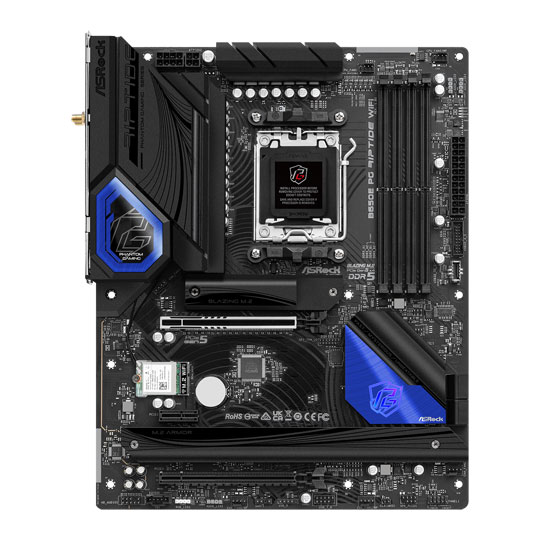

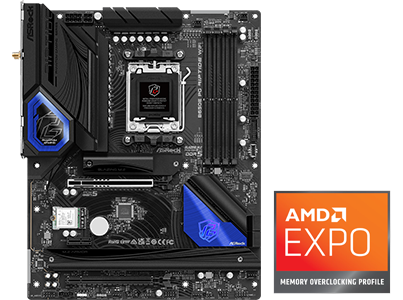

B650E PG Riptide WiFi 7000 Series ATX Motherboard from ASRock

ASRock PG Riptide motherboard

Get the latest hardware for the latest CPU Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of the sea’s double-side - calm and unlimited strength. It is built for AMD Ryzen™ 7000 Series Processors and supports DDR5 6600+(OC) memory. Enjoy your custom light show with ASRock Polychrome Sync, a great application to sync your RGB hardware. The B650E PG Riptide offers 1x PCIe 5.0 slot and a Blazing M.2 Gen5 slot with heatsink for improved heat dissipation and ultra fast performance. Get super fast and reliable connections with WiFi 6E and Killer 2.5G Ethernet.

AMD B650Chipset

AM5CPU Socket

Ryzen™ 7000 Series ProcessorsCompatible CPU

ATXForm Factor

Synchronise your Devices with Polychrome RGB


Get incredible control over your lighting and effectsThis motherboard features onboard RGB headers and an addressable RGB header that allows the motherboard to be connected to compatible LED devices such as strips, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across Polychrome RGB Sync to provide a unique light show that spreads throughout the system.

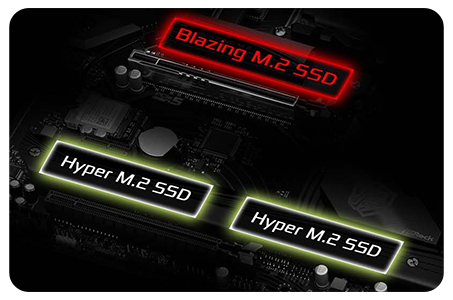

High Speed M.2 Solution

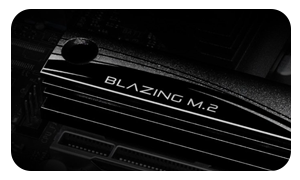

PCIe Gen5 Blazing M.2

PCIe Gen5 Blazing M.2The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generations. With a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Enhanced Performance & Unmatched Overclocking Capabilities

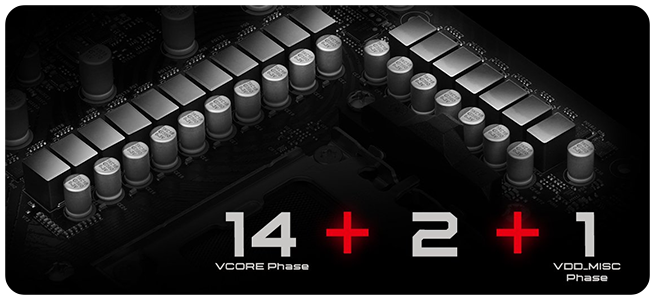

14+2+1 Power Phase

Sturdy 14+2+1 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.


DDR5 EXPO & XMP SupportAll B650E motherboards are built with 8-Layer and premium low-loss materials. Enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/Intel® XMP capable and overclocking can be made so affordable and simple.

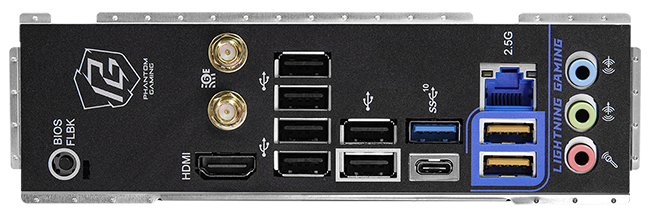

Flexible Integrated I/O Shield

IO Shield

Adjustable Fit for easy installationASRock go above and beyond expectations when it comes to the I/O shield. Aside its sleek aesthetic, the shield reserves more tolerance space for greater adjustability during installation, thus fitting the chassis perfectly without any mechanical issues.

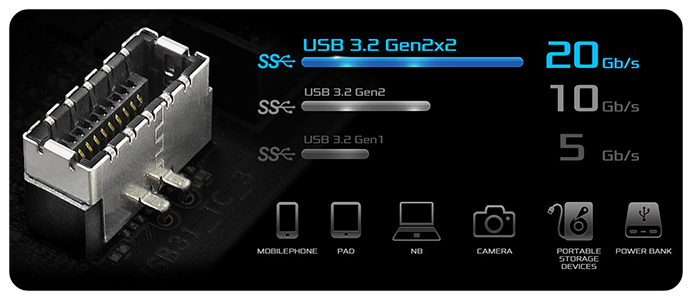

Support for Next Generation USB 3.2 Devices

Front USB 3.2 Gen2x2 Type-C

Front USB 3.2 Gen2x2 Type-CThe latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.


Boost Your Networking Speeds

2.5 Gb/s LAN

Killer™ Ethernet E3100GThe Killer E3100G 2.5 Gbps Ethernet controller is designed specifically for competitive gamers and performance-hungry users. The enhanced detection and prioritisation engine provides the ultimate networking experience for gaming and multimedia applications.

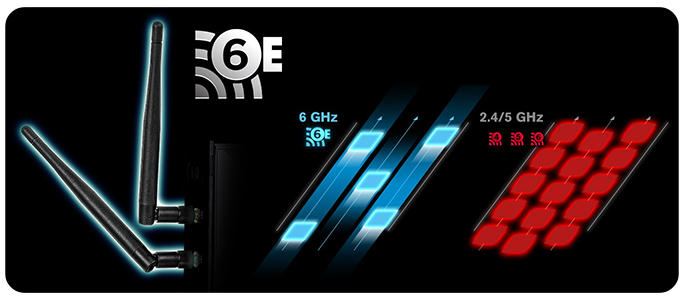

Experience the Latest in Wi-Fi Technology

Wi-Fi 6E 802.11ax

Wi-Fi 6E 802.11axWiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving even better and faster internet traffic. In addition to delivering higher speeds, WiFi 6E also enhances lower latency and supports service levels that are equivalent to 5G networks.

Premium High Definition Sound

Nahimic Audio

Nahimic AudioWhether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

B650E PG Riptide Motherboard Features


Smart Power Stage
Monitors the current and temperature of each phase, delivering premium power to the CPU with enhanced performance and OC capability.

GPU Holder

Card Holder
Install your GPU on the holder, connect it to the motherboard and chassis with screws, slide up and down for the required height.

BIOS Flashback

Convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply.

Blazing OC Tuner

OC Tuner
Allows AM5 CPU overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to set up.

XXL M.2 Heatsink

The extra large aluminium alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible. It is able to give better stability while maintaining top performance.

Protection Circuit

Protection Circuit
ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowering the risk of damaging your memory module during removal or installation.

Core Specifications
Edition B650E PG Riptide WiFi
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 6600+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
AMD CrossFire Support Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x2/SATA
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
  • 1 x M.2, A-E Key, 22-30, PCIe, for WiFi+BT Card
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x1
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 4 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 1 x RGB LED connector
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11ax WiFi 6E + BT5.2

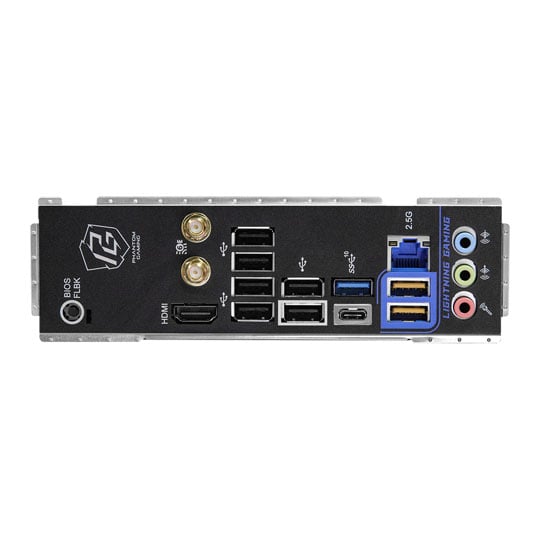

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x RJ-45
  • 6 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x WiFi / Bluetooth Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Additional Information
Scan Code LN130674
Model Number 90-MXBL00-A0UAYZ
GTIN 4710483940743
