Scan code: LN110277 Manufacturer code: 90-MXBDU0-A0UAYZ

AsRock AMD A520M Pro4 MicroATX Motherboard

AsRock A520M Pro4, AMD A520, s AM4, DDR4, SATA3, Dual M.2, Realtek GbE, USB 3.2 Gen1, MicroATX

Thumbnail 1 : AsRock AMD A520M Pro4 MicroATX Motherboard Thumbnail 2 : AsRock AMD A520M Pro4 MicroATX Motherboard Thumbnail 3 : AsRock AMD A520M Pro4 MicroATX Motherboard Thumbnail 4 : AsRock AMD A520M Pro4 MicroATX Motherboard
Scan code: LN110277 Manufacturer code: 90-MXBDU0-A0UAYZ
£85.99
Order now and receive it by Tuesday, 3rd August
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 3rd Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

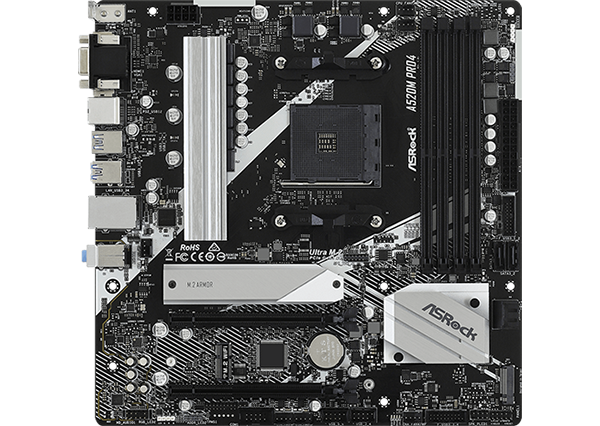

ASRock A520M Pro 4 Motherboard for 3rd Gen Ryzen CPU's

ASrock A520M motherboard

All the Essentials You Need For ComputingThe ASRock A520M Pro4 is a great Micro ATX motherboard for professionals who command an excellent reliability for their system. Prepared with two M.2 slots, one of which supports data transfer speeds up to 32Gb/s and compatible with the U.2 kit. The other supports PCIe Gen3 x2 16Gb/s transfer speeds. Featuring high quality manufactured 2oz Copper, for PCB layers providing lower temperatures and higher energy productivity for overclocking. With plenty of connectivity options for storage and RGB connectors, users can accomplish anything and everything with style. Nahimic Audio also gives you an engaging listening experience which is vibrant and rich with details.

AMD A520Chipset

AM4CPU Socket

Micro ATXForm Factor

Experience Great Sound with Nahiminc Audio

usb

M.2 Armor thermal solution provides more stability Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

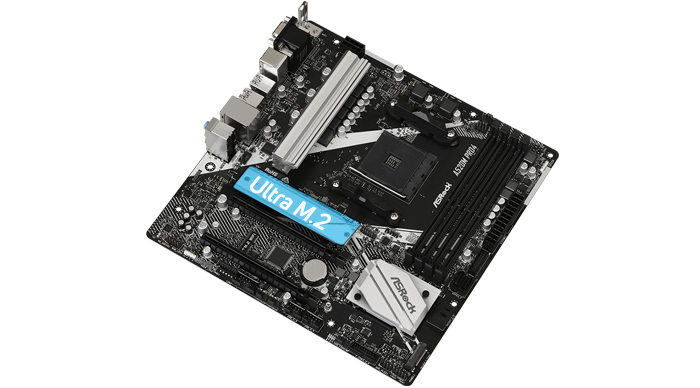

Faster Speeds with Dual M.2 Connectors

usb

M.2 Armor thermal solution provides more stability One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. The other one supports PCIe Gen3 x2 16Gb/s transfer speed. Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

Enhance your Productivity with Three Graphics Outputs

usb

Impressive data transfer speeds up to 32Gb/s Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. Plus the HDMI port supports 4K resolution. Plus the HDMI port supports 4K resolution. The motherboard also supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

On-board Dual USB 3.1 Gen2

vr

up to 10 Gbps data transfer rates The ASROCK A520 motherboard features a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates.

Superior Motherboard Alloy

power choke

Premium 50A Power Choke Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

pcb

SAPPHIRE BLACK PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

fabric density

HIGH DENSITY GLASS FABRIC PCB ASRock features the High Density Glass Fabric PCB design, which reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Support Software and Premium Components

up

FULL SPIKE PROTECTIONSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with the:
ASRock Live Update & APP Shop.

Specifications
Core Specifications
Edition A520M Pro4
Form Factor MicroATX
CPU Socket AM4
Chipset AMD A520
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4466(OC)
  • DDR4 - 4533+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1200A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.4
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-80, PCIe Gen3/SATA
  • 1 x M.2, 22-80, PCIe Gen3x4
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x2 Bandwidth)
SATA Support SATA3
RAID Support via RAID-0/RAID-1
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Front Panel Connector
  • 1 x Power LED / Speaker Header
  • 2 x RGB Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H-C (Gigabit LAN)
Rear I/O Connectors
  • 1 x 7.1 Audio I/O
  • 1 x DisplayPort 1.4
  • 1 x HDMI
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 2 x USB 2.0
  • 5 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 1 x VGA
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions
Note Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.
Additional Information
Scan Code LN110277
Model Number 90-MXBDU0-A0UAYZ
GTIN 4710483932076
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
