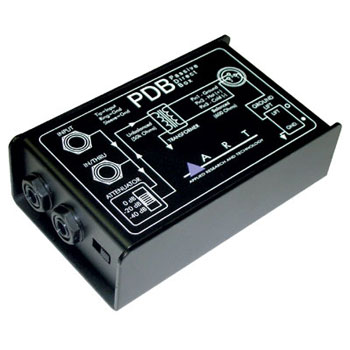

ART PDB - Passive D.I. Box

Scan code: LN38456 Manufacturer code: PDB Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 22nd Mar 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview The PDB™ Passive Direct Box is a rock solid, roadworthy DI for connection of the outputs of electronic musical instruments (or other audio sources) to the balanced inputs of mixer consoles and other balanced inputs.

The PDB™ also allows connection of a music source to an instrument amplifier while simultaneously patching it to a mixer.
Features Applications:
• Electric guitar and bass pick up output signals - The high impedance signal from a guitar or bass guitar pickup is translated by the PDB™ into a low impedance balanced signal required by mixing consoles.

• Keyboards and line level signals - The PDB™ automatically balances and matches the line level outputs of modern electronic keyboards. If you are using a multiple keyboard setup and your keyboards are all plugged into a single instrument amplifier, the PDB™ can be used to replace individual direct boxes. Simply send the output of the instrument amplifier to the PDB™ and then to the console (instead of a separate DI box for each keyboard).

• DJ console output signals - DJ mixers often supply only an unbalanced –10dB signal. The PDB™ converts this signal to a balanced line level signal before it reaches the console, while providing a convenient method of connector transition with the capability to run long cables.

• Speaker level signals - The PDB’s ability to accept speaker level inputs from a power amplifier’s output allows post-amplifier, post eq and effects signals to be fed directly to the console. In this manner, a particular effect or amplifier sound can be sent directly to the mix.
Product Type
PC Interface N/A
Assignable Faders
Assignable Knobs
Assignable Pads
Connectivity (Input) 1 x Analog (Unbalanced)
Connectivity (Output) 1 x XLR
Sample Rate
Bit Rate N/A
Frequency Response (Input) N/A
Frequency Response (Output) N/A
Maximum Input Level N/A
Maximum Output Level
Dynamic Range
Dimensions (mm) 76 x 127 x 51 mm (WxHxD)
Misc. Notes
Package Type Retail

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
7 days
RTB Period:
24 months
