ART - MacroMIX, 4-Channel Line Mixer
ART - MacroMIX, 4-Channel Line Mixer, 2 Channels of RCA Inputs, 2 RCA Outputs, Includes Power Adapter
- By DPD On 30th Nov To 1st Dec to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info
4-Channel Personal Mixer

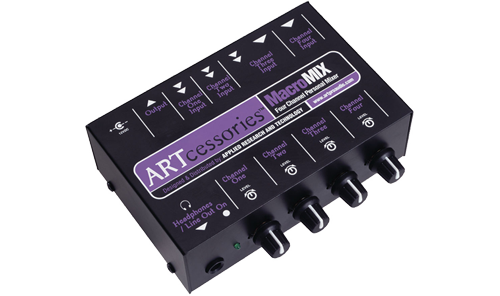

ART - MacroMIX
4-Channel Line MixerART’s MacroMIX is versatile 4-channel utility mixer designed to route numerous line-level audio devices to one destination. MacroMIX is a popular choice for users who wish to mix the output of a media player for example, a synthesizer or perhaps an amplifier’s line out to a cassette deck.
MacroMIX sports 4 input channels. Channels 1 and 2 feature stereo RCI inputs, whilst channel 3 offers the choice of stereo RCA inputs or a singular ¼” input. Lastly, channel 4 boasts an unbalanced ¼” input. Each channel features its own independent level control.
Two RCA line outputs are provided, and a 1/4" headphone output also doubles as a secondary line-level output when necessary. The MacroMix is powered with a 12 VDC power supply (included).
+40dBMaximum Gain
10K ΩInput Impedance
> 90dBSignal To Noise Ratio
at a glance
• 2 Channels of RCA Inputs
• 1 Channel for RCA & 1/4" Inputs
• 1 Channel for Unbalanced 1/4" Input
• Level Knobs on Each Channel
• 1/4" Line/Headphone Output
• Includes Power Adapter
The Tech Spec
| Features | Specification | I/O | 6 x RCA inputs (stereo pairs) 1 x 1/4" TRS input, phone type 1 x 1/4" TS input, phone type 2 x RCA outputs (stereo pair) 1 x 1/4" TRS line/headphone output, phone type |
|---|---|
| Signal-to-Noise Ratio | < 90 dB |
| Maximum Gain | +40 dB |
| Input Impedance | 10 kOhms |
| IMD SMPTE | < 0.008% |
| Total Harmonic Distortion | +< 0.008% |
| Power Requirements | 12 VDC |
| Dimensions | 5.6 x 3.8 x 1.8" / 143 x 92 x 45 mm |
| Weight | 25.6 oz / 725.0 g |
