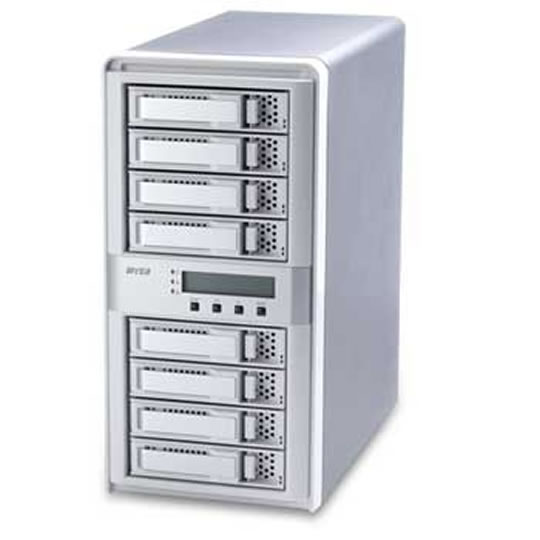

Areca ARC-5040 8-bay Sata II Hi-Speed Hot Swap Raid USB 3 & 2/eSATA/Firewire 800 /iSCSI/AoE

Product Overview The ARC-5040 is the most complete 8-bay 3.0 Gbps SATA drive subsystem with RAID control capabilities. The ARC-5040 unleashes a truly innovative multiple hosts (with 3.0Gbps eSATA, USB3.0, FireWire 800, iSCSI/AoE and USB2.0) solution for both PC and Mac. The eSATA port delivers in excess of 220 MB per second (MB/sec) sustained RAID 0 reads and over 210 MB/sec RAID 0 sequential writes. High transfer rates make ARC-5040 well suited for audio/video application especially the rapidly growing demand from the Mac Video Editing markets. The Intelligent cooling continuously adapts to environmental conditions by automatically controlling the speed of the cooling fans. This super silent design, optimizing balance between noise reduction and necessary cooling, help the resellers to offer the cost effective storage solution to the end customers.
Features • 400MHz storage I/O processor
• NVRAM for events log & transaction log
• 128MB on-board cache memory
• Write-through or write-back cache support
• Redundant flash image for subsystem availability
• RAID level 0, 1, 10, 1E, 3, 5, 6, Single Disk or JBOD
• Multiple RAID selection
• Up to 16 volumes per RAID subsystem
• Online array roaming
• Offline RAID set
• Online RAID level/stripe size migration
• Online capacity expansion and RAID level migration simultaneously
• Online dynamic volume set capacity expansion
• Instant availability and background initialization
• Automatic insertion/removal detection and rebuild
• Greater than 2TB per volume set
• Support SMART, NCQ, and OOB staggered spin-up capable drives
