Scan code: LN138638 Manufacturer code: APTC-PF30517.21

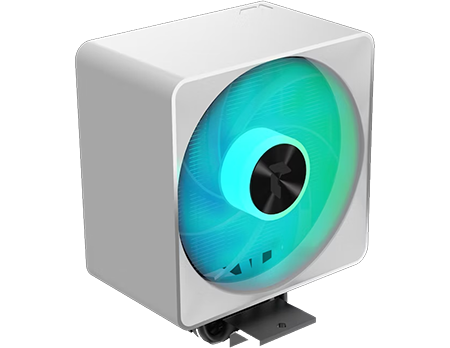

APNX AP1-V ARGB White CPU Air Cooler

APNX AP1-V ARGB Single Tower CPU Cooler, White, 5 Heatpipes, 120mm Fan, 600~1800rpm, 245W TDP, PWM

Thumbnail 1 : APNX AP1-V ARGB White CPU Air Cooler Thumbnail 2 : APNX AP1-V ARGB White CPU Air Cooler Thumbnail 3 : APNX AP1-V ARGB White CPU Air Cooler Thumbnail 4 : APNX AP1-V ARGB White CPU Air Cooler
Scan code: LN138638 Manufacturer code: APTC-PF30517.21
Order in the next 2 hrs 8 mins and get it tomorrow
Get it Tomorrow, 12 DecIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 12th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

APNX AP1 High Performance 5 Pipe CPU Air Cooler - White


Ready for Any Task Get cutting edge cooling performance with the APNX AP1-V CPU Cooler. Utilising innovative techniques and a modern aesthetic, this cooler brings thermal power that is both effective and beautiful. The PWM ARGB fan comes pre-installed, to make mounting this CPU cooler simple and easy. Plus, the APNX AP1-V is compatible with a range of both Intel and AMD processors.

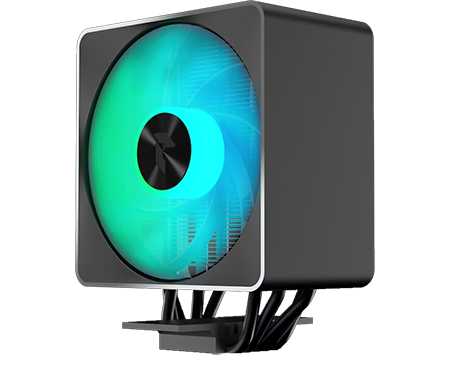

Sleek and Stylish

4K Recording

minimal, clean designUnlock thermal power that is cool in both senses to your gaming PC, with the APNX AP1-V CPU Cooler. Constructed from premium materials, this cooler is housed in an aluminium frame, with a sleek finish and curved edges, perfect for PCs and gaming set-ups.

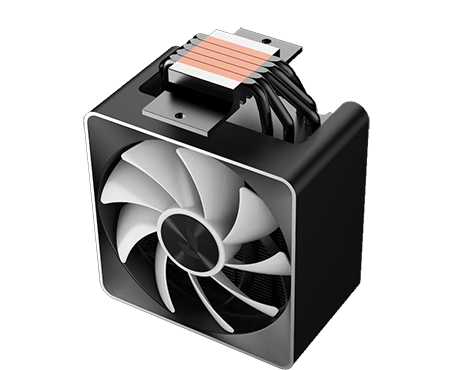

High Performance Cooling

4K Recording

meeting the demandThe APNX AP1-V has been engineered with cutting edge cooling performance. It utilises a five 6mm heat pipe design with Heat Core Touch Technology to efficiently dissipate heat away from your CPU. HCTT is a result of precision engineering, achieving a seamless connection with your CPU. This optimises thermal conductivity whilst also maintaining stable operating temperatures.

Thanks to these innovations, the APNX AP1-V can tackle a massive amount of heat. It has a total TDP of 245W, an enhanced heat capacity. This allows your PC to keep up with even the most demanding processors.

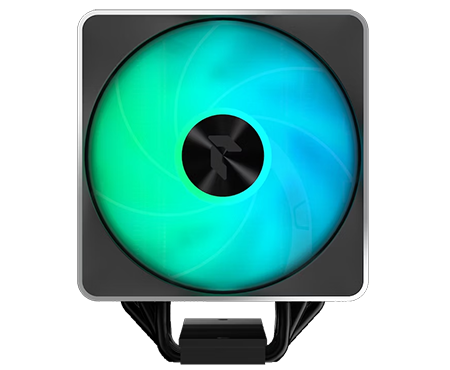

Illuminated in Colour

4K Recording

PWM ARGB FANExhausting the heat from this unit is a 120mm PWM ARGB fan. Equipped with a fluid dynamic bearing, this fan has great longevity and has been optimised for smoother and quieter performance overall. It operates between 600 and 1800RPM, with a maximum airflow of 76.3CFM and static pressure of 3.36mmH2O. What’s more, the maximum noise level is just 32.8dBA, for whisper quiet cooling even at top speeds.

Cooler Specifications
Edition AP1-V ARGB
Cooler Form Factor Single Tower
Heatpipes 5
Cooler Features
  • Aluminium Fins
  • Aluminium Heatsink
  • Direct Contact Heatpipes
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1200
  • 1700
  • AM4
  • AM5
Max. TDP 245W
Fan Specifications
Included Fan Configuration 1 x 120mm w/ Addressable RGB LEDs
Fan Edition
PWM Fan Yes
Fan Bearing Type Fluid Dynamic Bearing
Fan Colour Translucent
LED Lighting Addressable RGB
Fan/Pump Connectors 1 x 4-pin PWM
Max. Fan Speed 600 ~ 1800 rpm
Max. Fan Airflow 76.3 CFM
Max. Air Pressure 3.36 mm H²O
Max. Sound Level 16.1 ~ 32.8 dBA
Cooler Materials Aluminium
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions
Total Dimensions 129 x 165 x 75 mm (WxHxD)
Additional Information
Scan Code LN138638
Model Number APTC-PF30517.21
GTIN 4711099474370

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
Manufacturer Contact Details
Aerocool Advanced technologies Corp.
Dean Shaw, [email protected]
