Scan code: LN114716 Manufacturer code: GV-R69XTAORUS M-16GD

AORUS AMD Radeon RX 6900 XT MASTER 16GB Graphics Card

AORUS Radeon RX 6900 XT MASTER 16GB GDDR6 Ray-Tracing Graphics Card, RDNA2, 5120 Streams

Thumbnail 1 : AORUS AMD Radeon RX 6900 XT MASTER 16GB Graphics Card Thumbnail 2 : AORUS AMD Radeon RX 6900 XT MASTER 16GB Graphics Card Thumbnail 3 : AORUS AMD Radeon RX 6900 XT MASTER 16GB Graphics Card Thumbnail 4 : AORUS AMD Radeon RX 6900 XT MASTER 16GB Graphics Card
Scan code: LN114716 Manufacturer code: GV-R69XTAORUS M-16GD
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Please Note: Due to delays in the logistics chain stock of this model is going to be in very short supply for the coming weeks and likely wont be available in larger numbers until 2021. As shipments arrive we will list them for sale on the website. Please do not contact customer services about expected shipments and instead refer to the Radeon FAQ page where we will post any available information we have each week.

AORUS AMD Radeon RX 6900 XT MASTER Graphics Card from Gigabyte

Gigabyte AMD Radeon™ RX 6900 XT

Performance to Rule Your Game Deep within the Aorus Dimension, products aren't created; they're crafted, lighting and patterns are digitally mapped with an efficient and free-flowing style. The Aorus RX 6900XT Master has been designed to bring you the top-shelf performance that you deserve. Blast through the latest AAA titles with the breakthrough RDNA2 architecture, 16GB of super-fast GDDR6 memory and with the incredible max-covered cooling to keep all that performance in check along with a durable backplate you can rest assured that this GPU will have your back for years to come. It isn't just the performance thats incredible; the aesthetics are pristine with bright ARGB LEDS and a super intuitive customisable handy LCD screen can be combined with the RGB Fusion 2.0 software to allow you to flex your own style and personality. The AMD Radeon™ RX 6900XT graphics card powers a new generation of competitive and 4K gaming with vivid visuals, and elevated experiences in every game and every frame with 128MB of all new AMD Infinity Cache, DirectX 12/PCIe 4.0 Support and 16GB of dedicated GDDR6 memory. Experience gaming with realistic lighting, shadows, and reflections along with rich detail thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimised for AMD RDNA™ 2 architecture.

5120Stream Processors

16GBGDDR6 Memory

2015 MHzGame Clock

2365 MHzBoost Clock

Max-Covered Cooling

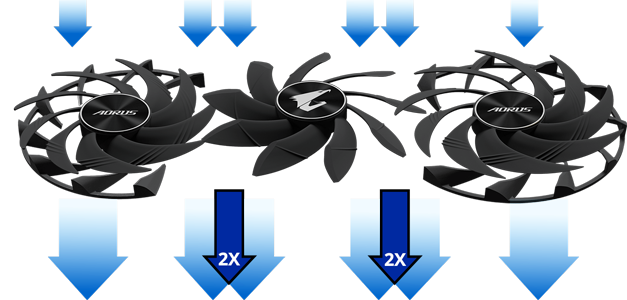

Brilliant Performance Needs Brilliant Cooling The Gigabyte AORUS RX 6900XT MASTER features the max-covered cooling system, featuring 2x 115mm and 1x 100mm unique bladed stack fans with an updated windclaw design allowing the air airflow to complete cover the heatsink.

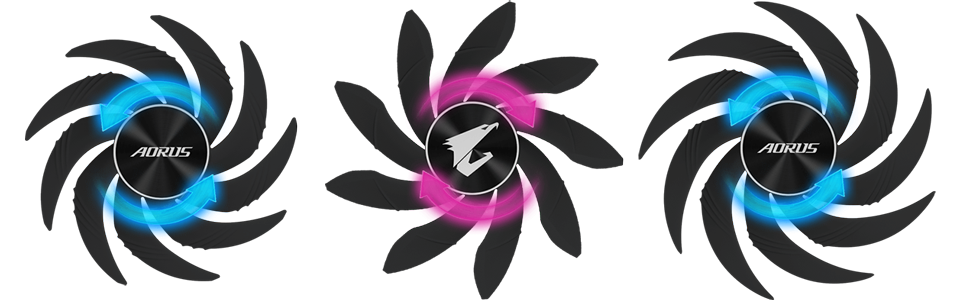

Alternate Spinning Fans by opting to spin the central fan in the opposite direction, the turbulence of adjacent fans is reduced whilst increasing air pressure to give you better throughput.

claw fans

Wind Claw Design This clever intuitive design, reinforces and channels the airflow downwards to ensure full heatsink coverage.

screen

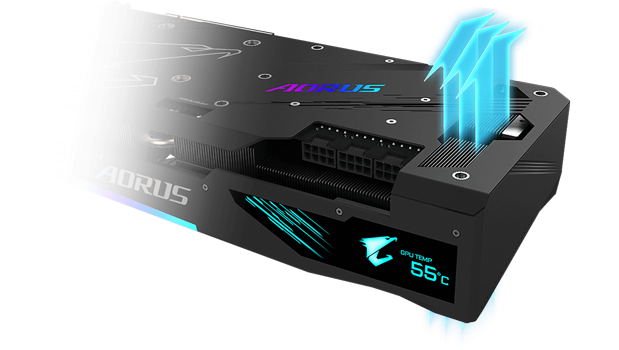

Screen CoolingAorus have opted to implement an extended heatsink to allow the airflow to pass directly though to provide better overall heat dissipation.

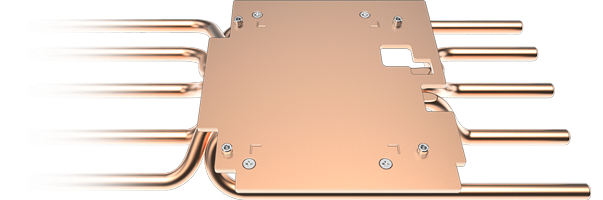

Vapour Chamber & HeatpipeWith direct contact to the GPU and VRAM, the large copper plate combined with the composite heat pipes allows the 30 Series GPUs to efficiently transfer heat generated from the interior cores to the heat sink.

Make it Personal!

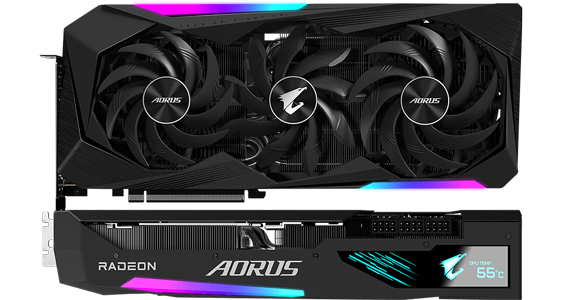

RGB FUSION 2.0With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronise with other AORUS devices.

4K Recording

LED EDGE VIEWA handy LCD monitor has been added to the edge of the GPU and can display various GPU and VRAM status such as temperature, clock, usage and fan speed can be selected for real-time monitoring, or even custom images (supports jpg. bmp and png file types) even custom text labels and gifs. You have the opportunity to really make this card your own.

down
up

A Breakthrough Gaming Architecture

4K Recording

RDNA2 ArchitectureAMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before. The AMD Radeon™ RX 6000 Series graphics cards power a new generation of competitive and 4K gaming with vivid visuals, and elevated experiences in every game and every frame.

AMD FidelityFX

down

Contrast Adaptive SharpeningOFF

up

Contrast Adaptive SharpeningON

Bring Out All The DetailContrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.

down

Shading Rate OverlayOFF

up

Shading Rate OverlayON

Get Performance with QualityUsing RDNA2 architecture and variable rate shading allows fidelityFX to analyse luminance and motion of frames to help optimise rending to ensure you also get optimal performance without reducing image quality.

down

Ambient OcclusionOFF

up

Ambient OcclusionON

Realistic Geometry ShadingAMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.

down

Screen Space ReflectionsOFF

up

Screen Space ReflectionsON

High-Quality Realistic ReflectionsAMD’s implementation of Stochastic Screen Space Reflections (SSSR) delivers high-quality reflections with minimal overhead via an optimised compute shader and AMD RDNA™ architecture-optimised denoising.

down

DenoiserOFF

up

DenoiserON

High-Quality Raytracing and EffectsDenoising optimised for AMD RDNA™ architecture to help improve the visual quality of real-time raytracing and other in-game effects.

down

HDR MapperOFF

up

HDR MapperON

High-Quality HDR GamingOptimised for use with AMD FreeSync™ Premium Pro1 displays, AMD's Luminance Preserving Mapper (LPM) delivers superb HDR and wide color gamut content.

AMD Graphics Card Specifications

AMD Radeon RX Card Specifications
Model RX 6900 XT RX 6800 XT RX 6800 RX 6700 XT RX 5700 XT RX 5600 XT RX 5500 XT RX 580 RX 570
Architecture RDNA2 RDNA2 RDNA2 RDNA2 RDNA RDNA RDNA GCN 4th GCN 4th
GPU Big Navi Big Navi Big Navi Big Navi Navi 10 Navi 10 Navi 14 Polaris XTX Polaris 20 Pro
Stream Processors 5,120 4,608 3,840 2,560 2,560 2,304 21,408 2,304 2,048
Ray Processors 80 72 60 40 0 0 0 0 0
Reference Base Clock 2,015 MHz 2,015 MHz 1,815 MHz 2,321 MHz 1,605 MHz 1,420 MHz 1,607 MHz 1,257 MHz 1,168 MHz
Reference Boost Clock 2,250MHz 2,250 MHz 2,105 MHz 2,581 MHz 1,905 MHz 1,620 MHz 1,845 MHz 1,340 MHz 1,244 MHz
Memory 16GB GDDR6 16GB GDDR6 16GB GDDR6 12GB GDDR6 8GB GDDR6 6GB GDDR6 4GB/8GB GDDR6 4GB/8GB GDDR5 4GB/8GB GDDR5
Memory Controller 256-bit 256-bit 256-bit 192-bit 256-bit 192-bit 128-bit 256-bit 224-bit
TDP 300W 300W 250W 230W 225W 160W 130W 185W 150W
Specifications
Key Specifications
Chipset Radeon RX 6900 XT
Edition AORUS MASTER
Manufacturing Process 7 nm
Microarchitecture RDNA 2
Cores & Clocks
Streams 5120
Core Clock
Boost Clock
Video Memory (VRAM)
Memory Size 16GB
Memory Type GDDR6
Memory Clock 16000 MHz
Memory Speed (Effective with DDR)
Memory Bus 256 Bit
Memory Bandwidth 512 GB/s
Memory Data Rate
Cooling
Cooling Solution Tri Fan (3)
Cooler Design WINDFORCE 3X Stack w/ RGB Fusion 2.0 + Alt. Spin
Fitted/Included Backplate Yes
I/O & Connectivity
Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
Connectivity
  • 2 x DisplayPort 1.4
  • 2 x HDMI 2.1
Visuals
AMD CrossFire Support
AMD Freesync Support Yes
AMD FreeSync Version FreeSync™
HDR Support Yes
Microsoft DirectX Support 12 API
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors 3 x 8-pin PCIe
Graphics Card TDP/Power
Minimum Recommended PSU 850 W
Maximum GPU Temperature
Physical
Width 2.75 Slot
Low Profile Support N/A
Dimensions
Package Type Retail
Additional Information
Scan Code LN114716
Model Number GV-R69XTAORUS M-16GD
GTIN 4719331308544
