Scan code: LN109192 Manufacturer code: GP-ATC800

AORUS CPU Cooler ACT800 Smart RGB Multi Cooler

AORUS ATC800 CPU Inte/AMD Cooler, Smart RGB Functions, Dual 120mm High Airfllow Fans, 6x Performanc Copper Heatpipes

Thumbnail 1 : AORUS CPU Cooler ACT800 Smart RGB Multi Cooler Thumbnail 2 : AORUS CPU Cooler ACT800 Smart RGB Multi Cooler Thumbnail 3 : AORUS CPU Cooler ACT800 Smart RGB Multi Cooler Thumbnail 4 : AORUS CPU Cooler ACT800 Smart RGB Multi Cooler
Scan code: LN109192 Manufacturer code: GP-ATC800
£89.99Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

AORUS ATC800 RGB Cooler for Multi-Core CPUs


Maximum Cooling with an Ultra-Cool Style Experience the superior heat dissipation performance of the GIGABYTE AORUS ATC800 CPU Cooler. This superb smart multi-cooler features a CPU temp/RPM indicator which lights up depending on the increase or decrease in temperatures, a long with an all-new RGB LED design that with RGB Fusion 2.0 users can control the various lighting patterns on the AORYS Falon logo and fan blades. Showcase your own style as this software enables synchronization with compatible peripherals. AORUS ATC800 has been constructed to deliver exceptional cooling for maximum fan airflow – 33% airflow compared to the previous generation, and it features an upgraded 6 direct-touch copper heatsink design for increased contact area.

*Memory compatibility design with a recommended memory heatsink height within 43mm / 37.4mm.

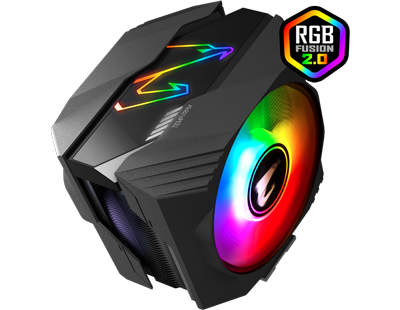

Gorgeous All-New RGB LED Design

RGB Fusion 2.0

Immersive RGB Lighting Light up your system with the all-new RGB LED design of the ATC800 CPU Cooler from AORUS. The RGB Fusion 2.0 Software includes multiple unique colour pattern modes that you can choose from. Watch as the AORUS Falcon logo and fan blades light up and allows lighting synchronization with peripherals so that you can showcase your own style.

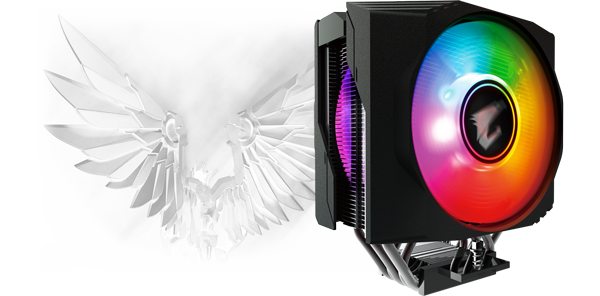

Design Concept the Wings of Excellence

AORUS CPU Cooler Design

Evolved From Traditional Fan Designs The unique fan design of the AORUS ATC800 CPU Cooler and borderless design resembles the AORUS Falcon wings of excellence! The falcon's aerodynamic wings incorporate a multi-layered design which features wing shaped contours with the power to dive through the skies. With sleek and metallic armor, the AORUS Core symbolizes advancement in technology with its futuristic style.

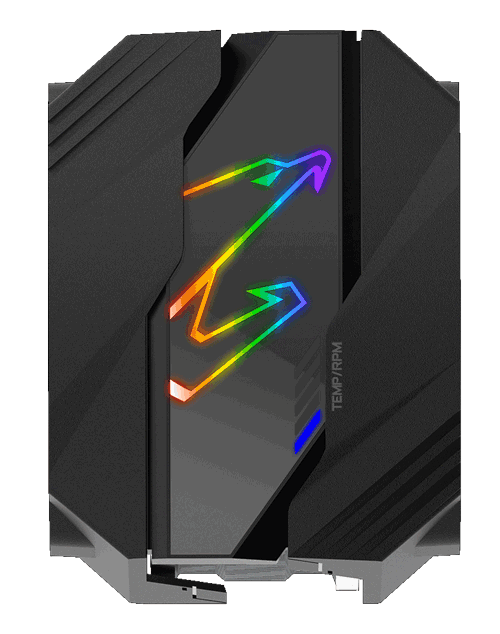

Smart CPU Temperature / RPM Indicator

RGB Indicator

Monitor your CPU Temps and adjust fan speeds The AORUS ATC800 Cooler is an ideal thermal solution and features a unique temperature indicator that enables users to monitor CPU temperatures and alter fan speeds to lower temperatures. This smart detector is displayed through bright lighting that will change according to CPU loading and temperatures. As the RPM increases/decreases the lighting indicator bars begin to light up or down and the an speed control function also indicates fan operation status.

Efficient Cooling Performance

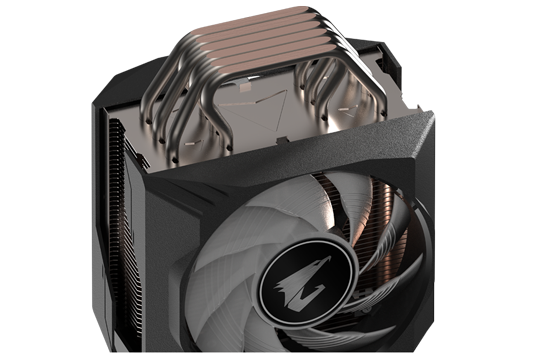

Copper Heatpipes

Copper Heatpipes For Increased Contact Area Upgraded 6 Direct-Touch Copper Heatpipe Design. Increases contact area with CPU for added heat dissipation. Up to 20% larger contact area compared to the previous generation.

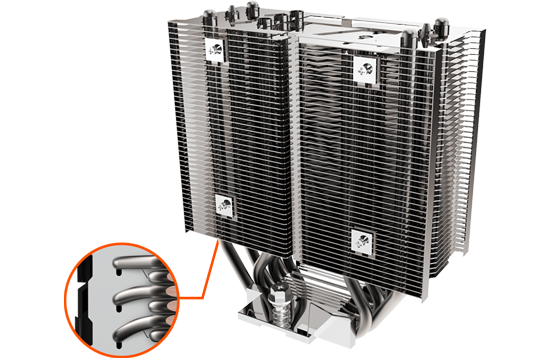

Enhanced Heatsinks

Conduction Enhanced Heatsinks Through a specialized welding process, the contact between the heatpipe and heatsink is increased compared to that of standard products, to further bolster heat dissipation.

Excellent Heat Dissipation Test Intel® i9-10900K All Cores 5.1GHz.
*Test results based on internal testing. Actual performance may vary.

Unique Fan Design

Double Ball Bearing Structure The double ball bearing structure has better heat endurance and efficiency than sleeve structure and it'll provide longer life time.

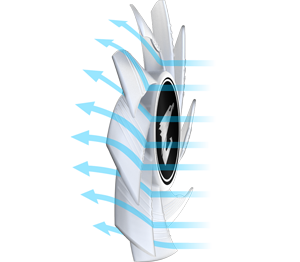

MAXIMUM FAN AIRFLOWAll new fan blade design for maximum fan airflow, providing up to 33% airflow compared to the previous generation.

fan blade

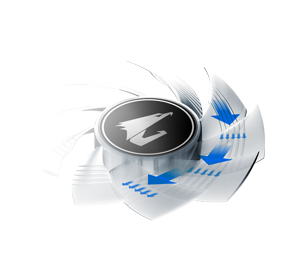

UNIQUE FAN BLADE DESIGNThe 120mm dynamic adjusting fan provides the silent operation. The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow by over the traditional fans.

Cooler Specifications
Edition ATC800
Cooler Form Factor Single Tower
Heatpipes 6
Cooler Features
  • Aluminium Fins
  • Copper Heatpipes
  • Direct Contact Heatpipes
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1200
  • 1366
  • 2011
  • 2066
  • AM2
  • AM2+
  • AM3
  • AM3+
  • AM4
  • FM1
  • FM2
  • FM2+
Max. TDP 250W
Fan Specifications
Included Fan Configuration 2 x 120mm w/ RGB LEDs
Fan Edition
PWM Fan Yes
Fan Bearing Type Dual Ball Bearing
Fan Colour Black
LED Lighting RGB
Fan/Pump Connectors
  • 1 x 4-pin
  • 1 x USB
Max. Fan Speed 2000 rpm
Max. Fan Airflow 51.7 CFM
Max. Air Pressure 2.00 mm H²O
Max. Sound Level 31 dBA
Cooler Materials Aluminium / Copper
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions
Total Dimensions W107 x H163 x D139 mm (WxHxD)
Weight 1010 g
Additional Information
Scan Code LN109192
Model Number GP-ATC800
GTIN 4719331551278

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
