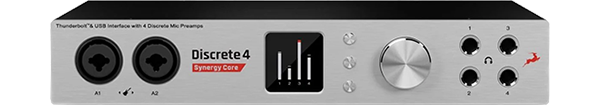

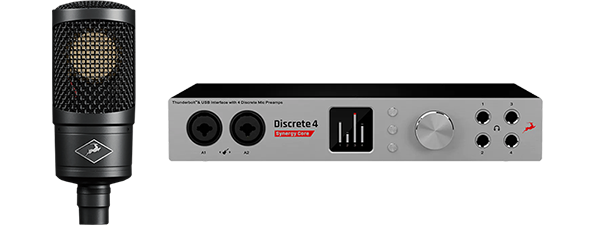

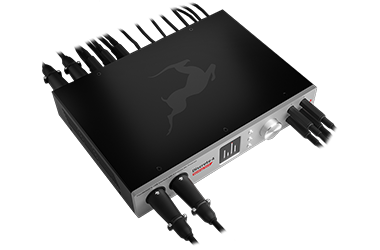

Antelope - 'Discrete 4 Synergy Core'
Desktop Audio Interface + Edge Solo Microphone

antelope discrete 4 synergy core

Thunderbolt & USB Audio Interface
With Condenser Modeling Microphone
The Antelope Audio Discrete 4 Synergy Core is a next generation signal processing platform. Featuring FPGA's huge parallel computation capabilities and industry-standard DSP power combined, Synergy Core frees up your CPU while processing your FX with incredibly low latency. 2x DSP + 1x FPGA chips allow the Discrete 4 Synergy Core to manage up to 4 FX channel strips X 8 FX slots each for a maximum of 32 FX instances at any sample rate. Resulting in four times the Discrete 4 Basic’s processing power.

Included with the Interface is the Edge Solo condenser microphone. An easy to use and versatile tool that offers unmatched Antelope commitment to high-resolution sound and brings it to your home studio, building upon it with the tone-shaping abilities of 18 recording legends. The unique balance of heritage and technical innovation is at the heart of the Edge Solo, resulting in a premier choice for your vocals and acoustic instruments.

Amazing Features • Simplified routing, switch audio sources per channel based on a drop-down menu sequence
• Up to 32 effects instances per session loaded simultaneously on 4 individual virtual racks
• 4 x 10 Desktop audio interface with Thunderbolt & USB connection for Mac/Windows
• Premium quality condenser modeling microphone with 18 emulations included
• Edge Solo mic works with any preamp to provide consistently great sound

Superior Synergy Core Technology

antelope discrete 4 synergy core

FPGA & DSP FX ProcessingThe Discrete 4 Synergy Core comes with 6 unique transistor discrete preamps for console level sound quality. The circuit is the result of an in-depth study of iconic microphone preamps that shaped the sounds of countless records. Considered a “modern classic”, it’s designed with the Edge & Verge range of modeling condenser mics in mind. With their characteristics perfectly complemented by the preamp design and Synergy Core technology, a superior microphone recording quality is achieved.

Synergy Core

FPGA & DSP - The Best of Both Worlds

antelope discrete 4 synergy core

Offload FX ProcessingReduces buffer size, record with sub-millisecond latency & monitor in real-time.

FPGADynamically recreates studio effects & mic models on the circuit and component level.

Industry-standard DSPProvides a wider variety of effects to an efficient real-time, low-latency platform.

Enanced StabilityImproves your computer’s stability when handling CPU-heavy synths, samplers and FX.

Timeless DesignFuture-proof and configurable architecture lets us design each product for optimal performance.

No LatencyFPGA eliminates the issue of latency stacking which is common with DSP-only units.

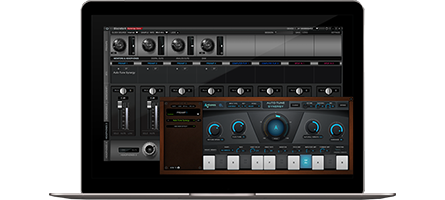

Auto-Tune Synergy

Auto-Tune Synergy

REAL-TIME LIVE MONITORINGDesigned from the ground-up for the Synergy Core platform, Auto-Tune Synergy gives you live pitch correction for an improved audio experience. You also get industry-leading pitch correction at hand for live, recording, and mixdown. Completely adjustable Retune Speed, Flex-Tune, and Humanize parameters with Auto-Key automatic key and scale detection.

Real-time, low latency performance with the Edge Go modeling microphone and any Antelope Audio Synergy Core interface. ‘Classic’ is a tribute to the iconic “Auto-Tune 5 sound” heard on countless hit records.

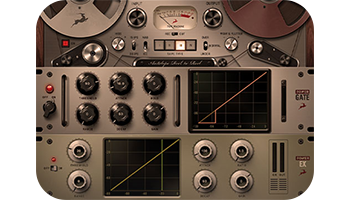

36 Synergy Core FX Included

Synergy Core FX

EXPANDABLE FX LIBRARYThe Discrete 4 Synergy Core includes a compelling library of 36 real-time studio effects, meticulously modelled after their hardware originals, adding more value and possibilites to the interface.

Inside your audio interface, you get the lowest latency possible thanks to FPGA’s massive parallel computing capabilities, DSP processing, and rapid Thunderbolt™ connectivity. The library can be extened to include any effects you choose from the Antelope web store.

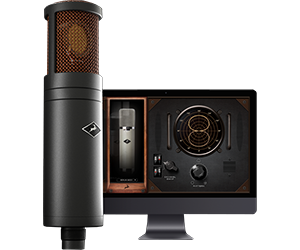

Mic Modeling Ready

accusonic 3d modeling

ACCUSONIC 3D MODELINGThe Discrete 4 Synergy Core’s Accusonic 3D modeling engine transforms the Antelope Audio Edge and Verge modeling microphones into higher class vintage replicas.

Shape the final sound with complete control over proximity effect and change polar patterns whilst recording or after. Select from a collection of classic and rare microphones as you monitor and record live, bringing out the full potential of the musician.

Best-In-Class AD/DA

antelope discrete 4 synergy core

Acoustically Focused ClockingWith up to 121dB of dynamic range and sample rates up to 192kHz, the built-in AD/DA converters make sure every detail of the performance is captured with the highest signal quality possible. Together with a state-of-the-art preamp design and renowned clocking technology, recording with the Discrete 4 Synergy Core makes your voice and instruments sound rich, warm, and expressive.

The innovators of atomic clocking in pro audio, Antelope Audio incorporates 20+ years of clocking expertise in their audio interfaces. With the proprietary 64-bit AFC and jitter management algorithms, the Discrete 4 Synergy Core offers the same artifact-free audio only expected from the most legendary studios.

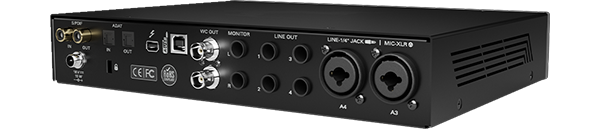

Unparalleled Connectivity

antelope discrete 4 synergy core

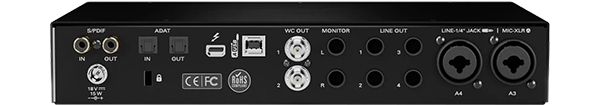

Superior WorkflowWith a wide variety of analog & digital connectivity, along with both USB & Thunderbolt™ ports for computer connection, the Discrete 4 Synergy Core provides more options than any DSP-equipped interface available. Four microphone inputs, four line outputs, a pair of monitor outputs, four headphone outputs and S/PDIF are available. You can digitally expand by using ADAT chaining. A pair of Word Clock outputs also let you distribute the interface’s highly stable clock signal across your studio. All outputs are DC-coupled.

For Windows users, Antelope Audio provides an incredibly fast and stable custom Thunderbolt™ driver which reults in sub-millisecond roundtrip latency. Thunderbolt is natively supported in macOS. Taking advantage of high-speed Thunderbolt, the AFX2DAW plug-in lets you use Synergy Core effects as inserts inside your chosen DAW. This simplifies workflow and enables easy, immediate effects automation.

Antelope 'Edge Solo'
Condenser Modeling Microphone

antelope edge solo

A New Age Of Home RecordingThe Edge Solo is compatible with any preamp with 48V phantom power and is great for users that needa single microphone to record a range of sources. It performs with any type of audio – from vocals, guitars and drum overheads to speech applications, including voice over, dubbing, and audio books. The microphone emulations are available in VST, AU and AAX plugin formats for all popular DAWs under both macOS and Windows, regardless of the audio interface being used. An iLok 2 or 3 USB dongle is needed.

-116dBTHD+N

20HZ - 20kHZFrequency Response

18Emulations

A New Era Of Quality

antelope edge solo

Elevate Your RecordingsDesigned with attention towards detailed sound capture, the Edge Solo uses technology created after years of experience with high-resolution sound. The 6-micron gold-sputtered membrane displays the character of your voice and instruments for a rich sound without sacrificing transients or detail.

True to the source characteristics are captured thanks to the low-resonance body and low-reflection headbasket. This also translates to self-noise levels that are hard to capture from the natural ambiance of your room.

A Treasure Of Microphones

18 Emulations

18 EmulationsThe Edge Solo provides access to 18 carefully selected classic microphones. A diverse collection of revered models that were hand-selected as the top picks for many award-winning engineers and producers are all availabloe.

The Edge Solo will enhance your tracking possibilities on the same level as studios that have invested thousands in rare vintage microphone collections, while the ever-growing library of emulations will continue to grow for your home-studio.

Choose Your workflow

antelope edge solo

RECORDING & MIXING made easyDesigned for efficiency and versatility, the Edge solo features a modeling engine that saves studio-time whilsy keeping the creative dynamic in fast-paced recording sessions. It allows you to change your choice of microphone in real-time with a click of a button, without ever having to disturb the recording process, or record clean and try out different models in the mixing phase.

Although the Edge Solo works with any preamp, pairing it with the Discrete preamps of our Synergy Core interfaces unlocks the full potential of the real-time microphone emulations. When processed using the onboard Synergy Core platform, you can track with the emulations while enjoying imperceptible latency and zero CPU load.

Embrace The Future Of Recording

Advanched MODELING ENGINEThe Modeling Engine is what makes the Edge Solo such a unique recording tool – a futuristic technology that brings a selection of timeless classics to your studio. To develop it, Antelope worked with several revered European facilities, making rigorous measurements and testing multiple exquisitely preserved vintage microphones, along with modern high-end classics. The accuracy of these mic emulations keeps the frequency response and color of the originals.

BERLIN 47FT

BERLIN 47FT

BERLIN 47TU

BERLIN 47TU

BERLIN 49T

BERLIN 49T

BERLIN 57

BERLIN 57

BERLIN 67

BERLIN 67

BERLIN 87

BERLIN 87

BERLIN K86

BERLIN K86

BERLIN M103

BERLIN M103

BERLIN M251

BERLIN M251

BERLIN V563

BERLIN V563

HAMBURG 441

HAMBURG 441

ILLINOIS 78

ILLINOIS 78

ILLINOUS 57

ILLINOUS 57

MINNESOTA 20

MINNESOTA 20

TOKYO BOOT

TOKYO BOOT

VIENNA 12

VIENNA 12

VIENNA 112

VIENNA 112

VIENNA 414

VIENNA 414

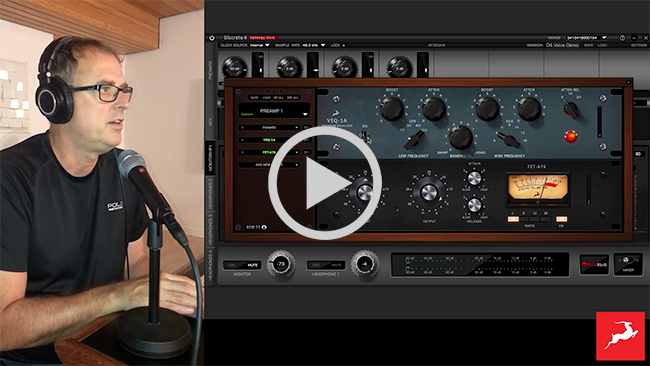

Discrete 4 Synergy Core Product Overview

Presenting Edge Solo | Antelope Audio

Discrete 4 Synergy Core Tech Spec

Features Specification
I/O Channels Analog: 4 Inputs / 6 Outputs
ADAT: 8 Inputs / 8 Outputs
Max Sample Rate/Resolution 192 kHz / 24-Bit
Number of Mic Preamps 4
Input Level Adjustment 1 x Knob
Analog Audio I/O 2 x Combo XLR-1/4" 3-Pin Mic/Line Input
2 x Combo XLR-1/4" 3-Pin Mic/Line/Hi-Z Input
2 x 1/4" TRS Monitor Output
4 x 1/4" TRS Line Output
4 x 1/4" TRS Headphone Output
Phantom Power +48 V, Selectable On/Off
Digital Audio I/O 1 x TOSLINK Optical ADAT Input
1 x TOSLINK Optical ADAT Output
1 x RCA Coaxial S/PDIF Input
1 x RCA Coaxial S/PDIF Output
Host Connection / USB 1 x USB Type-B (USB 2.0)
1 x Thunderbolt/MDP
Sync I/O 2 x BNC Word Clock Output
Max Output Level Monitor Outputs: +20 dBu
Line Outputs: +20 dBu
Impedance BNC Word Clock: 75 Ohms
Dynamic Range Mic Inputs: 121 dBA
AD/DA Converters: 121 dB
Line Outputs: 118 dB
THD+N Mic Inputs: -106 dB
AD/DA Converters: -112 dB
Line Outputs: -100 dB
EIN -128 dBu A-Weighted
Sample Rates 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Bit Depths 24-Bit
Sync Sources Internal
Clocking Output Voltage: 3 V p-p
Lock Range: 32 to 192 kHz
OS Compatibility Windows 10 (64-Bit)
macOS 10.12 or Later (High Sierra and Later Recommended)
Processor Requirement Intel Core i3
AMD FX
RAM Requirements 4 GB, 8 GB Recommended
Required Hardware Thunderbolt Port or USB 2.0 Port
Power Requirements AC/DC Power Adapter (Included)
Power Consumption 15 W
Operating Temperature 32 to 122°F / 0 to 50°C
Dimensions 10.2 x 1.7 x 8.2" / 261 x 44 x 208 mm
Weight 3.7 lb / 1.7 kg

Edge Solo Tech Spec

Features Specification
Capsule Single capsule
Diaphragm Large condenser, single-sided 6u gold-splattered membrane
Polar Pattern Cardioid
Number of emulations 18
Frequency Response 20HZ ~ 20kHZ
Ouput Connector 3-pin male XLR
Output Channels Mono
Control Panel Emulations Tokyo 800T, Berlin 47FT, Berlin 47TU, Berlin 49T, Berlin 57, Berlin 67, Berlin 87, Berlin K86, Berlin M103, Berlin M251, Berlin V563, Vienna 12, Vienna 414, Vienna 112, Illinois 7B, Minesota 20, Illinois 57, Hamburg 441
