Antelope Discrete 4 Microphone Preamp Interface Plus Premium FX Pack

Antelope Discrete 4 Console-Grade Discrete Microphone Interface With Premium FX Pack, Real-Time FPGA FX

Scan code: LN85020 Manufacturer code: Discrete 4 Prem Request call
£1,239.00Item overdue since 15 November 2017
Pre order
Pay on Scan Finance with a 10% deposit from just £30.94 / month (APR 15.9%)
From £59.47 / month (APR 14.9%)
Monthly Payment: £215.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,239.00
Total inc. interest: £1,289.97
Monthly Payment: £111.23
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,239.00
Total inc. interest: £1,334.75
Monthly Payment: £76.70
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,239.00
Total inc. interest: £1,380.50
Monthly Payment: £59.47
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,239.00
Total inc. interest: £1,427.27
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Mid Range
Free Delivery Delivery options Free By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout

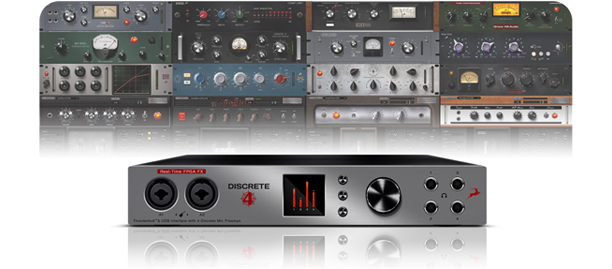

Product Overview New Level Studio Power - Expensive-sounding discrete mic preamps and vintage gear emulation
Antelope Audio’s Discrete 4 Microphone Preamp comes with 4 console grade 6-transistor discrete preamps, 121 db dynamic range conversion and rock solid clocking. Discrete 4 features the Antelope Audio premier real-time FPGA FX modeling iconic gear from BAE, Lang, Gyraf Audio and FET.

Discrete 4 includes Accusonic 3D microphone and preamp models, guitar amps, transformer and tube FX, and a huge selection of classic vintage gear, now accessible in any DAW thanks to the freshly introduced Antelope Connect AFX Plugin.

Sonic Supremacy - Console-grade and fully discrete preamps for best-in-class sound.
Discrete 4 was developed after an extensive research of legendary microphone preamp circuitry. The Antelope Audio FPGA engine transforms its already expensive sounding Accusonic preamps into several classic units. It’s all happening real-time and with as authentic responsiveness as possible.

Discrete 4 is designed to work with any microphone, but it really shines with Antelope’s new Edge and Verge mics. Edge & Verge were designed to match the unit’s discrete preamp architecture.

Inside the FPGA Accusonic 3D modeling engine you can transform Edge into vintage replicas giving you complete control over proximity effect, off-axis response and even allow you to change polar patterns during or after recording. Choose from a collection of classic and expensive microphones and track the results as you monitor live, bringing out a musician’s best possible performance.

Authentic Vintage Sound - Enjoy the sound of legendary FX gear in your DAW
The Antelope Audio real-time FPGA platform is now extended to a complete professional studio experience – Microphones, Preamps, Conversion, Compressors, EQs, and Reverb. Use them within the Discrete 4 EasyPanel or in your preferred DAW via the new ConnectAFX Plugin. Perform and record either with FX or process in post-production. The Discrete 4 ReAmp outputs will allow you to use any outboard gear and route the resulting sound back in your DAW of choice.

Premium FX pack
The Premium FX pack that comes with Dicrete 4 allows you to employ the full studio power of the Antelope Audio real-time FPGA FX. The collection features authentic models of iconic studio units from BAE, Gyraf Audio, LANG and FET. With the Premium FX pack you can use 16 instances of each EQ, Compressor and AuraVerb; plus 4 instances of each guitar amp & cabinet models available. This Premium library features 50+ Antelope Audio real-time FPGA FX. Use them within the Discrete 4 EasyPanel or in a DAW via the new ConnectAFX Plugin.

Plug in your guitar directly into one of the hi-Z enabled inputs and instantly sculpt your tone with some of the most iconic guitar amps and cabinets around. Then add vintage compression, EQ and AuraVerb to hear a finished studio quality result with real-time responsiveness while playing through your preferred amp, cabinet and microphone combination. Perform and record either with FX or your direct input and process later using the integrated guitar effects.

Guitar Amps: Burnsphere (DE), Marcus II (US), Overange 120 (UK), Tweed Deluxe, Top30, Darkface, Modern, Plexi 59, Rock 75, Rock 22.10

EQ Legends: VEQ-55b, VEQ-STU 089, VEQ-STU 169, VEQ-STU 900, VEQ HA32C, BAE 1023, BAE 1084, NEU-W492, NEU-W495, NEU-PEV, VEQ-4K Series, VEQ-4K Black, VEQ-4K Brown, VEQ-4K Pink, VEQ-4K Orange, BAE-1073, VEQ-HLF, VEQ-1A, VMEQ-5, VEQ-55A, Lang PEQ2, UK-69, ClearQ

Vintage Compressors: X903, VCA160, Gyraf Gyratec X, Tube176, Grove Hill Liverpool, FET-A76, FET-A78, ALT-436C, BA-6A, SMT-100A, Stay-Levin, TubeChild670, Power EX, Power Gate, Feedforward Compressor

Reverb: AuraVerb
Features 4 Discrete Mic Preamps
• Console-grade 6-transistor discrete microphone preamps

Mic Preamp Modeling
• Turn the Discrete 4 mic pres into a large selection of classic units in real-time

Real-Time FPGA FX
• AFX including BAE, Grove Hill, Gyraf Audio and Lang classics for use in the Easy Panel or in any DAW

Rock-Solid Clocking
• Fourth Generation 64-bit Acoustically Focused Clocking (AFC) technology

Expert Monitoring
• Create multiple mixes with FPGA FX included and send them to Headphone or Monitor outs

Remote Control
• Access all Discrete 4 features via its intuitive Easy Panel or download the free iOS and Android mobile apps


Analog Inputs
• 2 x Mic / Line Inputs
• 2 x Mic / Line / Hi-Z Inputs

Analog Outputs
• 1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max
• 4 x Line Outs on TRS, +20 dBu max
• 4 x Stereo Headphone Outputs

Mic Preamp
• EIN: -128 dBu (A-weighted)
• Dynamic Range: -121 dB (A-weighted)
• THD: -106 dB
• Max input: +18 dBu
• Gain Range: 65 dB

D/A Monitor Converter
• Dynamic Range: 121 dB
• THD + N: -100 dB

A/D Converter
• Dynamic Range: 121 dB
• THD + N: -112 dB

D/A Converters(Line Out)
• Dynamic Range: 118 dB
• THD + N: – 100dB


Digital Inputs
• 1 x ADAT (up to 16CH)
• 1 x S/PDIF

Digital Outputs
• 1 x ADAT (up to 16CH)
• 1 x S/PDIF

• USB 2.0 Hi-Speed;
• Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B

Thunderbolt™ I/O
• 1 x Thunderbolt, 32 channels I/O


Word Clock Outputs
• 3 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Clocking System
• 4th Generation Acoustically Focused Clocking
• 64-bit DDS

Sample Rates (kHz)
• 32, 44.1, 48, 88.2, 96, 176.4, 192


Operating Temperature
• 0-50°C, 32-122°F

Weight (Approx)
• 1.7 kg/ 3.7 lbs

Dimensions (Approx)
• Width: 261 mm / 10.2”
• Height: 44 mm / 1.7”
• Depth: 208 mm /8.2”

Power Consumption
• 15 Watts
Computer Interface Type USB 2
Analogue Inputs (Total) 4
Analogue Outputs (Total) 6
Connections (Input)
  • 1 x ADAT In
  • 1 x S/PDIF Coaxial In
  • 1 x word clock
  • 4 x XLR / Jack Combo
Mic Preamps (Max) 4
Instrument Inputs (Max) 4
Phantom Power Yes
Sample Rate (Max) 192 kHz
Bit Resolution 24
iPad Compatible No
Dynamic Range 121 dB
Connections (Output)
  • 4 x 1/4" TRS jack (Balanced)
  • 2 x 1/4" TRS Monitor Output
  • 4 x 1/4" TRS stereo headphone
Dimensions (mm) 261 x 44 x 208 WxHxD
DSP Processing Yes
