Antec NX230 Windowed ARGB Mid Tower PC Gaming Case

Antec NX230 ARGB, Black, Mid Tower Chassis w/ Window, 120mm Fan, USB 3.0, ATX/MicroATX/Mini-ITX

Thumbnail 1 : Antec NX230 Windowed ARGB Mid Tower PC Gaming Case Thumbnail 2 : Antec NX230 Windowed ARGB Mid Tower PC Gaming Case Thumbnail 3 : Antec NX230 Windowed ARGB Mid Tower PC Gaming Case Thumbnail 4 : Antec NX230 Windowed ARGB Mid Tower PC Gaming Case
Scan code: LN104794 Manufacturer code: 0-761345-81023-4
£34.99
Order now and get it tomorrow, Thu 1st Oct
Delivery Options
  • By DPD On 1st Oct to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

NX230 Mid-Tower RGB Gaming Case from Antec

nx230 mid tower case

THE CREATION OF VALUE AND FUNCTION Create a superior gaming system without burning a hole in your pocket with the NX230 from Antec. This mid-tower chassis effortlessly combines a wealth of popular features to become the perfect match for your PC components. Enjoy USB3.0 connectivity, various storage drive bays, plenty of room for expansion and an included 120mm fan on the back of the case. Utilise support for up to a 360mm cooling radiator in the front, and view it all in action through the transparent side panel.

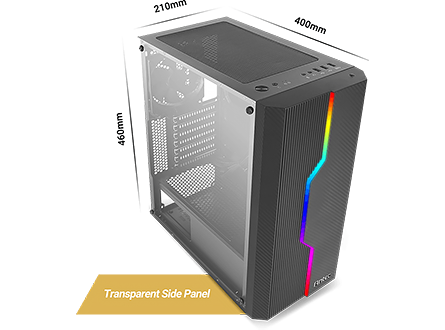

Put your Components on Display

plastic side panel

PLASTIC transparent SIDE PANEL View your components in all their glory through the plastic side panel. Show off your PC and make anyone envious with this beautiful way of displaying your gear. The transparent side panel can be easily removed via four screws so you can access your components without much hassle.

Supports up to Eight Fans

fan radiator space

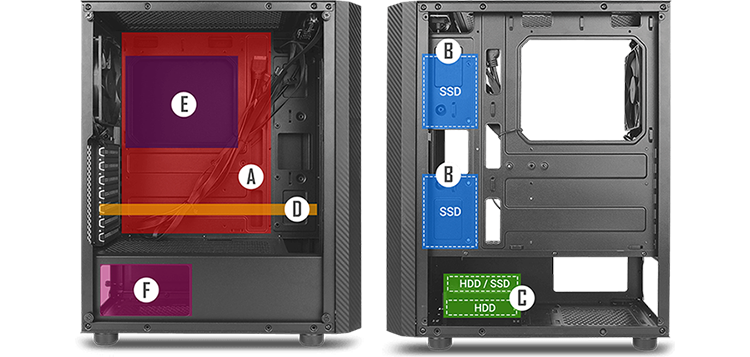

Unbeatable Expansion Space

component space

ADD YOUR DREAM COMPONENTS A: Motherboard support up to ATX  |  B: 2.5" SSD: 2  |  C: HDD/2.5" SSD (Convertible): 2/1
D: Graphic Card Support up to 300mm  |  E: CPU cooler support up to 160mm  |  F: PSU support up to 160mm

Versatile I/O Options

power

POWER

reset

RESET

argb control

ARGB CONTROL

audio or mic

AUDIO/MIC

usb 2.0

USB 2.0 X 2

usb 3.0

USB 3.0 X 1

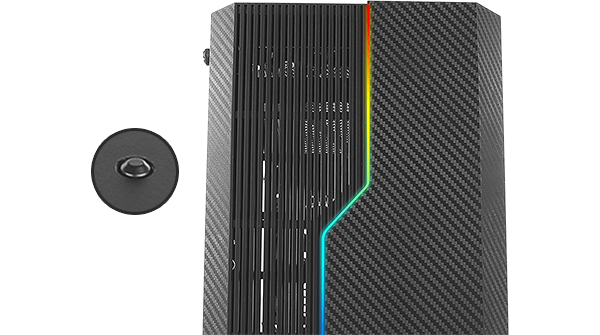

Add a Personal Flair to your Rig

LED CONTROL BUTTON Add a personal touch to your system with the integrated LED control button. With a single press you can change the ARGB lighting on the front of the case and choose from a range of different effects to suit your style.

led control button
Specifications
Core Chassis Specifications
Case Edition NX230
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x ARGB Control Button
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 2.0
  • 1 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 2 x 3.5" / 1x 2.5"
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 5 x 120mm
  • 3 x 120mm / 2x 140mm
Fans Included 1 x 120mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 160 mm
Max GPU Card Length 300 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Plastic
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Front Panel Accent Strip/s
LED Lighting Colour RGB
LED Lighting Support & Control Control via Inc. Controller/Hub (Buttons/Switches)
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 160 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials SPCC / Plastic
Dimensions 210 x 460 x 400 (WxHxD mm)
Weight 3.36 kg (Approx)
Please Note
Additional Information
Scan Code LN104794
Model Number 0-761345-81023-4
GTIN 0761345810234
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.

Antec NX230 ARGB, Black, Mid Tower Chassis w/ Window, 120mm Fan, USB 3.0, ATX/MicroATX/Mini-ITX is rated 4.0 out of 5 by 2.
Rated 3 out of 5 by from Looks great but not good for watercooling Looks good, easy to build in. Wouldn't recommend watercooling in it. The front airlow is terrible I put an i7 4790k/1080ti on a 360mm rad as a temporary home but the CPU temps were in the very high 90s. GPU in the mid 70s. Took the front panel off so the fans get better airlow and both components dropped by 20c under load and Idle temps back down to low 30s from mid 40s
Date published: 2020-08-06
Rated 5 out of 5 by from Epic case This case is great for what i paid for it worth every penny, the case is very light, the airflow was better then what i expected, i have placed a low noise fan in the front to help with cooling, i could fit my Sapphire RX580 8gb nitro + in the case with space, it was very easy to work with and work on and it's nice and small and compact, i was able to hide all cables in the back the case and make very neat, there are hooks and places where you can cable tie all cables in, only room for a 160mm psu, i fitted a seasonice 520w modular in with ease, all round for the price it's very good, i'm well happy with it.
Date published: 2020-05-02
