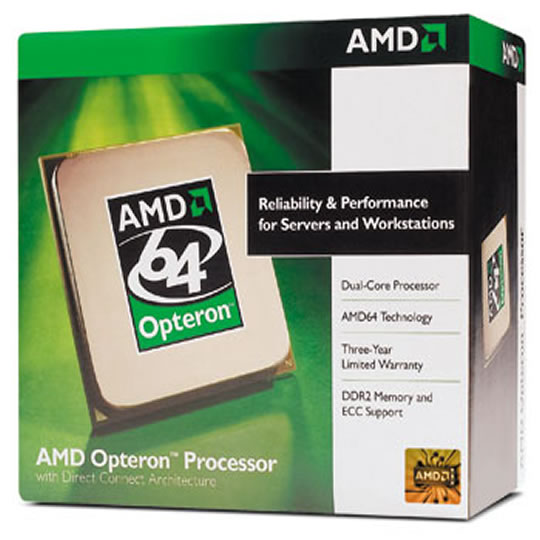

AMD 8214 Opteron Processor

AMD Socket F (1207) Second-Generation AMD Opteron 8214, Dual Core 2.2GHz, 2MB Cache, Retail

MORE INFO

Thumbnail 1 : AMD 8214 Opteron Processor

Scan code: LN16031 Manufacturer code: OSA8214CRWOF

Share Facebook Twitter Google Reddit Pinterest LinkedIn

£239.99

Add To Basket

In stock

From £10.00 / month (APR 0%)

Monthly Payment:	£10.00
Instalment Rate:	0% p.a. (fixed)
Cost of purchase:	£239.99
Total inc. interest:	£239.99

If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.

With a 10% deposit from just £5.99 / month (APR 15.9%)

Delivery Options

By DPD On 9th Dec To 11th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Collect instore Collect from our Bolton store, BL6 6PE | Free

Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store | £4.79

Collect your parcel from your newsagents, petrol stations and convenience stores

Services

SCANPROTECT Protect against installation damage for 28 days. More info

ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Share Facebook Twitter Google Reddit Pinterest LinkedIn WhatsApp

Product Overview This CPU is certified for SLI use: Please Click Here

Next-Generation AMD Opteron™ processors with Direct Connect Architecture introduce several new features including quad-core upgradeability, AMD Virtualization™ (AMD-V™), and energy efficient DDR2 memory. In addition, Next-Generation AMD Opteron processors are designed to advance AMD’s performance-per-watt capabilities and leverage the proven technologies introduced in 2003 with first-generation AMD Opteron processors.

Next-Generation AMD Opteron processors are offered in three series: the 1000 Series (up to 1P/2-core), the 2000 Series (up to 2P/4-core), and the 8000 Series (4P/8-core to 8P/16-core). The 1000 Series is built on AMD’s new Socket AM2. The 2000 Series and 8000 Series are built on AMD’s new Socket F (1207). Features Next-Generation AMD Opteron™ Processor Benefits

Next-Generation AMD Opteron™ processors with DDR2 memory extend the industry-leading performance trajectory established by first-generation AMD Opteron processors while offering a seamless upgrade path to quad-core performance and leading-edge solutions to help run your business applications.

AMD Opteron processors feature a Common Core Architecture that is consistent across 1-way, 2-way, 4-way, and 8-way systems and is also consistent with previous AMD Opteron processors, helping minimize the cost of transition and maximize past investments in software optimization.

AMD64 technology

• Runs existing installed base of 32-bit applications and operating systems at peak performance, while providing a 64-bit capable migration path
• Designed to enable 64-bit computing while remaining compatible with the vast x86 software infrastructure
• Enables a single architecture across 32- and 64-bit environments

Direct Connect Architecture

• AMD’s revolutionary Direct Connect Architecture helps eliminate the bottlenecks inherent in traditional front-side bus architectures
• Direct Connect Architecture connects the processors, integrated memory controller, and I/O directly to the CPU and communicates at CPU speed
• HyperTransport™ technology provides a scalable bandwidth interconnect between processors, I/O subsystems, and other chipsets, with up to three coherent HyperTransport technology links providing up to 24.0 GB/s peak bandwidth per processor
• Integrated Memory Controller on-die DDR2 DRAM memory controller offers available memory bandwidth up to 10.7 GB/s (with DDR2-667) per processor

Quad-core upgradeability

• AMD Opteron processors with DDR2 memory are designed to offer a seamless upgrade path from dual-core to quad-core when they are available in 2007 in the same thermal envelope to help leverage existing investments
• Maintain the same platform at the same power efficiency

AMD Virtualization™ (AMD-V™)

• Hardware assisted AMD Virtualization™ and Direct Connect Architecture provide a balanced approach to help improve virtualization performance, enabling more virtual machines to run per server
• AMD-V™ reduces overhead by selectively intercepting instructions destined for guest environments
• Direct Connect Architecture helps guests run at near native speed
• Virtualization-aware integrated memory controller provides efficient isolation of virtual machine memory

Enhanced performance-per watt

• Energy-efficient DDR2 memory uses up to 30% less power than DDR1 and up to 58% less power than FBDIMM
• AMD PowerNow!™ technology with Optimized Power Management can deliver performance on demand while minimizing power consumption
• Consistent standard power roadmap with low-power options
• DDR2 platforms can upgrade to quad-core AMD Opteron™ processors in 2007 within existing thermal bands for significantly better performance-per-watt

Specifications

Model & Type
CPU Type	Second-Generation AMD Opteron
CPU Model	8214
Socket	F (1207)
Architecture
Manufacturing Process	90 nm

Cores & Clocks
No. of Cores
No. of Threads
Clock Speed	2.2 GHz
Turbo Speed	N/A
Turbo Speed (On 1 Core)
Unlocked CPU	No

Bus Speeds
FSB/HT Speed	1000MHz

Memory Support
Max. Memory Size
Max. Memory Speed
Max. Memory Channels
ECC Memory Support	No

Lanes & Features
Scalability
PCIe Lanes Supported

Integrated Graphics
Features Integrated Graphics	No
Integrated Graphics Model/Type	N/A
iGPU Compute Units	N/A
iGPU Cores/Streams	N/A
iGPU Clock	N/A

CPU Cache
L1 Cache
L2 Cache	2MB
L3 Cache
Smart Prefetch Cache

Thermals & Package
Max. TDP
Thermal Specification
Heatsink/Cooler Included?
Package Type	Retail

Additional Information
Scan Code	LN16031
Model Number	OSA8214CRWOF
GTIN	7301432321422
