End Of Life
Scan code: LN32060 Manufacturer code: HDZ555WFGMBOX

AMD CPU Phenom II 555 Black Edition Dual Core Processor

AMD Phenom II X2 555 Black Edition, Callisto, Dual Core, S AM3, 3.2GHz, 7MB Total Cache, 80W, Retail

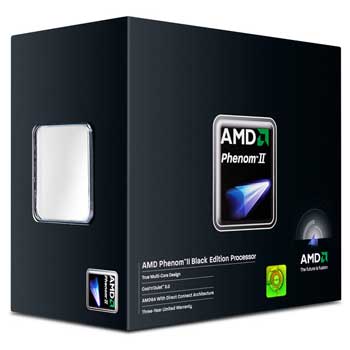

Thumbnail 1 : AMD CPU Phenom II 555 Black Edition Dual Core Processor
AMD CPU Phenom II 555 Black Edition Dual Core Processor : image 1
Scan code: LN32060 Manufacturer code: HDZ555WFGMBOX
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview Live your life in HD. AMD Phenom™ II is for high definition entertainment, gaming, creativity, and beyond. With AMD Phenom™ II processors as the foundation, you'll enjoy a new level of responsiveness and visual intensity. AMD puts high definition computing within everyone's reach.
Superior technologies for HD video. Enjoy a superior high definition experience for HD videos on you PC. AMD Phenom™ II processor are the powerful engine behind your fidelity, high definition video entertainment experience. Only AMD puts the Ultimate Visual Experience™ for HD video within your reach.
Enjoy entertainment beyond your media library. Get HD content online, offline, wherever you want it, however you want it. Your system can handle whatever you dish out - and serve it up on screen in full, high definition glory.
Perfect chemistry. Combine AMD Phenom™ II processors and ATI Radeon™ HD graphics to really see the difference. Enjoy smooth video, brilliant videos and immersive games. AMD unleashes visual clarity and responsiveness for what you want to do.
Features AMD64 with Direct Connect Architecture
• Helps improve system performance and efficiency by directly connecting the processors, the memory controller, and the I/O to the CPU.
• Designed to enable simultaneous 32- and 64-bit computing
• Integrated Memory Controller

AMD Balanced Smart Cache
• Shared 6MB L3 cache
• 512K L2 cache per core

AMD Wide Floating Point Accelerator
• 128-bit floating point unit (FPU)
• High performance (128bit internal data path) floating point unit per core.

HyperTransport™ Technology
• One 16-bit link at up to 4000MT/s

Integrated DRAM Controller with AMD Memory Optimizer Technology
• A high-bandwidth, low-latency integrated memory controller

AMD Virtualization™ (AMD-V™) Technology With Rapid Virtualization Indexing
• Silicon feature-set enhancements designed to improve the performance, reliability, and security of existing and future virtualization environments by allowing virtualized applications with direct and rapid access to their allocated memory.

AMD PowerNow!™ Technology (Cool’n’Quiet™ Technology)
• Enhanced power management features which automatically and instantaneously adjusts performance states and features based on processor performance requirements
• For quieter operation and reduced power requirements

AMD CoolCore™ Technology
• Reduces processor energy consumption by turning off unused parts of the processor. For example, the memory controller can turn off the write logic when reading from memory, helping reduce system power.
• Works automatically without the need for drivers or BIOS enablement.
• Power can be switched on or off within a single clock cycle, saving energy with no impact to performance.

Dual Dynamic Power Management™
• Enables more granular power management capabilities to reduce processor energy consumption.
• Separate power planes for cores and memory controller, for optimum power consumption and performance, creating more opportunities for power savings within the cores and memory controller.
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan / AMD Europe
Telephone:
01276 932318

Additional Notes:
"Please be aware any warranty offered in excess of 12 months is at the manufacturer's discretion and maybe subject to change without notice."

Subject to, 3 years manufacturer's warranty.

1st year warranty return to Scan Computers;
2nd - 3rd year subject to manufacturers warranty via AMD Europe
+44 (0) 1276-803187

Please be prepared to provide AMD Europe the following information:
(1) your name, address, and telephone numbers;
(2) proof of purchase;
(3) a description of the type of boxed processor;

Upon receipt of a Return Material Authorization (RMA) number from the Technical Service Center Representative, you will be required to send in your processor, and heatsink/fan that were packaged together in the retail container. The packaging materials themselves will not be required to process your RMA.

http://www.amd.com/us-en/Processors/TechnicalResources/0,,30_182_867_1034,00.html

This Warranty does not cover any damage due to abnormal use or conditions, misuse, neglect, abuse, accident, improper handling or storage, serial number altered, defaced or removed; or has had the warranty seal on the system altered, defaced or removed, exposure to moisture, unauthorized modifications, alterations, or repairs, improper installation, improper use of any electrical source, undue physical or electrical stress, operator error, non-compliance with instructions.
