Sale

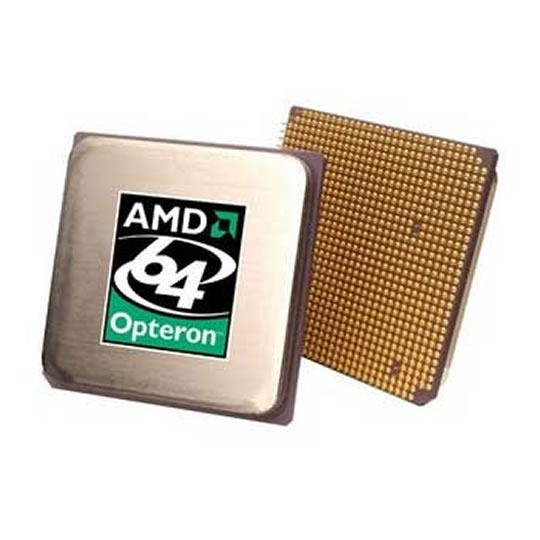

AMD 252 Opteron 64 Processor

AMD Opteron 64 252, Socket 940, Troy Core, 2.6GHz, 1MB Cache, 92.6W, CPU, OEM

AMD
Scan code: LN10383 Manufacturer code: OSA252FAA5BLE Request call
£59.99
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD On 5th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview The AMD Opteron processor provides a breakthrough in high-performance, low power processing for edge-of-enterprise markets including storage and telecommunications, as well as more traditional embedded markets such as security and medical imaging, military systems, and single-board computing. Features • Compatible with Existing 32-Bit Code Base: Including support for SSE, SSE2, MMX™, 3DNow! ™ technology and legacy x86 instructions.
• Integrated Memory Controller: 144-bit DDR SDRAM at 100, 133, and 166 MHz.
• HyperTransport™ Technology to I/O Devices: Three links, 16-bits in each direction, each supports up to 1000 MT/s or 2 GB/s in each direction. Each link can connect to an I/O device or another processor.
• 64-Kbyte 2-Way Associative ECC-Protected L1 Data Cache
• 64-Kbyte 2-Way Associative Parity-Protected L1 Instruction Cache with advanced branch prediction.
• 1024-Kbyte (1-Mbyte) 16-Way Associative ECC-Protected L2 Cache Exclusive cache architecture—storage in addition to L1 caches.
• ACPI 2.0 compliant.
• Power Supplies: VDD (core): 1.35-V at 52 Amps (max), Target CPU Core Power: 92.6 Watts.

Electrical Interfaces:
• HyperTransport technology: LVDS-Like differential, unidirectional.
• DDR SDRAM: SSTL_2 per JEDEC specification.
• Clock, reset, and test signals also use DDR SDRAM-like electrical specifications.

Packaging:
• 940-pin lidded ceramic micro PGA.
• 1.27-mm pin pitch.
• 31x31 row pin array.
• 40mm x 40mm ceramic substrate.
• Ceramic C4 die attach.
Specifications
Specifications
CPU Type Opteron 64
CPU Model 252
Socket 940
Core Single Core
Core Name Troy
Core Size 90 nm
Clock Speed 2.6 GHz
Turbo Speed N/A
Unclocked Core Multiplier No
Graphics Chipset
Graphics Cores N/A
Graphics Clock N/A
FSB/HT Speed 1000MT/s
Max. Memory Speed SRAM - 166
L1 Cache (Total) 64KB x 2
L2 Cache (Total) 1MB
L3 Cache (Total)
Voltage 1.35 ~ 1.4 (V)
Wattage 92.6W
Max. Temperature
Heatsink
Package Type OEM
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan / AMD Europe
Telephone:
01276 932318

Additional Notes:
"Please be aware any warranty offered in excess of 12 months is at the manufacturer's discretion and maybe subject to change without notice."

Subject to, 3 years manufacturer's warranty.

1st year warranty return to Scan Computers;
2nd - 3rd year subject to manufacturers warranty via AMD Europe
+44 (0) 1276-803187

Please be prepared to provide AMD Europe the following information:
(1) your name, address, and telephone numbers;
(2) proof of purchase;
(3) a description of the type of boxed processor;

Upon receipt of a Return Material Authorization (RMA) number from the Technical Service Center Representative, you will be required to send in your processor, and heatsink/fan that were packaged together in the retail container. The packaging materials themselves will not be required to process your RMA.

http://www.amd.com/us-en/Processors/TechnicalResources/0,,30_182_867_1034,00.html

This Warranty does not cover any damage due to abnormal use or conditions, misuse, neglect, abuse, accident, improper handling or storage, serial number altered, defaced or removed; or has had the warranty seal on the system altered, defaced or removed, exposure to moisture, unauthorized modifications, alterations, or repairs, improper installation, improper use of any electrical source, undue physical or electrical stress, operator error, non-compliance with instructions.
