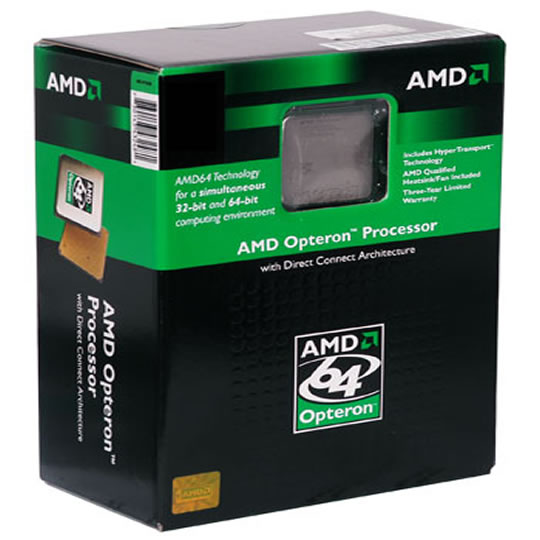

AMD 248 Opteron 64 Processor
Scan code: LN7491
Manufacturer code: OSA248BLBOX
End Of Life
AMD 248 Opteron 64 Processor
AMD Opteron 64 248, Socket 940, Troy Core, 2.2GHz, 1MB Cache, CPU, Retail
Scan code:
LN7491
Manufacturer code:
OSA248BLBOX
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview
This CPU is certified for SLI use.
Features • Compatible with Existing 32-Bit Code Base
– Including support for SSE, SSE2, MMX™, 3DNow!™ technology and legacy x86 instructions
– Runs existing operating systems and drivers
– Local APIC on-chip
• AMD 64-Bit Technology
– AMD’s 64-bit x86 instruction set extensions
– 64-bit integer registers, 48-bit virtual addresses, 40-bit physical addresses
– Eight new 64-bit integer registers (16 total)
– Eight new 128-bit SSE/SSE2 registers (16 total)
• Integrated Memory Controller
– Low-latency, high-bandwidth
– 144-bit DDR SDRAM at 100, 133, and 166 MHz
• HyperTransport™ Technology to I/O Devices
– Three links, 16-bits in each direction, each supports up to 1600 MT/s or 3.2 GB/s in each direction
– Each link can connect to an I/O device or another processor
• 64-Kbyte 2-Way Associative ECC-Protected L1 Data Cache
– Two 64-bit operations per cycle, 3-cycle latency
• 64-Kbyte 2-Way Associative Parity-Protected L1 Instruction Cache
– With advanced branch prediction
• 1024-Kbyte (1-Mbyte) 16-Way Associative ECC-Protected L2 Cache
– Exclusive cache architecture—storage in addition to L1 caches
• Machine Check Architecture
– Includes hardware scrubbing of major ECCprotected arrays
• Power Management
– Multiple low-power states
– System Management Mode (SMM)
– ACPI 2.0 compliant
• Power Supplies
– VDD (core): 1.55-V at 52 Amps (max)
– VDDIO: 2.5-V at 2.9 Amps (max) for DDR SDRAM I/O
– VLDT: 1.2-V at 1.5 Amps for HyperTransport™ technology interface
– VTT: 1.25-V at 0.2 Amps required for 2.5-V I/Os
– Target CPU Core Power: 80.6 Watts
– Target Maximum Thermal Power: 84.7 Watts
• Electrical Interfaces
– HyperTransport technology: LVDS-Like differential, unidirectional
– DDR SDRAM: SSTL_2 per JEDEC specification
– Clock, reset, and test signals also use DDR SDRAM-like electrical specifications
• Packaging
– 940-pin lidded ceramic micro PGA
– 1.27-mm pin pitch
– 31x31 row pin array
– 40mm x 40mm ceramic substrate
– Ceramic C4 die attach
