AMD Opteron 146 CPU Socket
End Of Life
AMD Opteron 146 CPU Socket
Scan code: LN12172 Manufacturer code: OSA146BNBOX
End Of Life

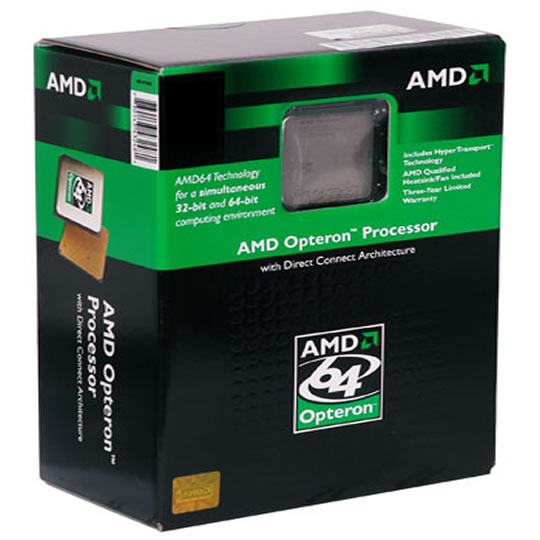

AMD Opteron 146 CPU Socket : image 1
  • Thumbnail 1 : AMD Opteron 146 CPU Socket
End Of Life

AMD Opteron 146 CPU Socket

AMD Opteron 64 146, Socket 940, Venus Core, 2.0GHz, 1MB Cache, Retail
MORE INFO
MORE INFO

Scan code: LN12172 Manufacturer code: OSA146BNBOX
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview This CPU is certified for SLI use: Please Click Here

The AMD Opteron™ processor, enabling simultaneous 32- and 64-bit computing, represents the landmark introduction of AMD64 with Direct Connect Architecture. The AMD Opteron™ processor is designed to run existing 32-bit applications with outstanding performance and offers customers a simplified migration path to 64-bit computing. This evolutionary processor provides a dramatic leap forward in compatibility, performance, investment protection, and reduced total cost of ownership (TCO). The AMD Opteron™ processor is offered in three series: the 100 series (1-way), the 200 series (Up to 2-way), and the 800 series (Up to 8-way).

AMD is continuing to drive technology leadership by introducing another computing first: multi-core technology for the x86-based computing market. Dual-core AMD Opteron processors for servers and workstations extend AMD’s Direct Connect Architecture by connecting two CPUs on one die, improving overall system performance and efficiency. Features AMD Opteron™ Processor Details
CPU ID AMD Opteron™ Processor Model 146
Model 146
Ordering Parts Number (OPN) OSA146BNBOX
Stepping E4
Frequency 2.0GHz
HyperTransport™ Technology Speed 1000MHz
Integrated Memory Controller 2.0GHz
Core Voltage 1.35 V/1.4 V
Case Temperature 49° C to 65° C
Wattage 67.0W
L2 Cache Size 1 MB
L2 Cache Speed 2.0GHz
Manf. Technology .09 micron SOI
Socket Socket 939
Amperage 47.5 A
Warranty 3 years
