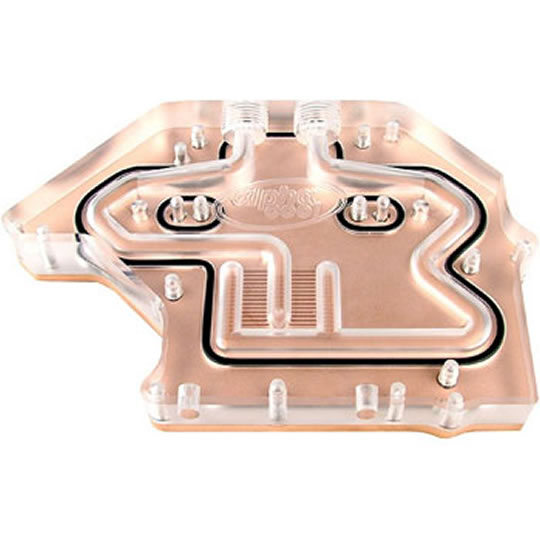

Graphics card cooler for all Ati X1800XL/XT/XT PE (256MB) cards, acc. to reference design, based on the Alphacool NexXxoS cooler series. New copper cooler with parallel channels in PCF(c) mounting type, by means of which the surface for the heat dissipation is drastically increased.
The water is supplied centrally, which enables a highest possible cooling. This allows stable operation at extreme summer temperatures, highest overclocking potential and Low Noise at the same time.
This cooler is conceived for the highest requirements, therefore the RAM modules are also cooled. The channel leads directly over the RAM mounting parts in order to offer optimal cooling. The surface of the cooler is even, in order to adjust the differences of level. 8x 1,5mm thermal pads for the RAM mounting parts are included in delivery.
Above the GPU, the coolers only measure 1mm in order to achieve optimal cooling values. The sealing between plexiglass and copper cooler is made via a long-life O-sealing-ring. The mounting is made by means of the bores for standard air coolers which come with the Ati cards with screws. Two 5mm bores for optimal LED lighting are also available. The G1/4" connections are conceived for all connecting systems. A counter screen is included in delivery for optimal contact pressure!
For overclocking we would recommend using the Mosfett cooler
For ATI Cards
