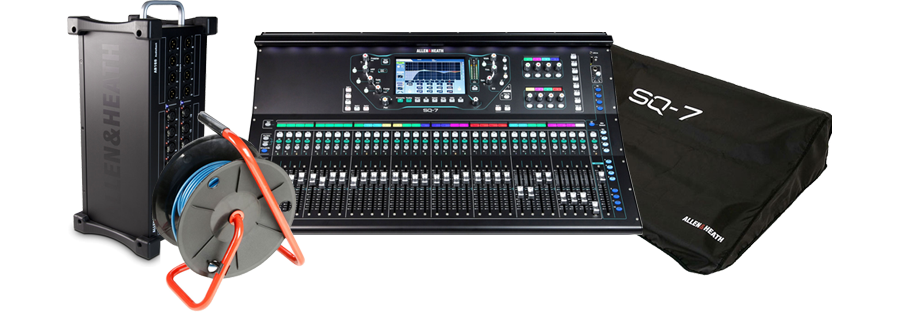

Allen & Heath SQ-7, Stage Box, 30m Cat 5 Cable Drum & Protective Cover

Allen & Heath SQ-7 Tour Package - SQ-7 48 Channel Digital Mixer, Allen & Heath AB168 Stage Box, 30m Cat 5 Cable Drum

Thumbnail 1 : Allen & Heath SQ-7, Stage Box, 30m Cat 5 Cable Drum & Protective Cover Thumbnail 2 : Allen & Heath SQ-7, Stage Box, 30m Cat 5 Cable Drum & Protective Cover Thumbnail 3 : Allen & Heath SQ-7, Stage Box, 30m Cat 5 Cable Drum & Protective Cover Thumbnail 4 : Allen & Heath SQ-7, Stage Box, 30m Cat 5 Cable Drum & Protective Cover
Scan code: LN114876 Manufacturer code: SQ-7
£4,788.00Item currently awaiting an ETA
Pre order
FREE DELIVERY ON YOUR ENTIRE BASKET
With a 10% deposit from just £119.59 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Live Sound! Back With A Bang!
Allen & Heath - 'SQ-7' Digital Mixer, Stage Box & Cover,
Adam Hall - 30m Drum Mounted CAT5 Cable

SQ-7 desk

scan pro audio presents... Our team of Live Sound experts here at Scan Pro Audio have carefully selected these items to assist you in achieving a truly professional live sound for your venue. At the heart of the bundle is Allen & Heath’s ‘SQ-7’ 48 channel/36 bus digital mixer, powered by the ground-breaking XCVI 96kHz FPGA engine, the SQ-7 was built for both the professional engineer, and for the most demanding environments and applications. The SQ-7 boasts 32 onboard preamps and 8 stereo FX engines with dedicated return channels. Within the SQ-7 you have access to all the tools to meet any requirement, from AV and corporate events to live productions and houses of worship.

Also included is Allen & Heaths ‘AB168’ highly portable 16x8 audio interface stage box, Adam Hall’s 30m Cat 5 Cable Drum to ensure you’re all hooked up without a hitch, and we also included a protective desk cover to keep your newly acquired SQ-7 in showroom condition!

what's included? • 1x Allen & Heath - 'SQ-7'
• 1x Allen & Heath - 'AB168'
• 1x Adam Hall - 30m Cat 5 Cable Drum
• 1x Allen & Heath - SQ-7 Dust Cover

Professional 48 Channel Mixer
Allen & Heath - 'SQ-7'

SQ-7 desk

Mix a masterpieceDriven by Allen & Heath’s game changing XCVI 96kHz FPGA engine, the SQ-7 has been designed for professionals who are in the most demanding live sound situations. The SQ-7 brings world class high res audio fidelity with super low 0.7ms latency, ensuring unmatched power and audio fidelity.

The mixer has 32 onboard preamps and 8 stereo effects engines, each with dedicated return channels and access to the lauded RackExtra FX library. 12 stereo mixes make the SQ-7 the perfect partner for in-ear monitoring, whilst Automatic mic mixing takes the strain in multi-mic situations. The SQ-7 is a tool for professional engineers in any live sound environment.

7”Touchscreen

96kHzFPGA Processing

48Input Channels

at a glance • 32 Microphone Preamps
• 7" Capacitive Touchscreen
• 96 kHz FPGA Processing
• 8 Stereo FX Engines with Returns
• 32 x 32 USB Audio Interface
• 12 Stereo Mixes + LR
• 16 Assignable SoftKeys

Tailored to Suit Your Workflow

Work the way you want to work Each new design from Allen & Heath aims to take another step towards creating the perfect mixing experience. At the heart of the SQ-7 is a high-res 7” capacitive touchscreen, surrounded by a variety of illuminated encoders to give an intuitive, user friendly and integrated blend of easy to see visual feedback and instant hands on control. SQ-6 desk Each channel and each mix is able to be moved with a simple ‘drag and drop’ process to any strip, alongside customised naming and colour coding, allowing you to tailor a mixing environment which lets you work how you want to work. Each strip features Allen & Heath’s patented chromatic channel metering system, allowing you an at-a-glance indicator of levels, thanks to the LED’s featuring adjustable brightness and colours.

Tough as Nails, Easy on the Eye

sq-7 desk

rigorously Tested The touring and live show world is inevitably tough on gear. Fortunately, Allen & Heath understand this and have factored this in when designing the rock solid SQ series. Allen & Heath devised their most rigorous testing procedure to ensure the new series could withstand the live environment.

From the 3-tier, full metal housing, to the extruded aluminium bar, the SQ is tough as nails, whilst at the same time remaining a beautiful desk to work with.

Expand - Grow - Network

sq-7 desk

Dante, Waves and more The SQ series is at the heart of an increasing family of apps, expanders, audio networking, personal mixers and more, which allows you to connect, adapt and expand as much as you could want.

The SQ series is compatible with the industry’s leading audio networking standards too, simply add an audio networking card such as Dante or Waves to the SQ’s I/O port and the SQ is set to integrate with installed systems, provide a digital Front of House/Monitor split and much more.

The 'ME Personal Mixing System'

sq-7

limitless potential The SQ series is compatible with the ‘ME Personal Mixing System’, a system devised to allow performers to have complete control of their own monitor mixes. The amount of ME-1 and ME-500 personal mixers you can add is completely up to you, any number can be daisy-chained from the SQ’s SLink port. Click here to learn more about the ME Personal Mixing System

Total Control Over Your Mix

sq-7

...And for the artists Allen & Heath have developed 2 utterly essential apps for the SQ range. The ‘SQ MixPad’ for engineers, and ‘SQ4You’ for artists. SQ MixPad is a free to download app, for iOS, Android, Windows and macOS platforms, which provides handy suite for editing offline, and online wired or wireless control of the SQ’s main mixing functionalities.

‘SQ4You’ on the other hand is a personal mixing app to work alongside the SQ series mixers, which allows as many as 8 artists to have complete control over their mix in the monitors from Android or iOS devices, leaving the engineer to have total focus on the FOH sound.

Immense Processing Power

sq6 desk

Create the perfect mix Allen & Heath’s new SQ-7 desk holds all the processing power you could need to produce the perfect mix, and more. Each of the 48 inputs has HPF, a high-speed gate with sidechain and filter, a musical 4-band parametric EQ and Peak/RMS compressor to give you maximum control and shaping of levels and transients. Mixes have parametric and 28 bands graphic EQ alongside compressor as standard, each of these ready to switch in when you need.

Allen & Heath - 'AB168'

4K Recording

16 x 8 Audio Interface Stage BoxThe AB168 Portable Audiorack from Allen & Heath is a rugged audio interface stage box compatible with GLD and Qu digital mixing systems, and ideal for applications such as live sound and installations.

The unit features sixteen mic/line XLR inputs with pristine mic preamps and individual LED phantom power indicators, and eight XLR outputs. It connects to the mixer over a single Cat5 cable using the company's dSNAKE protocol, allowing for the inputs and outputs to be positioned at up to 393'/120m from the mixer. For larger systems, the expander port lets you daisy-chain an additional AB168 or AR2412 Audiorack, or interface with the ME personal monitor mixing system.

Amazing Features • 16 x Mic Preamps with Phantom Power
• For GLD, Qu, ME Digital Systems
• dSNAKE Protocol Over Cat5
• 8 x XLR Line-Level Outputs
• Expander Port

Lightweight and Highly-Portable

back

maximum convenience and portabilityMade for life on the stage, this box is equipped with rubber bumpers for placing it horizontally or vertically on the floor during performances. Lightweight at just 10.6 lb, and featuring a sturdy carry handle, the AB168 is also designed for maximum convenience and portability.

The unit can also be rackmounted using an optional kit (available separately), and auto updates its firmware to synchronize with the GLD system.

Adam Hall - 30m Cat 5 Cable Drum

adam hall 20m cat5e

Cable drum with High-flexibility LSZH CAT5e cable This EtherSound compatible 30 m CAT5e cable drum uses highly flexible, rugged CAT5e cable. It features a professional RJ 45 connector with removable die-cast shell enabling connection to standard RJ45 sockets.

at a glance • High-flexibility LSZH CAT5e cable
• Professional RJ 45 cable AH connector
• Removable connector shell enables plugging into standard RJ45 socket
• EtherSound compatible

Allen & Heath - Polyester Dust Cover for SQ-7 Desk

sq7 dust cover

KEEP YOUR DESK IN SHOWROOM CONDITION!Keep your SQ-7 in pristine condition when not in use, with Allen & Heath’s fitted, water repellent dust cover made from polyester.

The Tech Spec

Features Specification
Number of Analog Input Channels 48
Mix Routing 8 x Stereo FX Return
Groups 8 x Mute Group
8 x DCA Group
Display 7" / 177.8 mm Touchscreen
Display Resolution/Colour 800 x 480 8-Bit RGB
Meters Main Meter: 2 x 12-Segment LED
Channel Meter: Single LED
Meter Range -3 dBFS Peak/Clip (+19 dBu at XLR Output)
Meter Calibration 0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)
Gain/Trim Range Line: ±24 dB (Stereo Channels)
Mic/Line: -5 dB to +60 dB (in 1 dB Steps)
Input Pad -20 dB
Input Polarity Normal/Reverse
Gate Parameters Threshold: -72 to +18 dBu
Depth: 0 to 60 dB
Attack: 50 μs to 300 ms
Hold: 10 ms to 5 sec
Release: 10 ms to 1 sec
Compressor Parameters Threshold: -46 to +18 dBu
Ratio: 1:1 to ∞:1
Attack: 30 μs to 300 ms
Release: 50 ms to 2 sec
Knee: Soft / Hard
Blend: Yes
EQ FX Returns:
4-Band Parametric
EQ Parameters 1 x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
2 x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz
1 x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Graphic EQ 28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
Filters High-Pass: 20 Hz to 2 kHz, 12 dB/Octave
Channel Output/Source Monitoring AFL, PFL, Post-Preamp, Post-HPF, Post-Gate, Post-EQ, Post-Compressor, Post-FX, Insert Return
Internal Effects Reverb
Stereo Delay (Tap)
Reverb (Gated)
ADT
2 x Chorus
Flanger
Phaser
Sample Rates 96 kHz AES3 Output: 44.1 / 48 / 88.2 / 96 kHz
Stereo Record: 96 kHz
Stereo Playback: 44.1 / 48 / 96 kHz
Multitrack Playback/Multitrack Record: 96 kHz
Latency < 0.7 ms (Mic Input to Main Output)
Analogue Inputs 1 x XLR Talkback Input
32 x XLR Balanced Mic/Line Input
4 x 1/4" TRS Balanced Aux Input (2 Stereo Pair, Half-Normalled)
1 x 1/8" / 3.5 mm Unbalanced Aux Input
Analogue Outputs 16 x XLR Balanced Output
2 x 1/4" TRS Balanced Output
Phantom Power +48 V
Digital I/O 1 x RJ45 (Network)
1 x XLR AES3 Output
1 x etherCON (I/O)
USB 1 x USB Type-A (External Memory)
1 x USB Type-B (USB 2.0, Audio Streaming)
Expansion Ports 1 x I/O Card
Max Multitrack Recording 16 Tracks
File Format Support WAV
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Weight 39.3 lb / 17.8 kg
Dimensions 31.7 x 20.3 x 7.8" / 805 x 516 x 198 mm
Specifications
Total Channels 48
Max Mic Inputs 32
Computer Interface
Mixer Type Digital
Computer Interface Channels 0
Total Aux Channels 0
Subgroups 0
Max Line Inputs 0
Analogue Insert Points No
Direct Channel Outputs 16
Internal FX No
Flying Faders No
