Allen & Heath SQ-7+ AH AR2412/X 24 chanel stage box + 30m Cat 5 Cable Drum + Dust Cover

Allen & Heath SQ-7, AH AR2412/X 24 chanel stage box, 30m Cat 5 Cable Drum & Dust Cover

Thumbnail 1 : Allen & Heath SQ-7+ AH AR2412/X 24 chanel stage box + 30m Cat 5 Cable Drum + Dust Cover Thumbnail 2 : Allen & Heath SQ-7+ AH AR2412/X 24 chanel stage box + 30m Cat 5 Cable Drum + Dust Cover Thumbnail 3 : Allen & Heath SQ-7+ AH AR2412/X 24 chanel stage box + 30m Cat 5 Cable Drum + Dust Cover Thumbnail 4 : Allen & Heath SQ-7+ AH AR2412/X 24 chanel stage box + 30m Cat 5 Cable Drum + Dust Cover
Scan code: LN124356 Manufacturer code: SQ-7/240X
Call for price
FREE DELIVERY ON YOUR ENTIRE BASKET
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

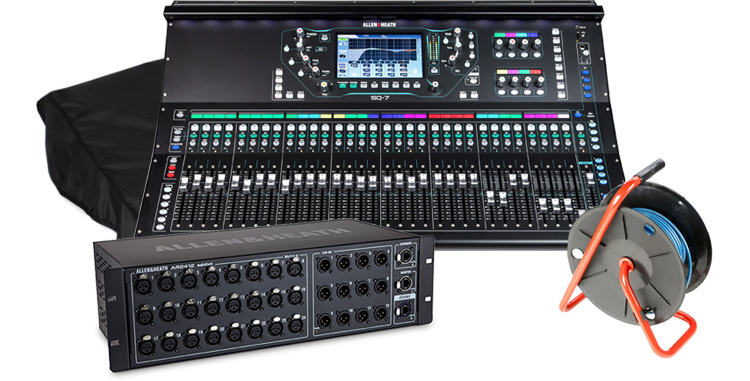

Allen & Heath - SQ7 48 Channel Mixer, AR2412 Stage Box, Dustcover
& Adam Hall - 30m Cat 5 Cable Drum

SQ-7 desk

scan pro audio presents... Our team of Live Sound experts here at Scan Pro Audio have carefully selected these items to assist you in achieving a truly professional live sound for your venue. At the heart of the bundle is Allen & Heath’s ‘SQ-7’ 48 channel digital mixer, powered by the ground-breaking XCVI 96kHz FPGA engine, the SQ-7 was built for both the professional engineer, and for the most demanding environments and applications. The SQ-7 boasts 32 onboard preamps and 8 stereo FX engines with dedicated return channels. Within the SQ-7 you have access to all the tools to meet any requirement, from AV and corporate events to live productions and houses of worship.

Also included is Allen & Heaths ‘AR2412’ highly portable 24x12 remote stage rack, Adam Hall’s 30m Cat 5 Cable Drum to ensure you’re all hooked up without a hitch, and we also included a protective desk cover to keep your newly acquired SQ-7 in showroom condition!

what's included? • 1x Allen & Heath - SQ-7 48 Channel Digital Mixer
• 1x Allen & Heath - AR2412 Stage Box
• 1x Allen & Heath - SQ7 Dust Cover
• 1x Adam Hall - 30m Cat 5 Cable Drum

Allen & Heath - SQ-7 48 Channel Mixer

SQ-7 desk

MIX A MASTERPIECEDriven by Allen & Heath’s game changing XCVI 96kHz FPGA engine, the SQ-7 has been designed for professionals who are in the most demanding live sound situations. The SQ-7 brings world class high res audio fidelity with super low 0.7ms latency, ensuring unmatched power and audio fidelity.

The mixer has 32 onboard preamps and 8 stereo effects engines, each with dedicated return channels and access to the lauded RackExtra FX library. 12 stereo mixes make the SQ-7 the perfect partner for in-ear monitoring, whilst Automatic mic mixing takes the strain in multi-mic situations. The SQ-7 is a tool for professional engineers in any live sound environment.

7"Touchscreen Display

32×32USB Audio Interface

48Input Channels

at a glance • 48 input channels
• 32 local mic inputs (XLR)
• Compact digital mixer for live, studio, and installation
• Integrated surface illumination
• Single-point metering

Tailored to Suit Your Workflow

Work the way you want to work Each new design from Allen & Heath aims to take another step towards creating the perfect mixing experience. At the heart of the SQ-7 is a high-res 7” capacitive touchscreen, surrounded by a variety of illuminated encoders to give an intuitive, user friendly and integrated blend of easy to see visual feedback and instant hands on control. SQ-7 desk Each channel and each mix is able to be moved with a simple ‘drag and drop’ process to any strip, alongside customised naming and colour coding, allowing you to tailor a mixing environment which lets you work how you want to work. Each strip features Allen & Heath’s patented chromatic channel metering system, allowing you an at-a-glance indicator of levels, thanks to the LED’s featuring adjustable brightness and colours.

Tough as Nails, Easy on the Eye

sq-7 desk

rigorously Tested The touring and live show world is inevitably tough on gear. Fortunately, Allen & Heath understand this and have factored this in when designing the rock solid SQ series. Allen & Heath devised their most rigorous testing procedure to ensure the new series could withstand the live environment. From the 3-tier, full metal housing, to the extruded aluminium bar, the SQ is tough as nails, whilst at the same time remaining a beautiful desk to work with.

Expand - Grow - Network

SQ-7 desk

Dante, Waves and more The SQ series is at the heart of an increasing family of apps, expanders, audio networking, personal mixers and more, which allows you to connect, adapt and expand as much as you could want. The SQ series is compatible with the industry’s leading audio networking standards too, simply add an audio networking card such as Dante or Waves to the SQ’s I/O port and the SQ is set to integrate with installed systems, provide a digital Front of House/Monitor split and much more.

The ME Personal Mixing System

SQ-7

limitless potential The SQ series is compatible with the ‘ME Personal Mixing System’, a system devised to allow performers to have complete control of their own monitor mixes. The amount of ME-1 and ME-500 personal mixers you can add is completely up to you, any number can be daisy-chained from the SQ’s SLink port. Click here to learn more about the ME Personal Mixing System

Total Control Over Your Mix

4K Recording

...And for the artists Allen & Heath have developed 2 utterly essential apps for the SQ range. The ‘SQ MixPad’ for engineers, and ‘SQ4You’ for artists. SQ MixPad is a free to download app, for iOS, Android, Windows and macOS platforms, which provides handy suite for editing offline, and online wired or wireless control of the SQ’s main mixing functionalities. ‘SQ4You’ on the other hand is a personal mixing app to work alongside the SQ series mixers, which allows as many as 8 artists to have complete control over their mix in the monitors from Android or iOS devices, leaving the engineer to have total focus on the FOH sound.

Immense Processing Power

sq5 desk

Create the perfect mix Allen & Heath’s new SQ-7 desk holds all the processing power you could need to produce the perfect mix, and more. Each of the 48 inputs has HPF, a high-speed gate with sidechain and filter, a musical 4-band parametric EQ and Peak/RMS compressor to give you maximum control and shaping of levels and transients. Mixes have parametric and 28 bands graphic EQ alongside compressor as standard, each of these ready to switch in when you need.

24x12 Main Remote Stage Rack for GLD & Qu Mixers
Allen & Heath - AR2412 Stage Box

allen heath ab168

Expand Your Digital Mixing System The AR2412 from Allen & Heath is a 24 XLR input, 12 XLR output Audio rack. The addition of an AR2412 to your existing QU system allows you to position your I/O upto a maximum of 100m from the mixing desk, connected by one single CAT5 cable running Allen & Heath’s dSNAKE porotocol. . dSNAKE provides control to the remote preamp, and all mic preamps can be recalled. The AR2412 includes a port for monitor connection to the ME-1 personal mixers, and also an expansion port which allows for daisy chaining to an AR84 Audio rack (QU 24 only).

Adam Hall - 30m Cat 5 Cable Drum

adam hall 20m cat5e

Cable drum with High-flexibility LSZH CAT5e cable This EtherSound compatible 30 m CAT5e cable drum uses highly flexible, rugged CAT5e cable. It features a professional RJ 45 connector with removable die-cast shell enabling connection to standard RJ45 sockets.

Allen & Heath - Polyester Dust Cover for SQ-7 Desk

sq7 dust cover

Keep your desk in showroom condition Keep your SQ-7 in pristine condition when not in use, with Allen & Heath’s fitted, water repellent dust cover made from polyester.

Allen & Heath - SQ7
The Tech Spec

Specification Description
Buses 12
Inputs 32
Channels (max. amount) 48
DCA (Digitally Contr. Amp.) Yes
Card Slot (external) Yes
Touchscreen Yes
Offline Editing Yes
Demountable Stagebox Yes
External Power Supply No

Allen & Heath - AR2412
The Tech Spec

Specification Description
Type Stagebox Interface
Compatibility GLD, Qu, Avantis and SQ mixers
Channels 24 x 12
Inputs - Mic Preamps 24 x XLR (mic/line)
Phantom Power Remote controlled from mixer
Outputs - Main 12 x XLR
Data I/O: 1 x Ethernet (dSnake), 1 x Ethernet (ME personal mixers), 1 x Ethernet (additional racks)
Rackmountable Yes, 3U
Power Source Standard IEC AC cable

Adam Hall - 30m Cat 5 Cable Drum
The Tech Spec

Specification Description
Type Network Cable
Colour Blue
Length 30m
Overall diameter 6.4 mm +/- 0.2 mm
Copper strand per conductor 19 x 0.1 mm
Number of Conductors 4×2
Shielding Tin copper braided shielding with 128 x 0.10mm tin copper
Conductor resistance 85 Ohm / km
Capacity 60 pF/m
Specifications
Total Channels 48
Max Mic Inputs 32
Computer Interface
Mixer Type Digital
Computer Interface Channels 0
Total Aux Channels 0
Subgroups 0
Max Line Inputs 0
Analogue Insert Points No
Direct Channel Outputs 0
Internal FX No
Flying Faders No
