Scan code: LN138278 Manufacturer code: SQ-7/240X

Allen & Heath SQ-7 + Allen & Heath GX4816 + Cable Reel + Cover

Allen & Heath SQ-7, GX4816 Stage Box, Cover & Cable Reel

Thumbnail 1 : Allen & Heath SQ-7	+ Allen & Heath GX4816 + Cable Reel + Cover Thumbnail 2 : Allen & Heath SQ-7	+ Allen & Heath GX4816 + Cable Reel + Cover Thumbnail 3 : Allen & Heath SQ-7	+ Allen & Heath GX4816 + Cable Reel + Cover Thumbnail 4 : Allen & Heath SQ-7	+ Allen & Heath GX4816 + Cable Reel + Cover
Scan code: LN138278 Manufacturer code: SQ-7/240X
£8,910.00Item currently awaiting an ETA
Pre order
FREE DELIVERY ON YOUR ENTIRE BASKET
From £251.23 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £807.22
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £8,910.00
Total inc. interest: £9,686.63
Monthly Payment: £435.06
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £8,910.00
Total inc. interest: £10,441.36
Monthly Payment: £312.01
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £8,910.00
Total inc. interest: £11,232.12
Monthly Payment: £251.23
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £8,910.00
Total inc. interest: £12,058.47
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £236.77 / month (APR 19.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

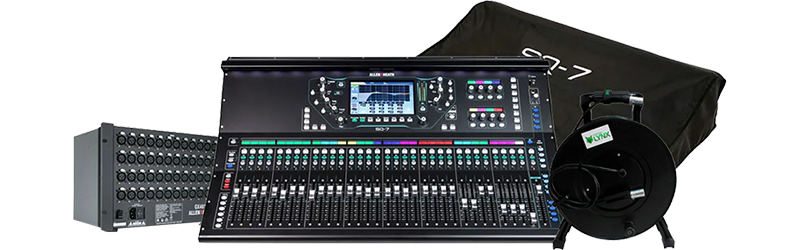

Allen & Heath - SQ7 48 Channel Mixer, GX4816 Stage Box, Dustcover
& Stagg - 50M CAT6 SFTP Network Cable

SQ-7 desk

scan pro audio presents... Our team of Live Sound experts here at Scan Pro Audio have carefully selected these items to assist you in achieving a truly professional live sound for your venue. At the heart of the bundle is Allen & Heath’s SQ-7 48 channel digital mixer, powered by the ground-breaking XCVI 96kHz FPGA engine, the SQ-7 was built for both the professional engineer, and for the most demanding environments and applications. The SQ-7 boasts 32 onboard preamps and 8 stereo FX engines with dedicated return channels. Within the SQ-7 you have access to all the tools to meet any requirement, from AV and corporate events to live productions and houses of worship.

Also included is Allen & Heaths GX4816 Stage Box and Stagg's 50M CAT6 SFTP Network Cable to ensure you’re all hooked up without a hitch. We also included a protective desk cover to keep your newly acquired SQ-7 in showroom condition!

what's included? • 1x Allen & Heath - SQ-7 48 Channel Digital Mixer
• 1x Allen & Heath - GX4816 Stage Box
• 1x Allen & Heath - SQ7 Dust Cover
• 1x Stagg - 50M CAT6 SFTP Network Cable

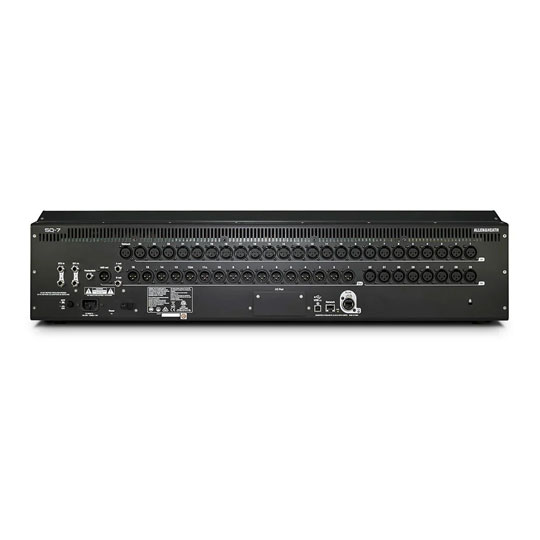

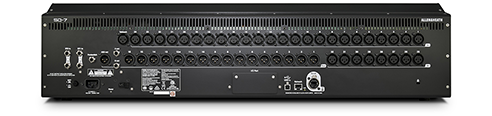

Allen & Heath - SQ7 48 Channel Mixer

SQ-7 desk

Mix a masterpiece Driven by Allen & Heath’s game changing XCVI 96kHz FPGA engine, the SQ-7 has been designed for professionals who are in the most demanding live sound situations. The SQ-7 brings world class high res audio fidelity with super low 0.7ms latency, ensuring unmatched power and audio fidelity.

The mixer has 32 onboard preamps and 8 stereo effects engines, each with dedicated return channels and access to the lauded RackExtra FX library. 12 stereo mixes make the SQ-7 the perfect partner for in-ear monitoring, whilst Automatic mic mixing takes the strain in multi-mic situations. The SQ-7 is a tool for professional engineers in any live sound environment.

Tailored to Suit Your Workflow

Work the way you want to work Each new design from Allen & Heath aims to take another step towards creating the perfect mixing experience. At the heart of the SQ-7 is a high-res 7” capacitive touchscreen, surrounded by a variety of illuminated encoders to give an intuitive, user friendly and integrated blend of easy to see visual feedback and instant hands on control. SQ-6 desk Each channel and each mix is able to be moved with a simple ‘drag and drop’ process to any strip, alongside customised naming and colour coding, allowing you to tailor a mixing environment which lets you work how you want to work. Each strip features Allen & Heath’s patented chromatic channel metering system, allowing you an at-a-glance indicator of levels, thanks to the LED’s featuring adjustable brightness and colours.

Tough as Nails, Easy on the Eye

sq-6 desk

rigorously Tested The touring and live show world is inevitably tough on gear. Fortunately, Allen & Heath understand this and have factored this in when designing the rock solid SQ series. Allen & Heath devised their most rigorous testing procedure to ensure the new series could withstand the live environment. From the 3-tier, full metal housing, to the extruded aluminium bar, the SQ is tough as nails, whilst at the same time remaining a beautiful desk to work with.

Expand - Grow - Network

sq-6 desk

Dante, Waves and more The SQ series is at the heart of an increasing family of apps, expanders, audio networking, personal mixers and more, which allows you to connect, adapt and expand as much as you could want. The SQ series is compatible with the industry’s leading audio networking standards too, simply add an audio networking card such as Dante or Waves to the SQ’s I/O port and the SQ is set to integrate with installed systems, provide a digital Front of House/Monitor split and much more.

The ME Personal Mixing System

sq-6

limitless potential The SQ series is compatible with the ‘ME Personal Mixing System’, a system devised to allow performers to have complete control of their own monitor mixes. The amount of ME-1 and ME-500 personal mixers you can add is completely up to you, any number can be daisy-chained from the SQ’s SLink port. Click here to learn more about the ME Personal Mixing System

Total Control Over Your Mix

4K Recording

...And for the artists Allen & Heath have developed 2 utterly essential apps for the SQ range. The ‘SQ MixPad’ for engineers, and ‘SQ4You’ for artists. SQ MixPad is a free to download app, for iOS, Android, Windows and macOS platforms, which provides handy suite for editing offline, and online wired or wireless control of the SQ’s main mixing functionalities. ‘SQ4You’ on the other hand is a personal mixing app to work alongside the SQ series mixers, which allows as many as 8 artists to have complete control over their mix in the monitors from Android or iOS devices, leaving the engineer to have total focus on the FOH sound.

Immense Processing Power

sq5 desk

Create the perfect mix Allen & Heath’s new SQ-7 desk holds all the processing power you could need to produce the perfect mix, and more. Each of the 48 inputs has HPF, a high-speed gate with sidechain and filter, a musical 4-band parametric EQ and Peak/RMS compressor to give you maximum control and shaping of levels and transients. Mixes have parametric and 28 bands graphic EQ alongside compressor as standard, each of these ready to switch in when you need.

Features of the SQ-7


• 96kHz FPGA processing
• 48 Input Channels
• DEEP Processing ready
• 33 Faders / 6 Layers
• 12 Stereo mixes + LR
• 3 Stereo Matrix
• 8 Stereo FX Engines + dedicated returns
• SLink port for remote audio / expansion
• 7” capacitive touchscreen


• 32×32 USB audio interface
• SQ-Drive direct recording to USB
• AES output
• Chromatic channel meterings
• Integrated LED illumination
• Dedicated physical controls
• 16 Assignable SoftKeys
• Channel LCD displays
• 64ch I/O Port for audio networking

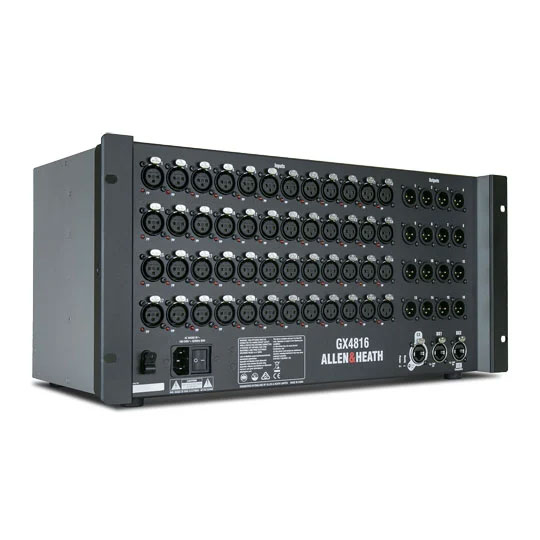

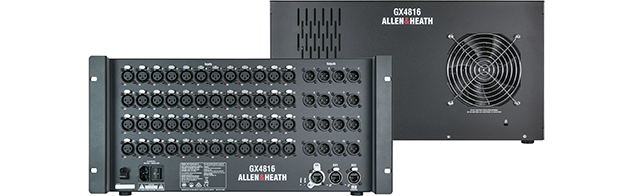

Allen & Heath - GX4816 Expander for SQ and dLive

allen heath gx4816

48 XLR Input / 16 XLR Output Portable GX Expander with DX Sockets The GX4816 is the new flagship audio expander from Allen & Heath, providing high-input-count remote expansion for SQ, Avantis and dLive mixing desks.

The GX8416 comes loaded with 48 dLive mic preamps, each preamp with its own individual Phantom Power LED indicator, 16 XLR line outs. An additional 2 DX ports are provided for connecting to a maximum of 4 DX expanders for further I/O expansion. It’s possible to connect to a ME personal mixer via the DX2 socket.

Connection between the GX4816 couldn’t be simpler, simply connect via one CAT5e cable to an Slink socket on an SQ or Avantis desk, or, to an gigaACE audio netword card on a dLive system.

Stagg 50M CAT6 Network Cable Reel

ifi audio itube2

compatible with all Computer Network Ethernet standardsThe Stagg XCC50ECRL is fitted with genuine NEUTRIK EtherCON connectors and is compatible with all Computer Network Ethernet standards (10Mbit, 100Mbit, Gigabit, 10 Gigabit) as well as all digital audio standards (MADI, DANTE, AES50, REAC, ACE, Waves, EtherSound, AVIOM, CobraNET, UltraNET, etc..). The cable itself is shielded and foiled to offer the best interference protection.

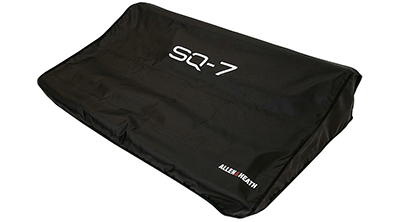

Allen & Heath - Polyester Dust Cover for SQ-7 Desk

sq7 dust cover

Keep your desk in showroom condition Keep your SQ-7 in pristine condition when not in use, with Allen & Heath’s fitted, water repellent dust cover made from polyester.

Allen & Heath SQ-7
The Tech Spec

Specification Description
Buses 12
Inputs 32
Channels (max. amount) 48
DCA (Digitally Contr. Amp.) Yes
Card Slot (external) Yes
Touchscreen Yes
Offline Editing Yes
Demountable Stagebox Yes
External Power Supply No

Allen & Heath - GX4816
The Tech Spec

Specification Description
Type Stagebox Interface
Compatibility GLD, Qu, Avantis and SQ mixers
Channels 48 x 16
Inputs - Mic Preamps 48 x XLR (mic/line)
Outputs - Main 16 x XLR
Data I/O: 1 x Ethernet (dSnake), 1 x Ethernet (ME personal mixers), 1 x Ethernet (additional racks)
Rackmountable Yes, 5U
Power Source Standard IEC AC cable
Specifications
Total Channels
Max Mic Inputs
Computer Interface
Mixer Type
Computer Interface Channels
Total Aux Sends
Subgroup / Bus Outputs
Max Line Inputs
Analogue Insert Points No
Flying Faders No
Internal FX No
Additional Information
Scan Code LN138278
Model Number SQ-7/240X
GTIN 6381292247505
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
