Scan code: LN26624 Manufacturer code: AK-ICR-08

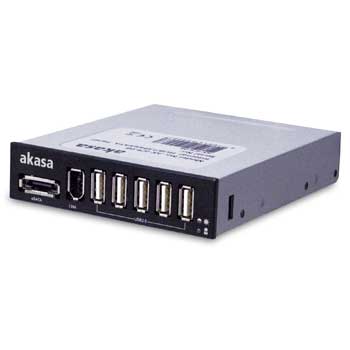

Akasa AK-ICR-08 InterConnect 3.5" Black Data panel ( 5xUSB, 1xe-Sata, 1xFirewire) inc White front

Akasa AK-ICR-08 InterConnect 3.5" Black Data panel ( 5xUSB, 1xe-Sata, 1xFirewire) inc White front

Thumbnail 1 : Akasa AK-ICR-08 InterConnect 3.5" Black Data panel ( 5xUSB, 1xe-Sata, 1xFirewire) inc White front
Akasa AK-ICR-08 InterConnect 3.5" Black Data panel ( 5xUSB, 1xe-Sata, 1xFirewire) inc White front : image 1
Scan code: LN26624 Manufacturer code: AK-ICR-08
£12.49
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jul 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The akasa Inter Connect is a 3.5" PC bay panel containing five x USB2.0, 1 x eSATA and 1 x IEEE1394 ports. All popular data connections are centralised in one easy accessible place to expand system real-time connectivity and provide quick and efficient data management. It is ideal for easy connection of external HDD enclosures, memory sticks, card readers, digital cameras, MP3 players or smart mobile phones. The high-speed USB hub is powered directly from the PSU enabling simultaneous connection to all five available USB ports without compromising the performance - even power hungry USB devices are supported.
Two front fascia panels are supplied, matt black or classic white. Two LED's clearly indicate power on and data access. Hi-speed USB2.0 compatibility provides the maximum operating speed of 480Mbit/s. This is a plug and play device - no software installation needed.

• 5-port USB hub
• Easy access eSATA and IEEE1394 port
• High transfer rate
• Powered directly from PSU and supporting all USB devices
• Easy to install
Features • Application: 3.5" bay data connection panel

• Data Transfer Rate:
-up to 480 Mbit/s - USB 2.0
-up to 400 Mbit/s - IEEE1394
-up to 3.0 Gb/s - eSATA

• USB ports 5

• eSATA ports 1

• IEEE 1934 ports 1

• Power Input: +5V (PSU 4-pin Molex connector), USB bus power, IEEE1394 bus power

• LED indicator: Blue - Power on, Green – Data access

• Supported OS: Windows 2000/XP/Vista, Mac Os 9 and OS X

• Plug and Play

• Hot Swappable

• PC connection:
-Internal USB 10-pin motherboard connector
-Internal SATA motherboard connector
-Internal IEEE-1394 motherboard connector
-4-pin Molex PSU

• Internal cables length: 50cm

• Dimensions: 119.5 x 101 x 25.2mm
Specifications
Interface Firewire/ SATA/ USB
Connectivity
  • 1 x eSATA 3Gb/s
  • 1 x Firewire (6pin)
  • 5 x USB 2.0
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
