Akasa FC.TRIO 5.25" Triple Fan Controller/Temperature Display

Akasa 5.25" FC TRIO 3 Channel Fan Controller with Temperature Monitoring and Alarm, VFD Display, Black Brushed Aluminium

Akasa
Scan code: LN40798 Manufacturer code: AK-FC-07BK Request call
£28.99Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

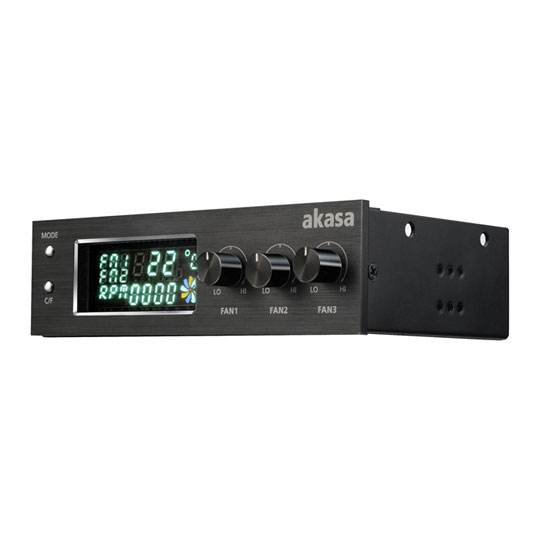

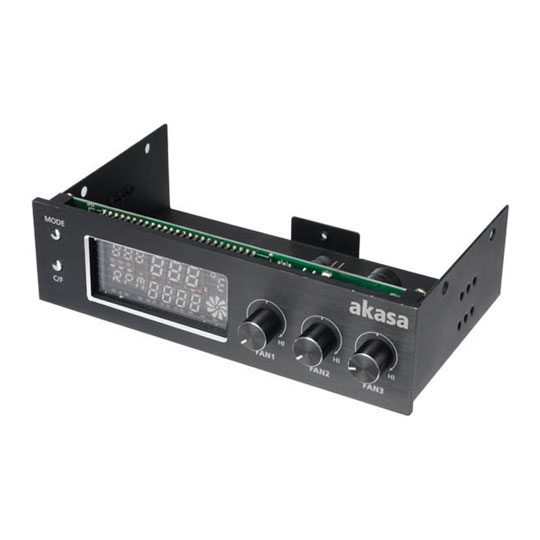

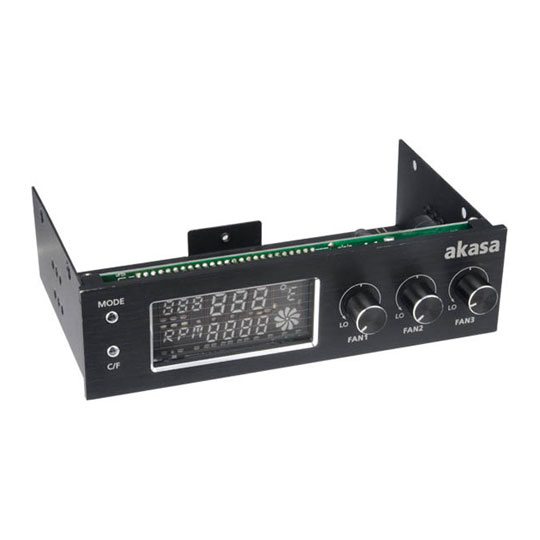

Product Overview The FC.TRIO has a brushed aluminium panel and gives you control of three fans using temperature monitoring. Designed to accommodate three 30W fans with speed control down to Zero RPM. The VFD display has an off sleep mode. Features • Brushed aluminum panel.
• 3 control channels with temperature monitoring and alarm.
• 30W available for each fan control channel.
• Fan speed control to zero RPM.
• High quality VFD display.
• Display off sleep mode.

Specifications:
• Application: Fan control for 5.25” PC bay.
• Number of channels: 3 fans, 3 temperatures.
• Fan voltage control: DC 0-12V (±10%).
• Max load: Max 2.5A (Per channel).
• Screen size: 56 x 24.5mm.
• Fan speed display: 0000 - 9999 RPM.
• Temperature display: 0°C - 100°C ( 32°F - 199,9°F ).
• Knobs length: 10.2mm.
• Input voltage: DC 5V, DC12V.
• Dimensions: 148.5 x 41.5 x 88mm.
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
TekSpek Guides
System Noise Reduction
System Noise Reduction
Date Issued: 5th Mar 2007

Anybody who has been near their share of computer systems will appreciate that not all systems make the same amount of noise. There are a number of reasons for why this is so. Firstly, a computer makes noise for different reasons. Generally, anything mechanical is going to make noise.

Read More

Reviews
Rated 2 out of 5 by 1 reviewer.
Rated 2 out of 5 by Avoid this one I have had a good few fan controllers in my time but this one sadly is no good. So the problems are that sometimes the bottom quarter of the temp screen fails to turn on so you only see the top half where it says "RPM XXXX" and other times the display fails to turn on altogether (in fact as i am writing this, its off). The overall quality is average at best. The finish is not great, the mode/C&F buttons are poor quality and make a really cheap clicking sound when pressed and the fan 3 dial on my unit is off center. This unit also has problems reading the correct RPM from the fans alot of the time. I have 2 SP120 2250 RPM fans (3-pin) on port 1 & 2 and sometimes the display reads that they are hitting 3000+ RPM. This problem seems to be corrected buy maxing the fans out then turning them back down but even then the RPM never holds out on the display jumping up and down in the range of say 300 RPM either way. I have also found that running my fans at a low speed produces a small buzzing noise. Nothing major but its there. Something i should add since its not listed in the description is that this controller works for 3 pin fans. The connections still fit 4-pin fans but each connection only has 3 pins inside so there is no real need to change your 3 pin fans to 4 pin in case you were wondering if that would work better. I use a 4-pin on dial 3 of this unit and have the same problems as dial 1 & 2. The RPM will display for 3-pin fans also, best to add that since i watched a youtube vid on this unit that claimed you needed 4-pin, that's simply not true. On the positive side it does actually control the fans as it should. Fans will remain off until you turn the dial past the 9 o'clock mark then they kick in at (im guessing) around 20-30% speed. The temperature readings seem legit (as long as the display comes on) but sadly the alarm feature will not max out all the fans when it goes off like other high end fan controllers will. You'll get your basic "beep beep beep" and that's it. A real problem for headset users or overnight downloaders etc. Overall i would suggest avoiding this unit. It could be that i just got a bad one but that's a chance you will have to take. I have included a picture of the controller as of right now with the display failing to turn on and will add others when it goes bad again to show the other problems i talked about. 10 August 2014
