Akai EIE Audio Interface

Akai EIE I/O - USB 1.1, 44.1 kHz, 16 Bit, 4 Mic Pre's , 4 / 4 Analogue I/O

Akai
Scan code: LN39836 Manufacturer code: EIEX240UK Request call
£169.00
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Free Delivery Delivery options Free By DPD On 13th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

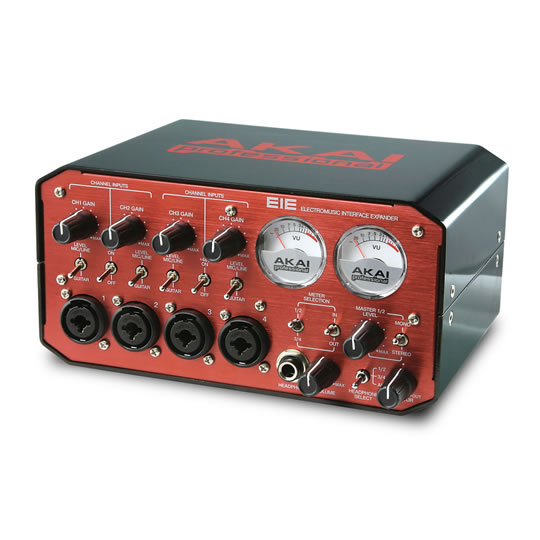

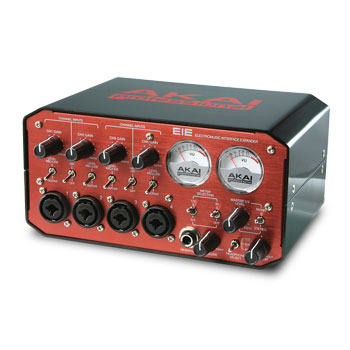

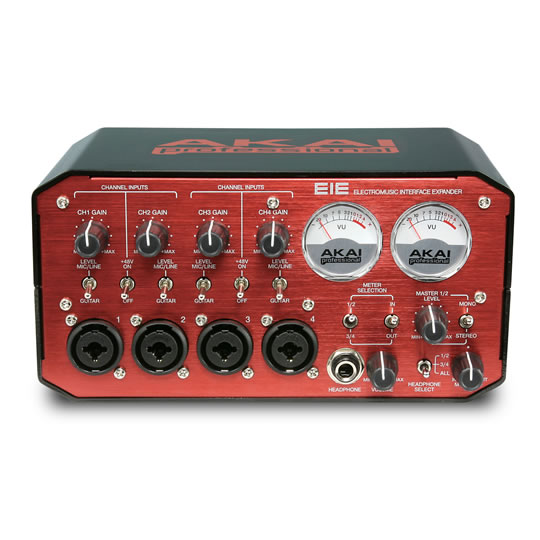

Product Overview The EIE is all about plug and play convenience. With the EIE table-top USB audio interface from Akai Professional, you can connect virtually any musical instrument or piece of production gear to your computer. With three convenient USB inputs in addition to its main USB port, EIE enables you to connect controllers, hard drives or any other peripheral to your computer when native ports may be limited. This compact, 16-bit recording interface contains high-quality components including nickel-plated input jacks, analogue-style VU meters and a rugged aluminium casing for a powerful, professional, portable audio solution. Features • Record and playback 16-bit, 2-channel audio via USB.
• Plug-and-play operation, no driver installation required.
• Four XLR-¼" combo jacks with phantom power and gain control.
• Four nickel-plated ¼" outputs for two separate monitoring systems.
• Two classic, high-quality VU level meters with switchable sources.

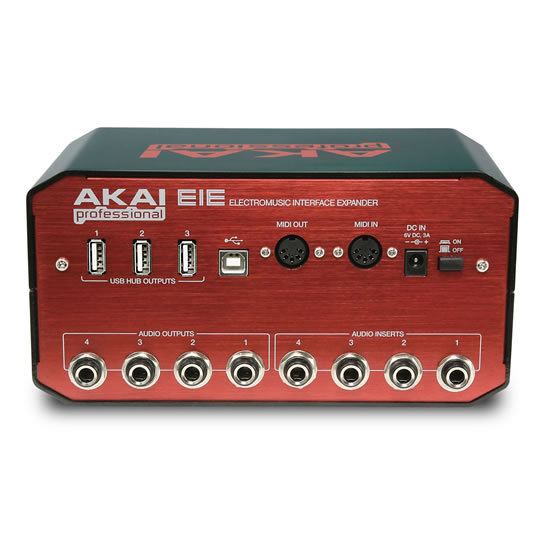

• Three additional USB ports for connecting other devices through to a computer.
• 5 Pin DIN MIDI Interface.
• Headphone output with switchable source and direct monitoring dial.
• Table-top, solid construction with a great-looking, classic design.
Specifications
Specifications
Computer Interface Type USB 1.1
Analogue Inputs (Total) 4
Analogue Outputs (Total) 4
Connections (Input)
  • 1 x MIDI
  • 4 x XLR / Jack Combo
Mic Preamps (Max) 4
Instrument Inputs (Max) 4
Phantom Power Yes
Sample Rate (Max) 44.1 kHz
Bit Resolution 16
iPad Compatible No
Dynamic Range N/A dB
Connections (Output)
  • 4 x 6.35mm (1/4") Jack
  • 1 x Headphone (TRS 6.35mm Jack)
  • 1 x MIDI
Dimensions (mm) N/A WxHxD
DSP Processing No
Misc. Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
