AJA - 'OG-ROI-SDI'

AJA OG-ROI-SDI

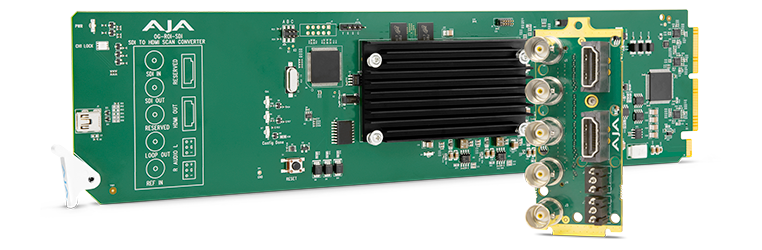

openGear 3G-SDI to 3G-SDI/HDMI Scan ConverterAJA’s OG-ROI-SDI is an openGear card that allows exceptionally high-quality scan conversion of SDI inputs to 3G-SDI and HDMI baseband video outputs. With incredible region-of-interest image scaling as well as aspect ratio and frame rate conversion, OG-ROI-SDI fulfills the growing need to properly incorporate extractions from 3G-SDI sources into 3G-SDI and HDMI feeds without sacrificing budget or space.


Amazing Features

• Scan Converter
• openGear compatible card
• 3G-SDI input with loop through
• 3G-SDI and HDMI 1.4 outputs
• Supports SD, HD and 3G formats
• Region of Interest Scaling
• Up, down, cross-conversion
• Aspect ratio conversion
• Frame rate conversion

• Image H/V flip and 90 degree rotation
• Supports 8-channels of embedded audio
• 2-channel analogues audio output of disembedded
audio (2x 3-pin terminal block connectors included)
• Sync reference selection (External, openGear frame, or Free-sun)
• Remote control over ethernet using DashBoard network control software
• Compatible with DFR-8321, OG3 and OGX openGear frames
• Hot-Swappable

Full Visual Control

AJA OG-ROI-SDI

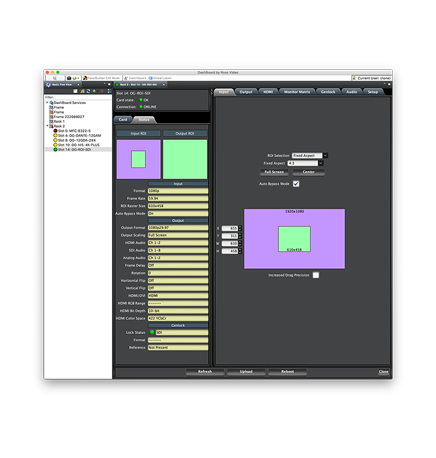

Region of InterestEliminate extra interface clutter and menu bars and extract only the portion of the computer screen you want.

OG-ROI-SDI is fully compatible with the free Ross DashBoard application, offering interactive selection of a Region of Interest from the incoming computer signal. You have full control over how that region is scaled to the output resolution using AJA’s high quality scaling algorithms for the cleanest picture quality possible.

Take full control of aspect ratio, image rotation and frame rate conversion with on-screen controls in the DashBoard software that shows you what your source and output will look like, including the formats that are coming in and the choices you have made for the signal going out.

AJA OG-ROI-SDI

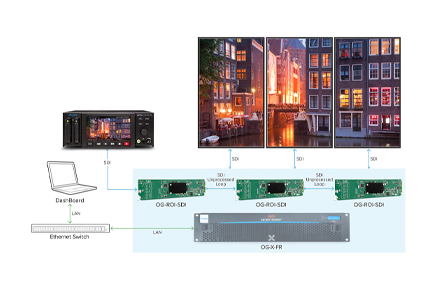

openGear ROI Window Wall WorkflowYou're able to easily create highly effective and engaging displays by using additional OG-ROI-SDI openGear converters. By utilizing three OG-ROI-SDI openGear converters in the appropriate rackframe you can feed three display monitors side by side, each rotated to portrait mode. By using the SDI pass through of the OG-ROI-SDI, the SDI routed image is in sync, with each OG-ROI-SDI providing the necessary Region of Interest output via SDI. Settings for each of the OG-ROI-SDI openGear converters is provided via ethernet control through an ethernet switch. The result is a visually exciting and creative way to feed display content.

8-Channel SDI Audio

AJA OG-ROI-SDI

AudioOG-ROI-SDI accepts 2-channel analog audio from the 2x 3-pin terminal blocks connectors or embedded 8-channel audio from an SDI input. The audio source and routing can be selected in the DashBoard software and is embedded into the SDI output. This allows computer audio to be embedded within the SDI signal for easy, synchronized routing.

The Tech Spec

Features Specification
Video Input Formats Video Signals:
(HD) 1920x1080i 50, 59.94
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
(SD) 625i, 50
(SD) 525i, 59.94
Video Output Formats (HD) 1920x1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr)
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
Colour Range Full
SMPTE
Reference Source Free Run
Ext Ref
Reference Input Supported reference video inputs include:
1080i tri-level sync
1080p tri-level sync
720p tri-level sync
625i Color Black
525i Color Black
75 ohm terminating
Video Input 1x 3G-SDI BNC, SMPTE-259/292/424
Video Outputs 1x 3G-SDI BNC, loop through
1x 3G-SDI BNC, SMPTE-259/292/424 1x HDMI Type A, HDMI v1.4
Audio I/O 24-bit, 16-channel embedded SDI audio input
24-bit, 16-channel embedded SDI audio output
24-bit, 8-channel HDMI audio output
Balanced analog audio outputs, 2x 3-Pin terminal block connectors
User Interface openGear DashBoard network control software via Windows, macOS or Linux
Size openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight 0.3kg (0.5lbs)
Power openGear frame compatible, 7.0 watts max per card
Environment Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: < 3,000 meters (< 10,000 feet)
