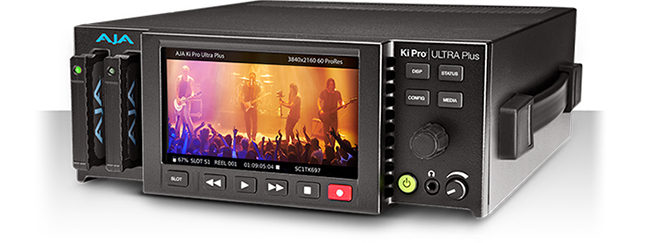

Ki Pro Ultra Plus Multi-Channel Recorder
and Player from AJA

Ki Pro Ultra Plus

4K/UltraHD/2K/HD Recorder and Player This is the amazing Ki Pro Ultra Plus from AJA video systems, it fetaures multi-channel Apple ProRes® recording offering up to 4-Channels of simultaneous HD recording, or in Single-Channel mode a 4K/UltraHD/2K/HD Apple ProRes, Avid DNxHR® MXF for 4K/UltraHD or Avid DNxHD® MXF recorder and player. Ki Pro Ultra Plus supports the latest large raster high frame rate workflows, up to 4K 60p with HDR playout and recording.3G-SDI, fibre and full HDMI 2.0 digital video connectivity plus a wealth of analogue and digital audio connectivity answers any project’s demand for efficient, powerful and flexible workflows.Designed to be either portable or rackmountable with half rack wide, 2RU high dimensions, it’s well suited for use in any environment.

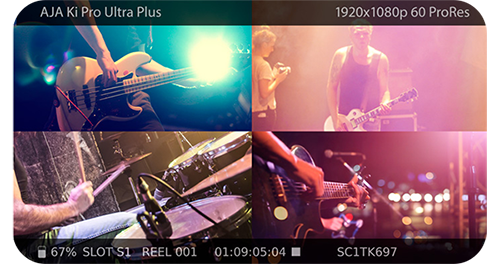

Multi-Channel HD Recording

Ki Pro Ultra Plus

Simplify your multi-channel productions The Ki Pro Ultra Plus lets you record 1, 2, 3 or 4-Channels of beautiful HD up to 1080p 50/60 in Apple ProRes simultaneously. It allows you to simplify your multi-camera productions by running up to four cameras per Ki Pro Ultra Plus and save power, space, time and effort on set, in the studio and when setting up OB trucks.

Ki Pro Ultra Plus even allows independent profile support per channel in Multi-Channel mode; select high resolution Apple ProRes HQ for high quality finishing and use a second input to record Apple ProRes (Proxy) for an efficient editing pipeline. Starting with input 1, add channels as needed in order when utilizing like raster size and frame rate, and record your HD Apple ProRes files on the same AJA Pak media and even allows rollover to a second Pak for hours of uninterrupted multi-channel recording.

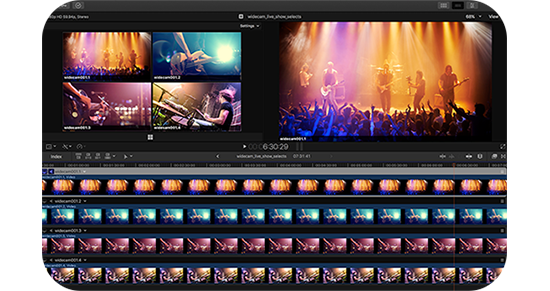

Edit Ready, Independent ProRes Files

Ki Pro Ultra Plus

Timecode Accurate Recordings Multi-Channel recording with Ki Pro Ultra Plus provides individual, discrete recordings for each input that are timecode accurate and ready to be imported directly into a multi-channel editing sequence. No additional conversion or software is required, just drag and drop the files directly from the Pak Media into your edit. The clip naming convention is yours to customize to suit your needs, but each multi-channel file is always appended with .1, .2, .3 or .4, making it very easy to track assets in post.

HDMI 2.0: One Cable, Multiple Formats

Ki Pro Ultra Plus

Deep Rich Colour Capture Full HDMI 2.0 support on Ki Pro Ultra Plus offers deep colour support all the way up to 4:4:4 12-bit RGB, perfect for rich colour capture from affordable HDMI cameras and beautiful playback on the latest HDMI 2.0 displays.

A single cable can affordably transport both UltraHD or HD video and clean 24-bit 48 Hz 8-Channel audio to or from common HDMI 2.0 devices for a simple setup; perfect for independent producers, editors, ProAV, and anyone seeking to utilize the latest affordable capture and monitoring tools.

Dynamic True to Life Colours

Ki Pro Ultra Plus

Wider Colour Pallete HDR provides the ability to display a wider and richer range of colours, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colours to be communicated to your audience.

Ki Pro Ultra Plus provides this support for your 4K/UltraHD/HD HDR pipelines to HDMI compatible displays, in free v2.0 firmware, by generating HDR metadata in accordance with HDMI v2.0a/CTA-861.3. Ki Pro Ultra Plus also provides support for Hybrid Log-Gamma (HLG) HDR displays over HDMI.

ProRes® 422 and 444 Recording

Ki Pro Ultra Plus

Big on quality - but not on file size Ki Pro Ultra Plus records 4K/UltraHD/2K/HD to six quality levels of Apple ProRes® including Apple ProRes 4444 XQ with support up to 2K 50/60p. This lets you choose the balance of image fidelity and file size that’s right for each individual production as well as having the flexibility to record directly to native file formats that are understood by most major editing systems.

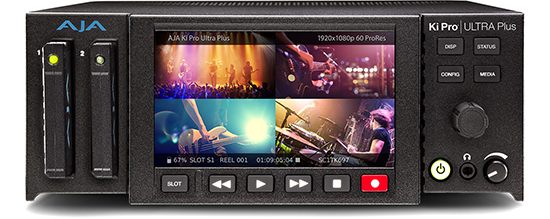

High Resolution LCD with Onscreen Intuitive UI

Ki Pro Ultra Plus

FAMILIAR CONTROLS Ki Pro Ultra Plus features a beautiful high resolution HD display for pristine monitoring of your material and serves as your interface to Ki Pro's familiar and intuitive menu system. The detailed overlay UI includes onscreen keyboard functionality and a clear view of the powerful yet simple to operate UI, all pristinely presented on the 4.8” 720p LCD display.

Just like a traditional tape deck, Ki Pro Ultra Plus features straightforward and dedicated transport buttons - record, play, stop, rewind, fast forward - making the device easy to operate with minimal training time.

Providing Greater Peace of Mind on Set and in the Studio

Ki Pro Ultra Plus

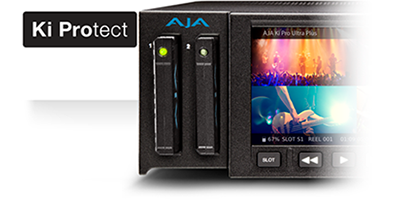

Protect Your Drive Integrity Ki Pro Ultra Plus includes Ki Protect, a feature that helps to ensure data integrity if a media drive is accidentally removed or loses power during recording. The Ki Protect feature automatically pre-allocates recording space on the media drive for video, audio and timecode when the record button is pressed.

exFAT and HFS+ Support

Ki Pro Ultra Plus

wide OS compatibility Ki Pro Ultra Plus allows you to use the file system that suits your needs. Full flexibility is provided to format your recording media as either exFAT or HFS+ within Ki Pro Ultra Plus itself or from your desktop computer, ensuring wide OS compatibility. Pak media can also be ordered in either format for fast implementation upon arrival.

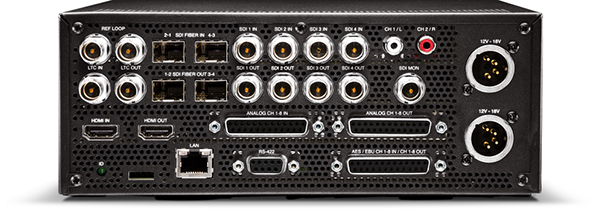

Professional Connectivity

Ki Pro Ultra Plus

Multiple Connections The video and audio connections on the rear panel of the Ki Pro Ultra Plus offer next generation connectivity with 3G-SDI, Fibre and HDMI inputs and outputs, AES and analogue XLR balanced audio, LTC, RS-422 and LAN. Ki Pro Ultra Plus' fully integrated fibre inputs and outputs means Ki Pro Ultra Plus can be integrated directly to a dedicated fibre network alongside many other fibre products. Fibre allows outgoing and incoming video signals to be transmitted as far as 10 km away.

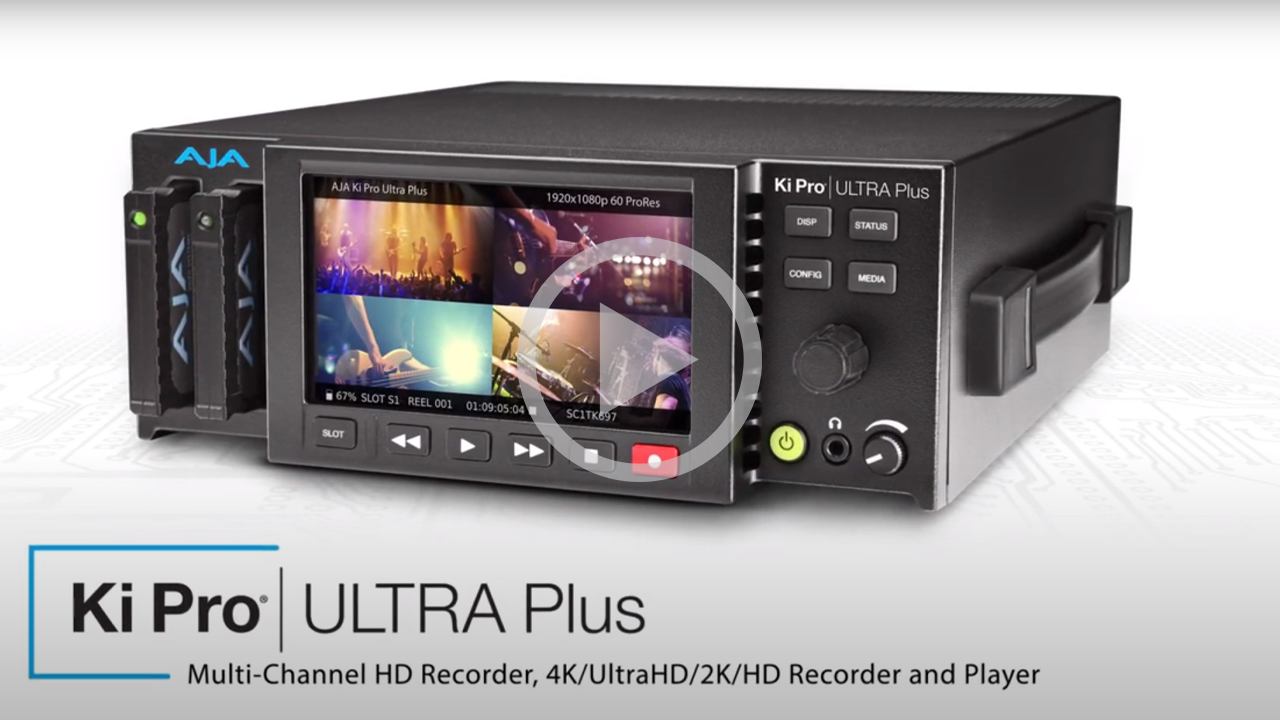

Explore the Ki Pro Ultra Plus Feature Set

Multi Channel recording and the finer detailsLearn how you can record and play back a single channel of 4K, HFR 4K, or record up to four channels of 1080 HD video from one intuitive box using AJA’s portable Ki Pro Ultra Plus. Explore the device’s broad feature set – from HDMI 2.0 connectivity with HDR playback to a dedicated web UI for remote control, the Ki Protect feature to ensure data integrity, a three-year warranty, dedicated support and so much more.

The Tech Spec

Video Formats
Single Channel Mode: (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(4K) 4096 x 2160PsF 23.98, 24, 25, 29.97
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1080i 25, 29.97, 30
(HD) 1080PsF 23.98, 24, 25, 29.97
(HD) 720p 50, 59.94, 60
Multi-Channel Mode: (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1080i 25, 29.97, 30
(HD) 1080PsF 23.98, 24, 25, 29.97
(HD) 720p 50, 59.94, 60
Codec Support
Single Channel Mode: Apple ProRes 4444 XQ, up to 2K/60 fps
Apple ProRes 4444, up to 30 fps
Apple ProRes 422 (HQ)
Apple ProRes 422
Apple ProRes 422 (LT)
Apple ProRes 422 (Proxy)
Avid DNxHD HQX (220x)
Avid DNxHD SQ (145)
Avid DNxHD LB (36)
Avid DNxHR HQX up to 4K/30 fps
Avid DNxHR SQ up to 4K/30 fps
Avid DNxHR LB up to 4K/30 fps
Multi-Channel Mode: Apple ProRes 4444, up to 30 fps
Apple ProRes 422 (HQ)
Apple ProRes 422
Apple ProRes 422 (LT)
Apple ProRes 422 (Proxy)
Coded Container: Apple ProRes .MOV
AVID DNX MXF or .MOV
Removable Storage: 2x slots, AJA SSD media Pak 256, Pak 512, Pak 1000, Pak 2000
Pak-Adapt-eSATA*, Pak-Adapt-CFast
Video Input Digital: 4x 3G-SDI, SMPTE-292/296/424, 10-bit (12-bit input supported)
4x Fiber LC, 3G-SDI, SMPTE-297, 10-bit
4K/UltraHD 4:2:2 or 4:4:4 (4x BNC or Fiber LC)
Dual Link 4:2:2, 4:4:4 (2x BNC or Fiber LC)
Single Link 4:2:2, 4:4:4 (1x BNC or Fiber LC)
1x HDMI standard type A connector
- HDMI v2.0
- 4:4:4 RGB 8/10/12-bit (deep color)
- 4:2:2 YCbCr 8/10/12-bit
- 4:2:0 YCbCr 8-bit
Video Output Digital: 4x 3G-SDI, SMPTE-292/296/424, 10-bit
4x Fiber LC 3G-SDI, SMPTE-297, 10-bit
4K/UltraHD 4:2:2 or 4:4:4 (4x BNC or Fiber LC)
Dual Link 4:2:2 or 4:4:4 (2x BNC or Fiber LC)
Single Link 4:2:2 or 4:4:4 (1x BNC or Fiber LC)
1x HDMI standard type A connector
- HDMI v2.0
- 4:4:4 RGB 8/10/12-bit (deep color)
- 4:2:2 YCbCr 8/10/12-bit
- 4:2:0 YCbCr 8-bit
HDR Infoframe generation as defined in CTA-861.3 and HDMI v2.0a
Audio Input Digital: 16-Channel, 24-bit SDI/Fiber embedded audio, 48 kHz sample rate, synchronous
8-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
8-Channel, AES/EBU via (1/2x DB-25 TASCAM pinout)
Audio Input Analogue: 8-Channel, mappable, 24-bit A/D analog audio, 48 kHz sample rate (1x DB-25 TASCAM Pinout)
+24 dBu full scale digital
+/- 0.2 dB 20 Hz to 20 kHz frequency response
Audio Output Digital: 16-Channel, 24-bit SDI/Fiber embedded audio, 48 kHz sample rate, synchronous
8-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
8-Channel, AES/EBU via (1/2x DB-25 TASCAM pinout)
Audio Output Analogue: Stereo unbalanced headphone jack (1x 3.5mm jack) with volume control
8-Channel, 24-bit D/A analog audio, 48 kHz sample rate (1x DB-25 TASCAM pinout)
2-Channel unbalanced 2 x RCA connectors
Recording Mode: Multi-channel HD Apple ProRes recording (Pak 2000, Pak 1000, Pak 512 (R1), Pak 256 (R1) (R2))
Single channel 4K/UltraHD/2K/HD recording
Playback Mode: One channel of 4K/UltraHD/2K/HD at a time
Timecode: SDI RP188/SMPTE 12M via SDI BNC
LTC input (1x BNC)
LTC output (1x BNC)
Movable TC Super Out
Reference Input: External, 2x BNC
Looping, nonterminating
Blackburst or tri-level sync
Network Interface: 10/100/1000 Ethernet (RJ-45)
Embedded web server for remote control via REST
Video Confidence Monitor via Web Interface
Clip upload/download via Web Interface in DATA-LAN mode
Configuration and Transport Control via WEB Interface
Machine Control: RS-422, 1x DE-9 female connector, Sony 9-pin protocol
User Interface: Rotary selector knob
Dedicated, backlit transport controls and menu buttons
Large 1280 x 720 TFT LCD display with Video Monitor and Menu/Status Overlays
File System Support: HFS+, exFAT
Size (w x d x h): 219.46 x 237.24 x 84.08 mm
Weight: 2.6 kg
Power: Dual, redundant, 5.4A max, 35W-60W typical-65W Max
100-240 VAC 50/60 Hz (adapter)
12-18Vdc 4-pin XLR (chassis)
