AJA - 'Corvid 44 12G BNC'
(Tall Bracket, Fan)

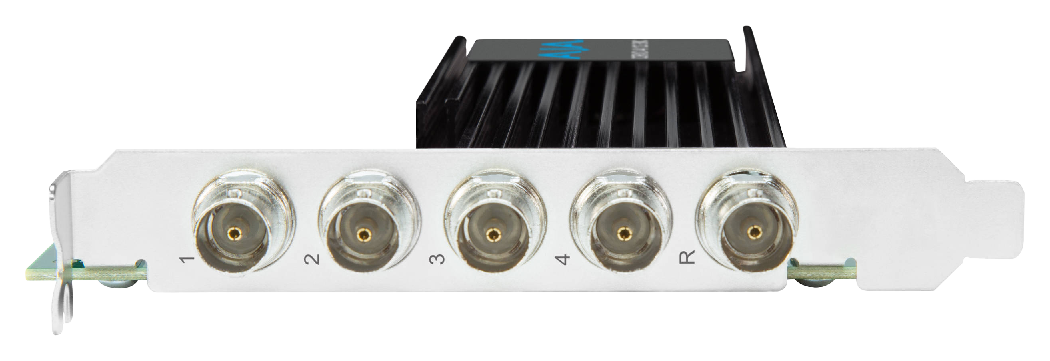

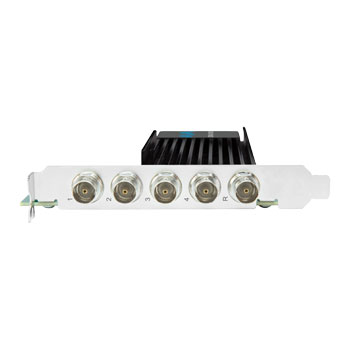

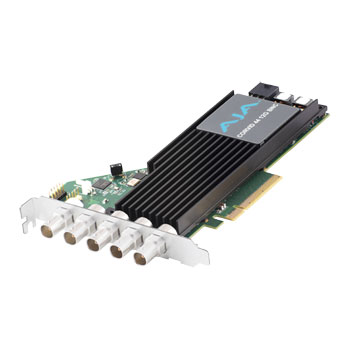

Compact and Powerful 12G-SDI on BNCIntroducing the AJA Corvid 44 12G BNC, with a cutting-edge design setting a new standard. Featuring four bidirectional 12G-SDI spigots accompanied by a Reference Input. This remarkable device allows for 8K Input or Output, effortlessly harnessing the potential of quad 12G-SDI cables. achieve 4K/UltraHD I/O with a single 12G-SDI or 6G-SDI cable, or explore the flexibility of quad 3G-SDI cables. Even 2K/HD I/O can be achieved with a single SDI cable or dual link SDI, all the while enabling seamless capture and monitoring through SDI. This version of the card features a tall outer metal bracket for standard size systems and has a built-in fan on the rear for active cooling.
Key Features
• 8K/UltraHD2/4K/UltraHD/2K/HD/SD, including multi-channel 4K up to 50/60p
• 4x full-size bidirectional 12G-SDI connections with 16-channel embedded audio per connection for a total of 64-channel/32-channel support for 8K workflows
• RGB 4:4:4 12-bit and YCbCr 4:2:2 10-bit HFR workflows supported
• Up to 12-bit LUT support (.cube)
• Dynamic FPGA Firmware Reconfiguration
• 4K Closed Caption Support
• VPID signaling for SDR/HDR Transfer Characteristics, Colourimetry and Luminance via SDI
• PQ, HLG and Dolby Vision Support
• HDR Metadata Capture and Auto Playback Detection
• Ref/LTC input on internal header (Analog black burst or Tri-level)
• RS-422 on internal header
• Active heatsink
• Includes support for Apple silicon
Supports 8K And UltraHD2 High Frame Rate Workflows
Raster and Frame Rate SupportCorvid 44 12G BNC supports 8K (8192 x 4320) and UltraHD2 (7680 x 4320) High Frame Rate (HFR) workflows up to 50/60p for the most demanding applications. Film rates of 23.98, 24, 47.95 and 48p are also supported across 8K, 4K, and 2K.
High frame rates are also available on multiple I/O 4K, UltraHD, 1080p and 720p HD up to 50/60p, making Corvid 44 12G BNC extremely flexible for your current and future needs.
Built-In Hardware Downstream Keyer And Multiple Connections
Hardware KeyingThe built-in hardware downstream keyer allows graphics and images to be easily overlaid on the input video in real time up to 4K.
Reference and LTC InputCorvid 44 12G BNC provides one external, switchable LTC/Reference Input connection on the back of the card.

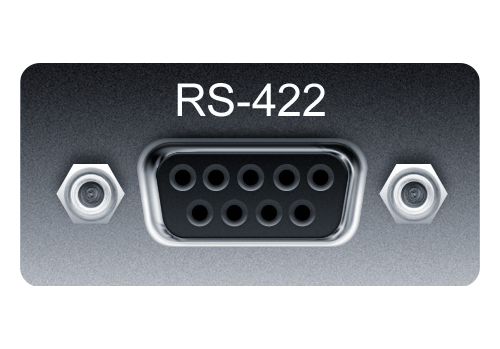

RS-422A built-in RS-422 connection is available as an "internal" connection via a header on Corvid 44 12G BNC. RS-422 allows control of external devices for frame accurate ingest and layoffs.
Industry Leading Support
3 Year WarrantyAJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Corvid installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
Corvid products are covered by a generous three year warranty, including advance replacement as standard.
