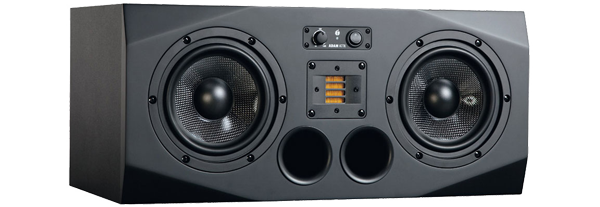

ADAM A77X Nearfield Monitor Speaker (Right)

ADAM A77X 3-Way 2x7" Woofer Nearfield Monitor (Right Single)

Thumbnail 1 : ADAM A77X Nearfield Monitor Speaker (Right) Thumbnail 2 : ADAM A77X Nearfield Monitor Speaker (Right)
Scan code: LN67931 Manufacturer code: A77X
£660.00
FREE DELIVERY ON YOUR ENTIRE BASKET
Order now and get it tomorrow, Tue 21st Sep
From £22.55 / month (APR 14.9%)
Monthly Payment: £59.25
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £660.00
Total inc. interest: £710.99
Monthly Payment: £31.68
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £660.00
Total inc. interest: £760.30
Monthly Payment: £22.55
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £660.00
Total inc. interest: £811.67
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £16.48 / month (APR 15.9%)
Delivery Options
  • By DPD On 21st Sep to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

3-Way Active Studio Monitor
ADAM Audio - 'A77X'
(Right)

ADAM Audio - 'A77X'

German Handmade Precision 'X-ART' TweeterADAM Audio’s A77X is a horizontally designed studio monitor which marries together all the technical fortitude found across the AX-Series. Thanks to its impressive, compression-free sound reproduction and superb radiation characteristics, the A77X is well suited to both nearfield and midfield monitoring.

The jewel in the crown of the A77X is the 2 ½-way system. Each of the 7” woofers begin to work simultaneously at 38Hz and at 400Hz one woofers begins to fade out and just the second woofer continues to operate in the midrange up to 3kHz. This cuts out interferences and potential phase cancellation in that all-important midrange. Although the frequency transitions and possible distortions lay outside these areas, the human ear is particularly sensitive to midrange frequencies.

Perhaps the most noteworthy feature in the A77X is the super wide stereo foundation and immense stereo imaging. Treble and mids are reproduced with incredible three-dimensional realise and the lows are, as you’d rightly expect, enormous without ever compromising on accuracy.

≥122 dBSPL

38Hz - 50kHzFrequency Response

XLR / RCAConnections

at a glance • Optimized for Right Side Orientation
• Dual 7" Horizontally Mounted Drivers
• Single Extended Frequency Tweeter
• Tri-Amplified Design Totaling 250W RMS
• Balanced XLR & Unbalanced RCA Inputs
• Sub-Bass Frequencies Down to 38 Hz
• High SPL Handling

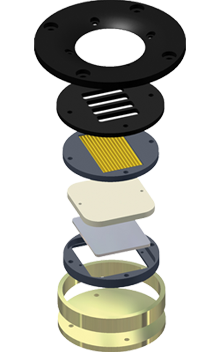

The 'X-ART' Tweeter

ADAM Audio - 'A77X'

neodymium magnetsThe lack of a traditional voice coil in X-ART tweeters results in a very flat impedance. Please note the vertical scaling – in a normal plot, the impedance rise would disappear in the line itself, as it is 1/500 of the normally expected value. Correspondingly, the phase response is extremely flat within ±1.5°.

In summary, X-ART tweeters have a high efficiency (approximately 96 dB/W/m), a perfectly linear impedance (3.9 Ω ±0.21), an equally perfect phase response (±1° within the utilized bandwidth), excellent directivity characteristics and a superb power handling capacity; plus, the neodymium magnets and yoke (ring) utilized in the X-ART units result in perfect magnetic shielding.

A groundbreaking technological innovation with easily discernible superior performance and no technical flaws, the X-ART driver is clearly unequalled in the annals of audio history.

ADAM Audio - A77X Near/Midfield Monitor

3-Way Active Studio MonitorThe multiple award winning ADAM Audio A77X monitors have quickly become a standard among boutique and project studios who have the need for high quality, superior performance and well-priced midfield monitors.

The A77X is a horizontally designed monitor which combines all of the technical innovations of ADAM’s acclaimed AX-Series. With its powerful, compression-free sound reproduction and excellent radiation characteristics, the A77X is suitable both for nearfield and midfield monitoring.

The Tech Spec

Features Specification
Subwoofer Number: 1:1
Basket: 7" (175 mm) / 7" (175 mm)
Voice Coil: 1.5" (38 mm) / 1.5" (38 mm)
Cone Material: Carbon, Rohacell, Glass / Carbon, Rohacell, Glass
Tweeter Type: X-ART x 1
Diaphragm Area: 4"² (2420 mm²)
Equivalent Diaphragm: 2" (56 mm)
Velocity Transform Ratio: 4:1
Diaphragm Weight: 0.006 oz (0.17 g)
Amplifiers Subwoofer: PWM x 2
Amp Power RMS: 100 W
Amp Power Peak: 150 W

Tweeter: A/B x 1
Amp Power RMS: 50 W
Amp Power Peak: 75 W
Control Panel Input Sensitivity: -∞ to +14 dB
High Shelf EQ > 5 kHz: ±6 dB
Low Shelf EQ < 300 Hz: ±6 dB
Tweeter Gain: ±4 dB
Connections Rear XLR / RCA (analog)
Frequency Response 38 Hz - 50 kHz
THD ≤0.5% (90 dB/1 m > 100 Hz)
Output ≥114 dB (long term output)
SPL ≥122 dB
Crossover Frequencies 400 / 3000 Hz
Input Impedance 30 kOhms
Magnetically Shielded No
Warranty 5 years (2 years warranty plus 3 years optional with product registration)
Dimensions (HxWxD) 9.5 x 21 x 11" (236 x 530 x 280 mm)
Weight 28.2 lb (12.8 kg)
Specifications
Speaker Type
Total Wattage (RMS) 250
I/O Connections
  • 1 x RCA In
  • 1 x XLR In
Bass Port
Frequency Response 38Hz - 50kHz
Max SPL 114 dB
Bass Cone Size
Additional Information
Scan Code LN67931
Model Number A77X
GTIN 4260113132135
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details

Additional Notes:
This warranty complements any national/regional law obligations of dealers or national distributors and does not affect your statutory rights as a customer. Neither other transportation, nor any other costs, nor any risk for removal, transportation and installation of products is covered by this warranty. Products whose serial number have been altered, deleted, removed or made illegible are excluded from this warranty.

The warranty will not be applicable in cases other than defects in materials and/or workmanship at the time of purchase and will not be applicable:

for damages caused by incorrect installation, connection or packing,
for damages caused by any use other than correct use described in the user manual,
for damages caused by faulty or unsuitable ancillary equipment,
if repairs or modifications have been executed by an unauthorized person,
for damages caused by accidents, lightning, water, fire heat, public disturbances or any other cause beyond the reasonable control of ADAM Audio.
HOW TO CLAIM REPAIRS UNDER WARRANTY
Should service be required, please contact the ADAM Audio dealer where the product has been purchased.
If the equipment is being used outside the country of purchase, the international shipping costs have to be paid for by the owner of the product. Service may be supplied by your ADAM Audio national distributor in the country of residence. In this case, the service costs have to be paid for by the owner of the product whereas the costs for parts to be repaired or replaced are free of charge. Please visit our website to get the contact details of your local distributor.
To validate your warranty, you will need a copy of your original sales invoice with the date of purchase.
