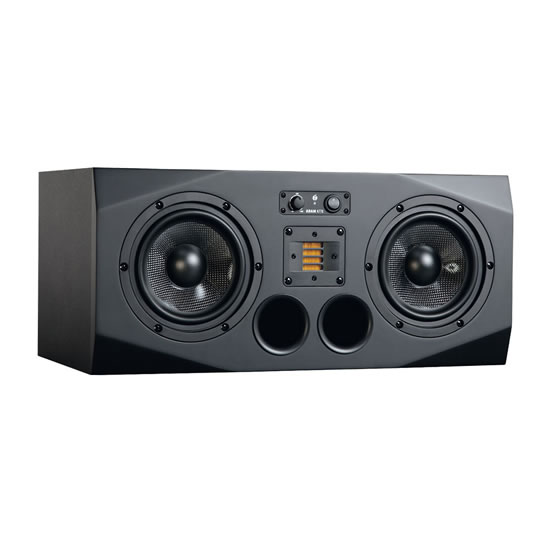

ADAM A77X Nearfield Monitor Speaker (Left)
ADAM A77X 3-Way 2x7" Woofer Nearfield Monitor (Left Single)
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
3-Way Active Studio Monitor
ADAM Audio - 'A77X'
(Left)
German Handmade Precision 'X-ART' TweeterADAM Audio’s A77X is a horizontally designed studio monitor which marries together all the technical fortitude found across the AX-Series. Thanks to its impressive, compression-free sound reproduction and superb radiation characteristics, the A77X is well suited to both nearfield and midfield monitoring.
The jewel in the crown of the A77X is the 2 ½-way system. Each of the 7” woofers begin to work simultaneously at 38Hz and at 400Hz one woofers begins to fade out and just the second woofer continues to operate in the midrange up to 3kHz. This cuts out interferences and potential phase cancellation in that all-important midrange. Although the frequency transitions and possible distortions lay outside these areas, the human ear is particularly sensitive to midrange frequencies.
Perhaps the most noteworthy feature in the A77X is the super wide stereo foundation and immense stereo imaging. Treble and mids are reproduced with incredible three-dimensional realise and the lows are, as you’d rightly expect, enormous without ever compromising on accuracy.
≥122 dBSPL
38Hz - 50kHzFrequency Response
XLR / RCAConnections
at a glance
• Optimized for Center or Left Orientation
• Dual 7" Horizontally Mounted Drivers
• Single Extended Frequency Tweeter
• Tri-Amplified Design Totaling 250W RMS
• Balanced XLR & Unbalanced RCA Inputs
• Sub-Bass Frequencies Down to 38 Hz
• High SPL Handling
The 'X-ART' Tweeter
neodymium magnetsThe lack of a traditional voice coil in X-ART tweeters results in a very flat impedance. Please note the vertical scaling – in a normal plot, the impedance rise would disappear in the line itself, as it is 1/500 of the normally expected value. Correspondingly, the phase response is extremely flat within ±1.5°.
In summary, X-ART tweeters have a high efficiency (approximately 96 dB/W/m), a perfectly linear impedance (3.9 Ω ±0.21), an equally perfect phase response (±1° within the utilized bandwidth), excellent directivity characteristics and a superb power handling capacity; plus, the neodymium magnets and yoke (ring) utilized in the X-ART units result in perfect magnetic shielding.
A groundbreaking technological innovation with easily discernible superior performance and no technical flaws, the X-ART driver is clearly unequalled in the annals of audio history.
ADAM Audio - A77X Near/Midfield Monitor
3-Way Active Studio MonitorThe multiple award winning ADAM Audio A77X monitors have quickly become a standard among boutique and project studios who have the need for high quality, superior performance and well-priced midfield monitors.
The A77X is a horizontally designed monitor which combines all of the technical innovations of ADAM’s acclaimed AX-Series. With its powerful, compression-free sound reproduction and excellent radiation characteristics, the A77X is suitable both for nearfield and midfield monitoring.
The Tech Spec
| Features | Specification | Subwoofer | Number: 1:1 Basket: 7" (175 mm) / 7" (175 mm) Voice Coil: 1.5" (38 mm) / 1.5" (38 mm) Cone Material: Carbon, Rohacell, Glass / Carbon, Rohacell, Glass |
|---|---|
| Tweeter | Type: X-ART x 1 Diaphragm Area: 4"² (2420 mm²) Equivalent Diaphragm: 2" (56 mm) Velocity Transform Ratio: 4:1 Diaphragm Weight: 0.006 oz (0.17 g) |
| Amplifiers | Subwoofer: PWM x 2 Amp Power RMS: 100 W Amp Power Peak: 150 W Tweeter: A/B x 1 Amp Power RMS: 50 W Amp Power Peak: 75 W |
| Control Panel | Input Sensitivity: -∞ to +14 dB High Shelf EQ > 5 kHz: ±6 dB Low Shelf EQ < 300 Hz: ±6 dB Tweeter Gain: ±4 dB |
| Connections | Rear XLR / RCA (analog) |
| Frequency Response | 38 Hz - 50 kHz |
| THD | ≤0.5% (90 dB/1 m > 100 Hz) |
| Output | ≥114 dB (long term output) |
| SPL | ≥122 dB |
| Crossover Frequencies | 400 / 3000 Hz |
| Input Impedance | 30 kOhms |
| Magnetically Shielded | No |
| Dimensions (HxWxD) | 9.5 x 21 x 11" (236 x 530 x 280 mm) |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
| Weight | 28.2 lb (12.8 kg) |
