ADAM A3X 4" Woofer Nearfield Monitor

ADAM A3X 2-Way 4" Woofer Nearfield Monitor (Single)

ADAM Professional Audio
Scan code: LN42815 Manufacturer code: ADAMA3X Request call
£219.00
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Free Delivery Delivery options Free By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

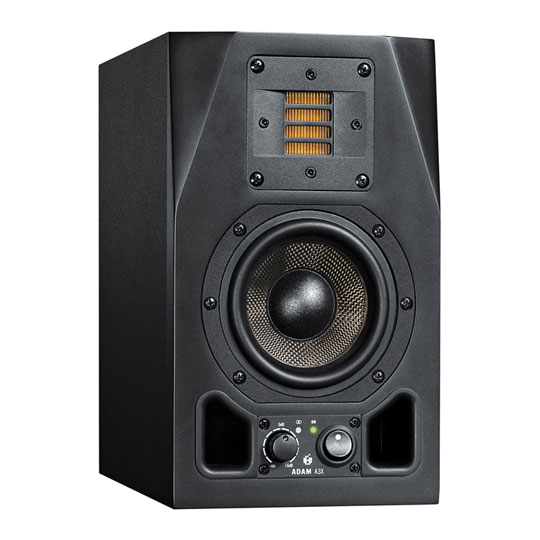

ADAM A3X Nearfield Monitor

Adam Professional Audio Woofer

Adam audio are one of the most respected developers and manufacturers in the music industry. They manufacture a range of Studio monitors that can be found in many top studios as well as 'project' studios the world over. With the A3X, ADAM Audio present their smallest monitor to date, making it perfectly suited for all environments where space is limited but sound shouldn't be constricted. The A3X combines a tiny footprint with the much acclaimed ADAM sound quality by using the X-ART tweeter for the higher frequencies, a guarantee for crystal clear music reproduction it also features a 4.5" (basket) driver that handles the lower registers.

SPECIALLY DESIGNED STUDIO EQUIPMENT

Unlock the Potential of A3X Audio

The diaphragm is made from carbon fiber, a material that is very light but very stiff and therefore capable of delivering colouring-free sound. Two built-in 25 Watt amplifiers power each of the drivers directly. Three-dimensional spatial representation, a controlled, deep bass response and accurate sound reproduction, especially in the critical areas between 200 and 400 Hz, make it the first choice for smaller, even mobile studio setups. With the A3X, analytical listening is possible without taking away musical enjoyment. Its excellent transient response and ability to easly play very dynamic tracks in all musical genres let it clearly stand out from comparable monitors in this price range. The A3X easily meets professional requirements.

EXPERIENCE STEREOLINK

Take Control of Adam Audio

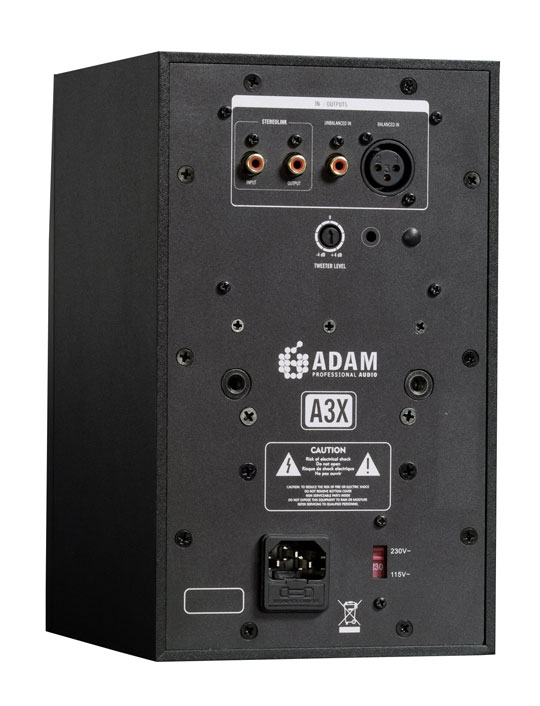

The 'Stereolink' is a useful feature for desktop DAWs, two additional input and output jacks for the second stereo channel allow you to control the volume for both monitors using the volume control of only one loudspeaker. The volume control of the other monitor only affects its own volume in order to easily compensate for differences in listening distance. Unlike the typical master-slave configuration, each A3X monitor is fully equipped and can function either as a master or a slave unit.

*For the best quality sound buy in pairs, and use with ADAM Sub7 Pro Subwoofer

ADAM WOOFER MONITOR SPECIFICATIONS

Mid-Woofer
Number 1
Basket Ø 4.5" (120 mm)
Voice Coil Ø 1" (25 mm)
Cone Material Carbon Fiber

Tweeter
Number 1
Type X-ART
Diaphram Area 4 inch² (2420 mm²)
Equiv. Diaphram Ø 2" (56 mm)
Velocity Transform Ratio 4:1
Diaphram Weight 0.17 g

Built-In Amplifiers
Mid-Woofer 1
Type A/B
Amp. Power (RMS / Music) 25W / 40W
Tweeter 1
Type A/B
Amp. Power (RMS / Music) 25W / 40W

Control Panel
Input Sensitivity -∞ to +14 dB
Tweeter Gain ±4 dB)

Input Connectors
Analog XLR / RCA

General Data
THD 90dB/1m > 100 Hz ≤ 0.8%
Max SPL per Pair at 1m ≥ 106 dB
Crossover Frequencies 2800 Hz
Input Impedance 10 KOhm
Weight 10.1 lb (4.6 kg)
Magnetically Shielded No
Dimensions (W x H x D) 6" (150 mm) x 10" (252 mm) x 7.5" (185 mm)
Warranty 5 Years
Delivery Contents Cinch-Cable, Power Cord, Manual
Specifications
Specifications
Speaker Type Nearfield
Total Wattage (RMS) 50
I/O Connections
  • 2 x Phono In
  • 1 x Phono Out
  • 1 x XLR In
Bass Port Front
Frequency Response 60 Hz - 50 kHz
Max SPL 98 dB
Cone Size 4.5" Inch
