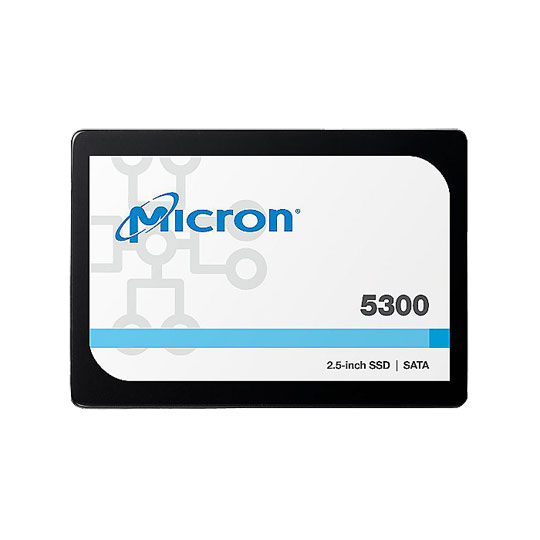

Micron 5300MAX 960GB 2.5” SATA SSD/Solid State Drive

960GB Micron 5300 MAX, 2.5" SSD, SATA III - 6Gb/s, TLC 3D NAND, Read 540MB/s, Write 520MB/s, 95k/75k IOPS

Scan code: LN103758 Manufacturer code: MTFDDAK960TDT-1AW1ZABYY
£249.49Item currently awaiting an ETA
Pre order
From £10.40 / month (APR 0%)
Monthly Payment: £41.59
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £249.49
Total inc. interest: £249.49
Monthly Payment: £20.79
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £249.49
Total inc. interest: £249.49
Monthly Payment: £13.86
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £249.49
Total inc. interest: £249.49
Monthly Payment: £10.40
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £249.49
Total inc. interest: £249.49
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £6.23 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Micron 5300 Series

Built with Micron’s innovative 96-layer 3D TLC NAND, the Micron 5300 series combines the latest in NAND technology and a proven architecture to provide performance upgrades now and a path forward for moving to an all-flash future. The 5300’s high capacity, added security, and enhanced endurance enable strong performance.


The Next Evolution in SATA Leadership

Expand your capability with the industry's first 96-layer 3D TLC NAND in the data center.


Solid Data Security

Secure your data with power-loss protection, and enterprise data path protection along with optional TCG Opal 2.0, TCG Enterprise, and AES 256-bit encryption.


Strong Read-Intensive, Mixed-Use Performance

Optimizations drive strong performance for media streaming, business analytics, OLTP, and block and object storage.


Strong Read-Intensive, Mixed-Use Performance

Micron’s market-leading enterprise SATA SSD options range from 240GB boot drives to high-capacity 8TB SSDs.

Features
• Built upon Micron's innovation in 96-layer 3D TLC NAND, delivering data density with a strong price-performance ratio.
• Maximizes performance for read-intensive and mixed-use segments.
• On-device encryptionFlex Capacity.
• Power loss protection for data at-rest & in-flight.
• Hot pluggable - easy to install.
• U.2 form factor with 7mm height.
• More endurance with a 3 million-hour mean time to failure (MTTF) - 50% longer than the industry average.
• Micron Flex Capacity feature.
Specifications
Capacity 960GB
Edition 5300 MAX
Form Factor 2.5"
Height 7 mm
Interface SATA 3.0 (6Gb/s)
Host Controller Interface
Controller
Flash Memory Type Micron 96-Layer 3D TLC NAND
Max. Read 540 MB/s
Max. Write 520 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 95,000 IOPS
Max. Random Write 4K 75,000 IOPS
Latency N/A
Special Features
  • Adaptive Thermal Monitoring
  • AES 256-bit Encryption
  • Flex Capacity
  • Hot Pluggable
  • Power-Loss Protection (Data-At-Rest)
  • Power-Loss Protection (In-Flight)
  • RAIN
  • Secure Firmware
  • Storage Executive SSD Management Tool
  • TCG Enterprise Configurable
  • TCG Opal Compliant
Power Consumption (active) <3.9W
Max. Endurance Rating 8,760 TBW
MTBF 3,000,000 Hours
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock
Max. Non-operating Shock
Connectivity 1 x SATA 3.0 (6Gb/s)
OS Support
Bracket N/A
Dimensions 69.85 x 7 x 100.45 mm (WxHxD)
Weight 70 g
